Main Instrument Display Panel 2






Fault symptoms
Various malfunctions or none at all.

Diagnostic procedure

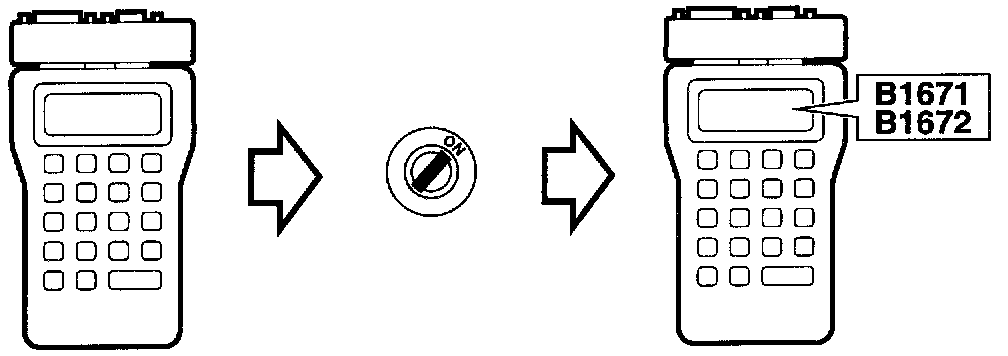

1 Clear the diagnostic trouble code, leave the ignition on for about one minute and check whether the trouble code is generated again.

Read the diagnostic trouble codes in the other systems. Deal with them.
2 Continue fault diagnosis in "Before Changing Control Module".
