B1372

Fig. 15 Code B1327: Wheel Sensor Front Left, Signal Faulty Open Circuit (Part 1 Of 2):

Fig. 15 Code B1327: Wheel Sensor Front Left, Signal Faulty Open Circuit (Part 2 Of 2):

Fault symptom
ABS warning lamp on, no ABS function.

Condition
Fault registered as open-circuit

Diagnostic help
The front left wheel sensor can be read by SAT. Select "READ FUNCTIONS"
- Select "WHEEL SPEEDS"
- The current wheel speed in km/h is displayed.
- If the front assembly of the vehicle is lifted the ISAT should display approx. 5 km/h if the left front wheel is rotated by hand at approx. 1 turn per second.

Diagnostic procedure

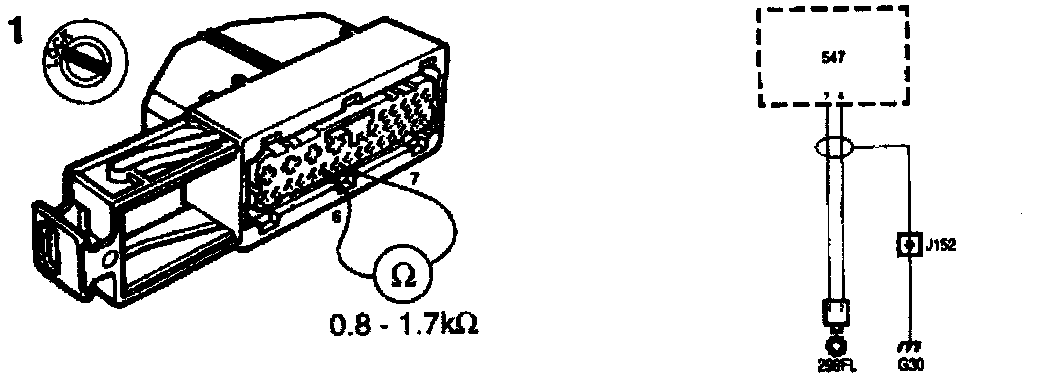

1 Wheel sensor resistance check
- Disconnect the electronic control module connector.
- Take a resistance reading from the electronic control module sensor connector between pin 6 and 7. The resistance should be 0.8-1.7 kOhm

Is the resistance correct?
YES - Cont1nue with point 3.
NO - Continue with point 2.

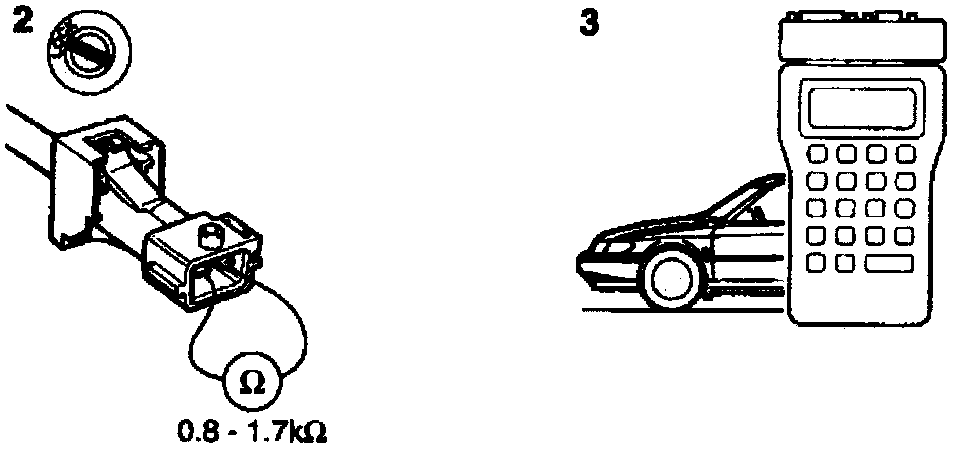

2 Wheel sensor resistance check
- Disconnect the wheel sensors connector (2 pin connector located at the left wheel house in the engine compartment).
- Take a resistance reading in the wheel sensor connector between the two connector pins. The resistance should be O.8-1.7 kOhm

Is the resistance rating correct?
YES - Check and rectify the wiring including the connection between the electronic control module and the wheel sensor connector.
NO - Check end possibly rectify the wiring including the connector to the wheel sensor. If there is no relevant reason for the fault, change the wheel sensor.

3 Final inspection
- Erase the diagnostic trouble code.
- Perform the driving cycle, drive the car at varying loads and engines speeds for 5 minutes.
- Read diagnostic trouble codes.

Is the diagnostic trouble code stored?
YES - Continue Test Procedure Prior To Replacing ECM
NO - The diagnostic procedure taken is right.
