New Essential Special Tools

CATEGORY
Tools

SECTION
1

ISSUE
09/96-0710

PAGE
56

CODE
100

Subject:
New Essential Special Tools

Application:
1997 Models

This bulletin contains information about new essential special tools which have been designed to help troubleshoot 900 and 9000 models.

Parts:

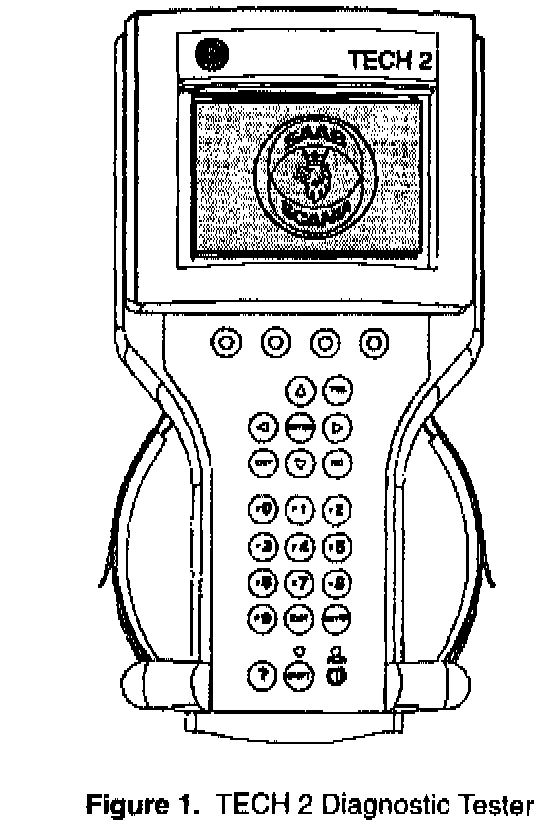

TECH 2 Diagnostic Tester 70 00 085

Price: $1885.00

This tester incorporates many new features including:

^ Processor provides you with information faster
^ Snapshot feature for advanced fault diagnosis
^ Practical and user-friendly
^ Display with extended graphics capability (16 rows of 40 characters)





All necessary internal programming, diagnostic cables and power plug will be delivered in a hard plastic storage case.

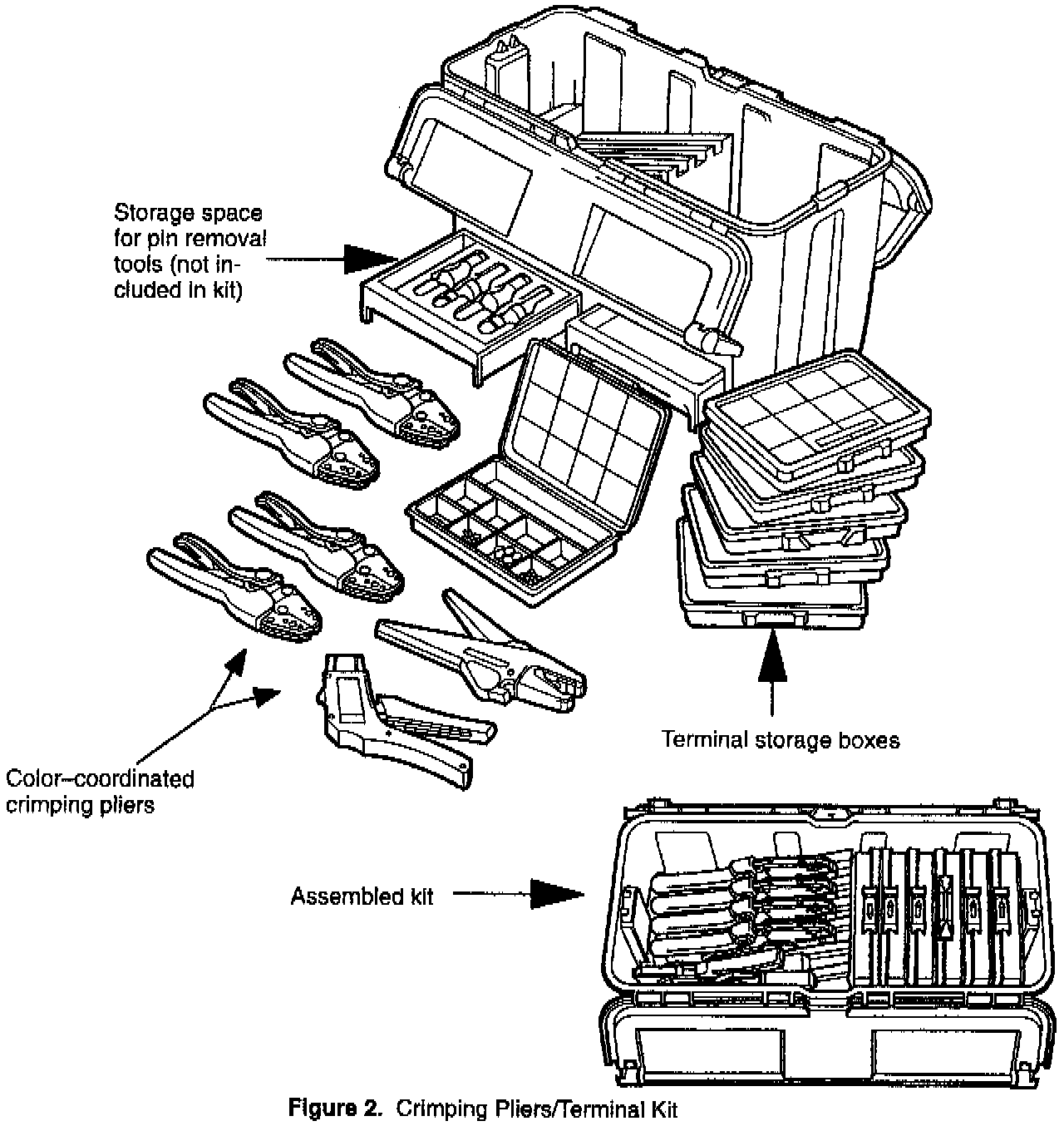

Terminal Repair Kit 86 12 079

Price: Not known at this time - will be provided at a later date





This special kit has been developed to ease the selection of the proper terminal and supply you with the proper crimping pliers. Each plier handle is color-coded to a terminal box so there is no error in selecting the right crimping plier to provide correct crimping depth, etc. (I.E., terminal picked from red box, use red handled pliers.)

All dealers will automatically receive a TECH 2 unit and a Crimping Pliers/Terminal Kit on or about November 15, 1996 from Kent-Moore.
