Maintenance Schedule
CATEGORYMaintenance
SECTION
1
ISSUE
09/96-0708
PAGE
54
CODE
100
Subject:
Maintenance Schedule
Application: 1997 900 and 9000

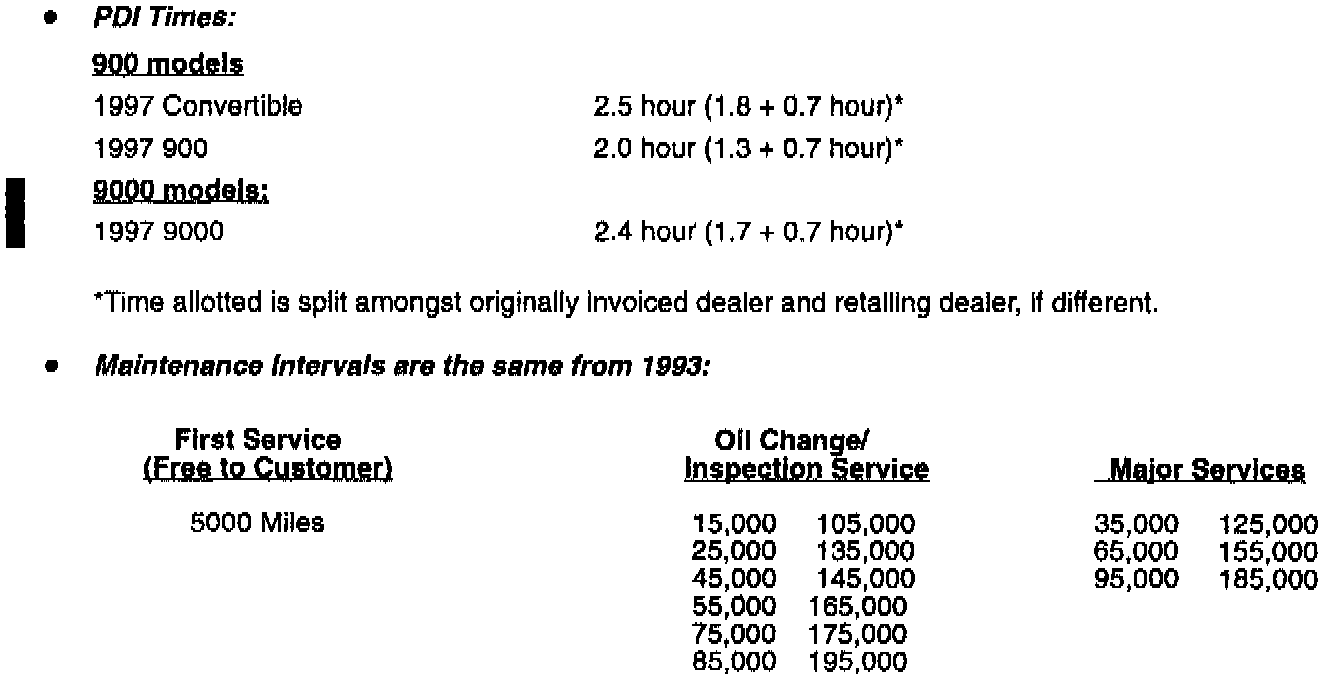

To help you in preparing your Service Menu for 1997 models, listed below are Maintenance Schedule Highlights, indicating any changes for all 1997 models.
** Indicates Changes.
For 1994-1996 models, please see PSI 10/95-0623 in your 1995 PSI Supplement.
^ Changes and/or Additions to Items included in Maintenance Schedule: Automatic Transmission Fluid Change:
900 models: 65,000 miles
9000 models: change fluid and filter at 5,000 miles and every 30,000 miles thereafter
Ventilation Air Filter:
900 models: Change at 15,000 miles and every 10,000 miles thereafter
9000 models: Change at 35,000 miles and every 30,000 miles thereafter
Drive Belts:
**900 and 9000 Camshaft drive belt (V6 engine only): Change at no charge to the customer at 65,000 miles**
900 and 9000 Drive belts; check tension, Poly-V tensioner function and belt condition and replace if necessary: first at 15,000 miles and every 10,000 miles thereafter
**Brake system; pads/linings and parking/brake:
Check and clean rear pads and rear calipers in areas with heavy road salt use.**
Airbag System, SRS warning lamp, visual inspection:
900 and 9000: Check first at 5,000 mile First Service and every 10,000 miles thereafter
Safety Belts; operation and visual inspection of belts for tears or fraying:
900 and 9000 models: Check at 5,000 mile First Service and every 10,000 miles thereafter Wipers; clean glass and wiper blades, check blades:
900 and 9000 models: Check at 5,000 mile First Service and every 10,000 miles thereafter Check and top up washer system:
900 and 9000: Check at 5,000 mile First Service and every 10,000 miles thereafter

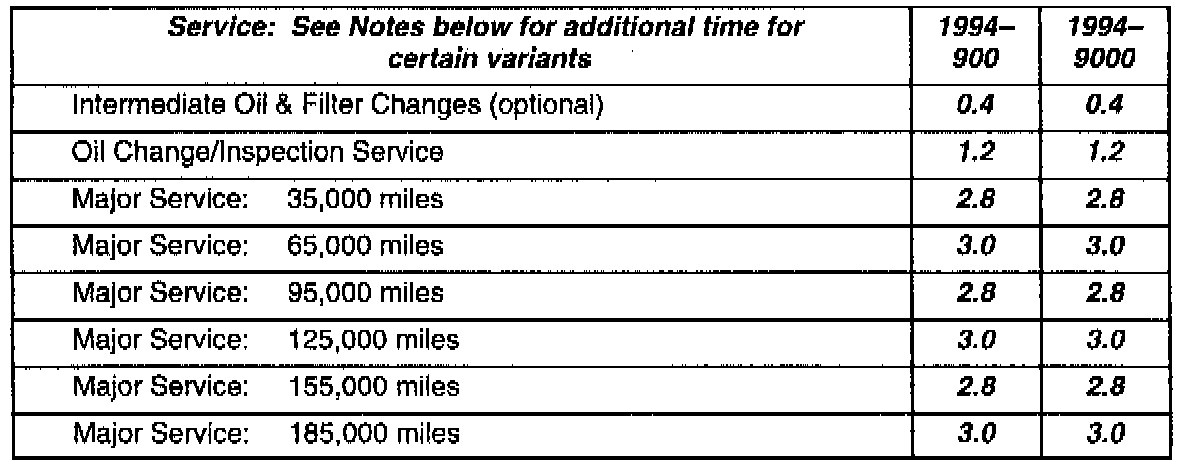

^ Labor Time Schedule:
**Listed are the times you can use in developing a Service Menu for the 1997900 and 9000 models for your Dealership (times for 9000 remain the same from 1993 but for your convenience have been included):**
Additional Times For Certain Variants:
900
Add 0.3 hour for R & R spark plugs on V6 equipped models, when required
Add 0.2 hour to change ATF on automatic transmission equipped models at 65,000 miles
**Add 1.3 hour to R & R camshaft drive belt on V6 equipped models at 65,000 miles**
9000
Add 0.4 hour to change automatic transmission fluid & filter at Major Services
**Add 1.3 hour to R & R camshaft drive belt on V6 equipped models at 65,000 miles**
Other Service Times (applicable when car is in for service):
900
Add 0.3 hour for R & R front brake pads, it needed Add 0.3 hour for R & R rear brake pads, if needed Add 0.6 hour for front toe-in adjustment, if needed
9000
Add 0.3 hour for R & R front brake pads, if needed Add 0.5 hour for A & A rear brake pads, if needed Add 0.6 hour for front toe-in adjustment, if needed Add 0.2 hour for A & R spark plugs (extra change, if needed)
