Valve Spring

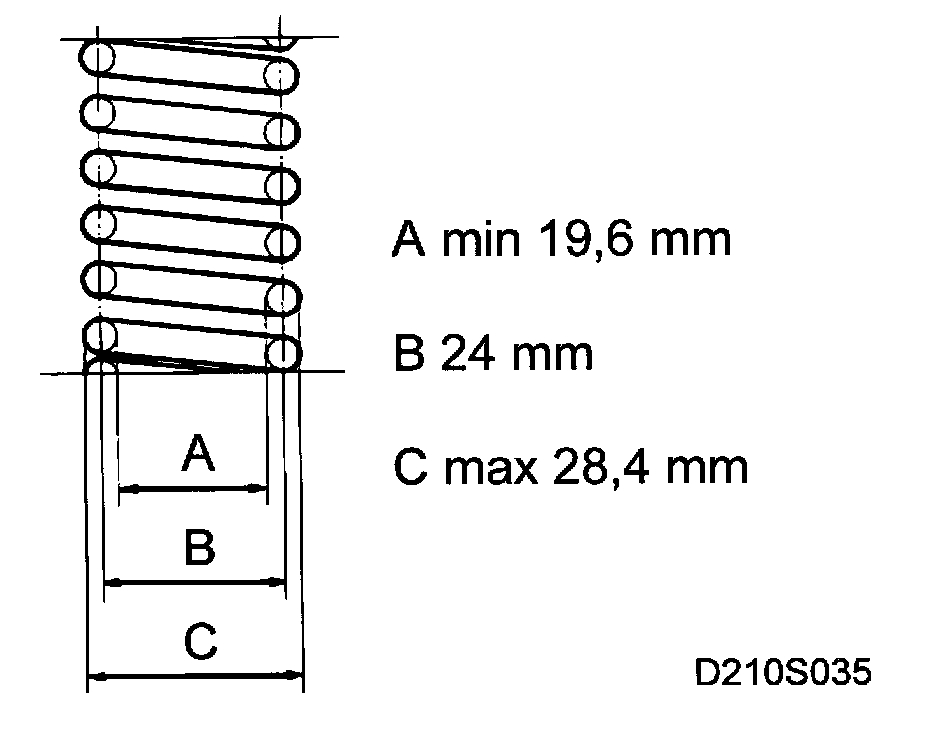

Valve Spring Dimensions:

DIMENSIONS
Installed: 37.0 mm (1.4578 inch)
Free: 44.0-47.0 mm (1.7336-1.8518 inch)
At 620-670 N (138-150 lbs): 28/4 mm (1.1190 inch)
