Cylinder Head Removed

NOTE:

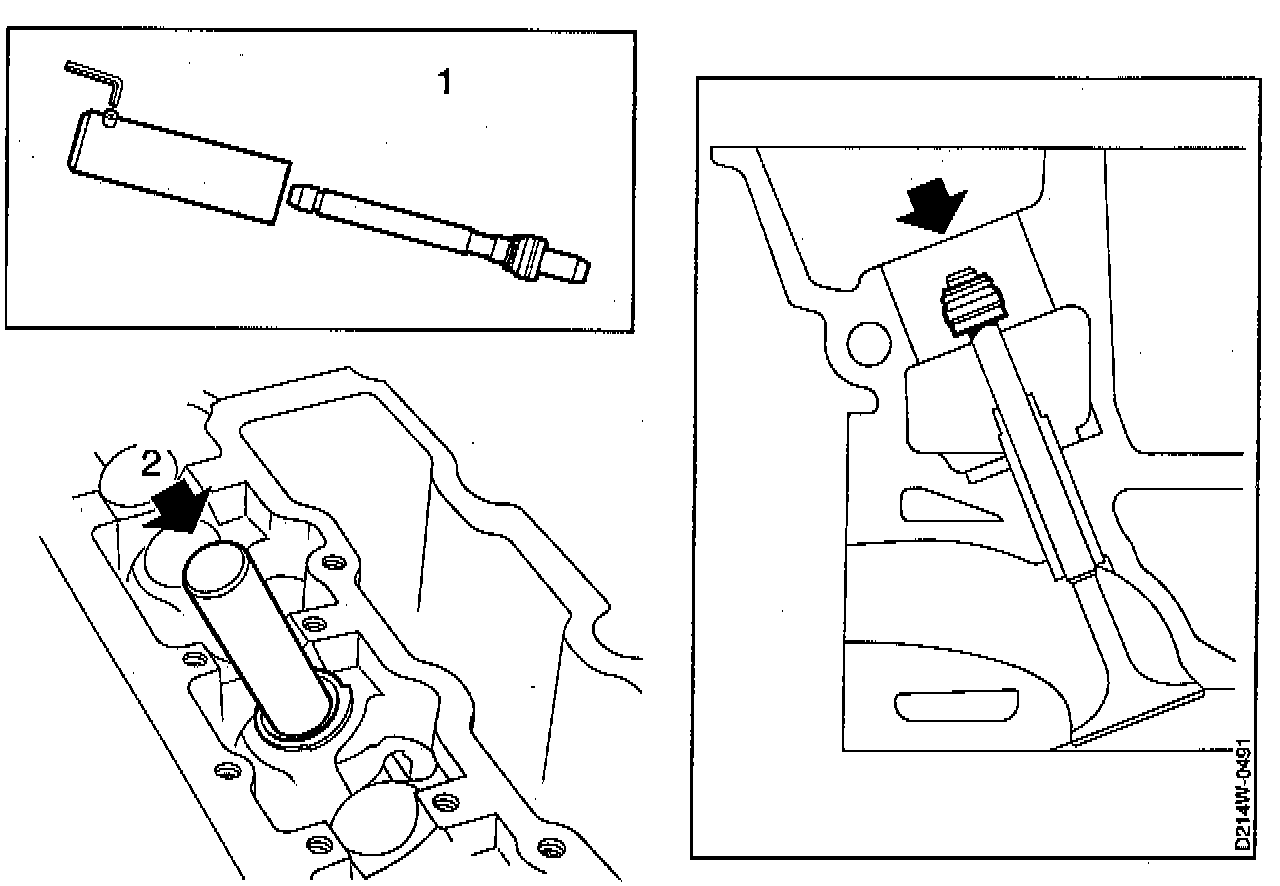

^ Step numbers below refer to numbers used in the illustrations.
^ Cylinder head, camshafts and valve gear removed.

1. Install the seals using seal installer tool No. 83 93 803, or equivalent.
- Place the seal in the tool and then insert the tool in the valve guide.
- If the valve is fitted, use the valve stem as a guide.
2. Tap the seal into position using a plastic mallet.
