Oil Pressure Regulator Valve: Service and Repair

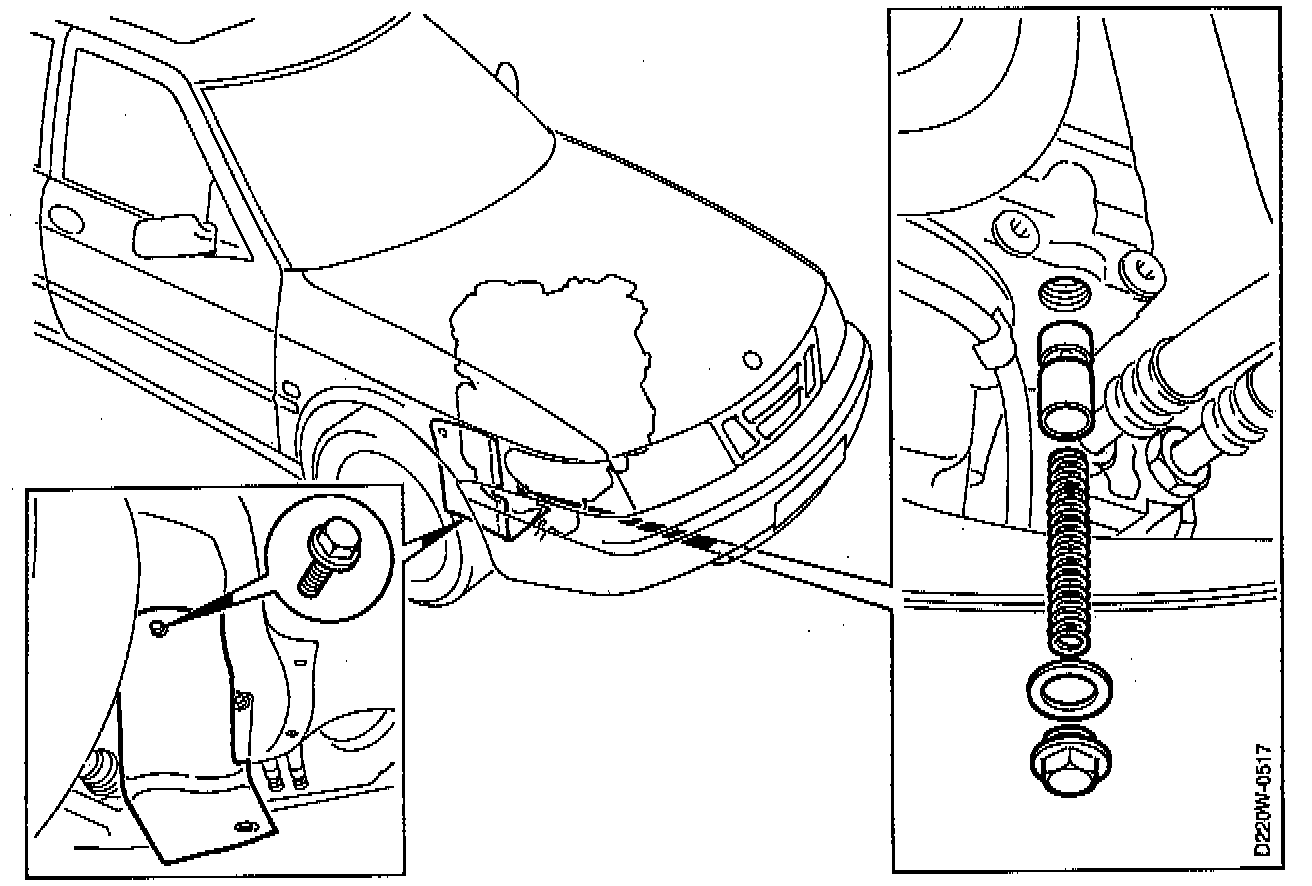

REMOVAL
1. Raise the car and remove the cover.
2. Remove the plug and take out the spring and reducing valve.

INSTALLATION
1. Install the reducing valve and spring.
- Check that the reducing valve is an easy install.
2. Check the seal and sealing face and install the plug, then tighten to: 25 Nm (18.5 ft. lbs.).
3. Install the cover and lower the car to the floor.
4. Check the oil level and top up as necessary.
