Removal

NOTE:

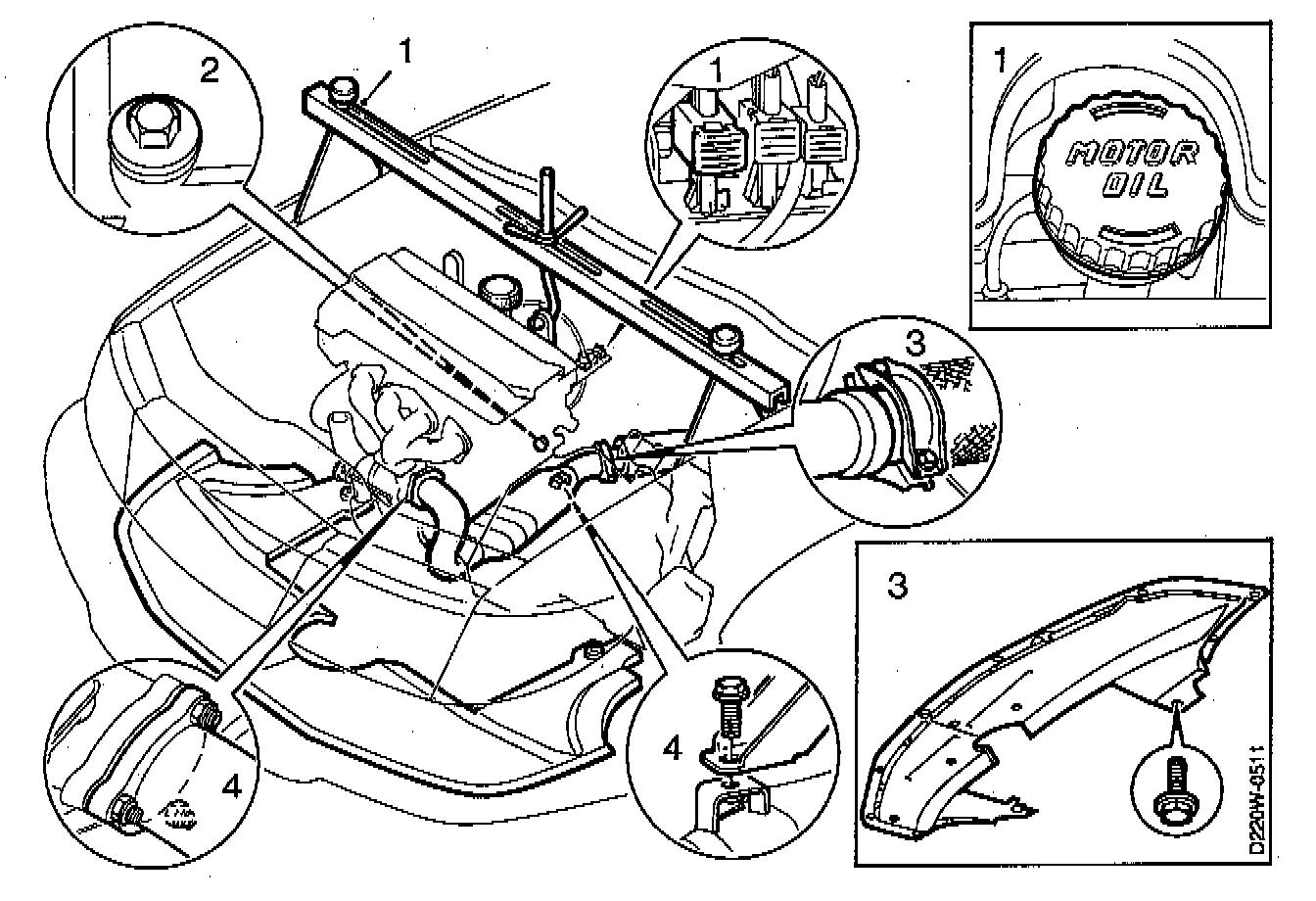

^ Step numbers below refer to numbers used in the illustrations.
^ In vehicle.

1. Remove the dipstick and stuff a cloth into the end of the tube.
- Install lifting beam tool No. 83 94 850, or equivalent, to the engine and raise it slightly.
- Disconnect the oxygen (Lambda) sensor leads, undo the cable clamp and the clip.
2. Raise the-car, drain the oil and position a lifting table under the engine.
3. Remove the front wheels and the spoiler sections.
- Undo the joint between the front exhaust pipe and the intermediate pipe.
4. Unscrew the front exhaust pipe from the turbocharger.
- Remove the catalytic converter from its bracket and remove the exhaust pipe.





5. Remove the end piece, steering swivel member on both sides, and the rear engine mounting. Raise the lifting table, undo the other bolts and remove the sub-frame.
6. Unplug the oil level sensor connector and pull the cable out of its clamps.
7. Remove the protective plate and oil pan. Do not remove the guide sleeve from the cylinder block.
- Wipe off all surplus oil.
