Ignition Coil: Service and Repair

To Remove

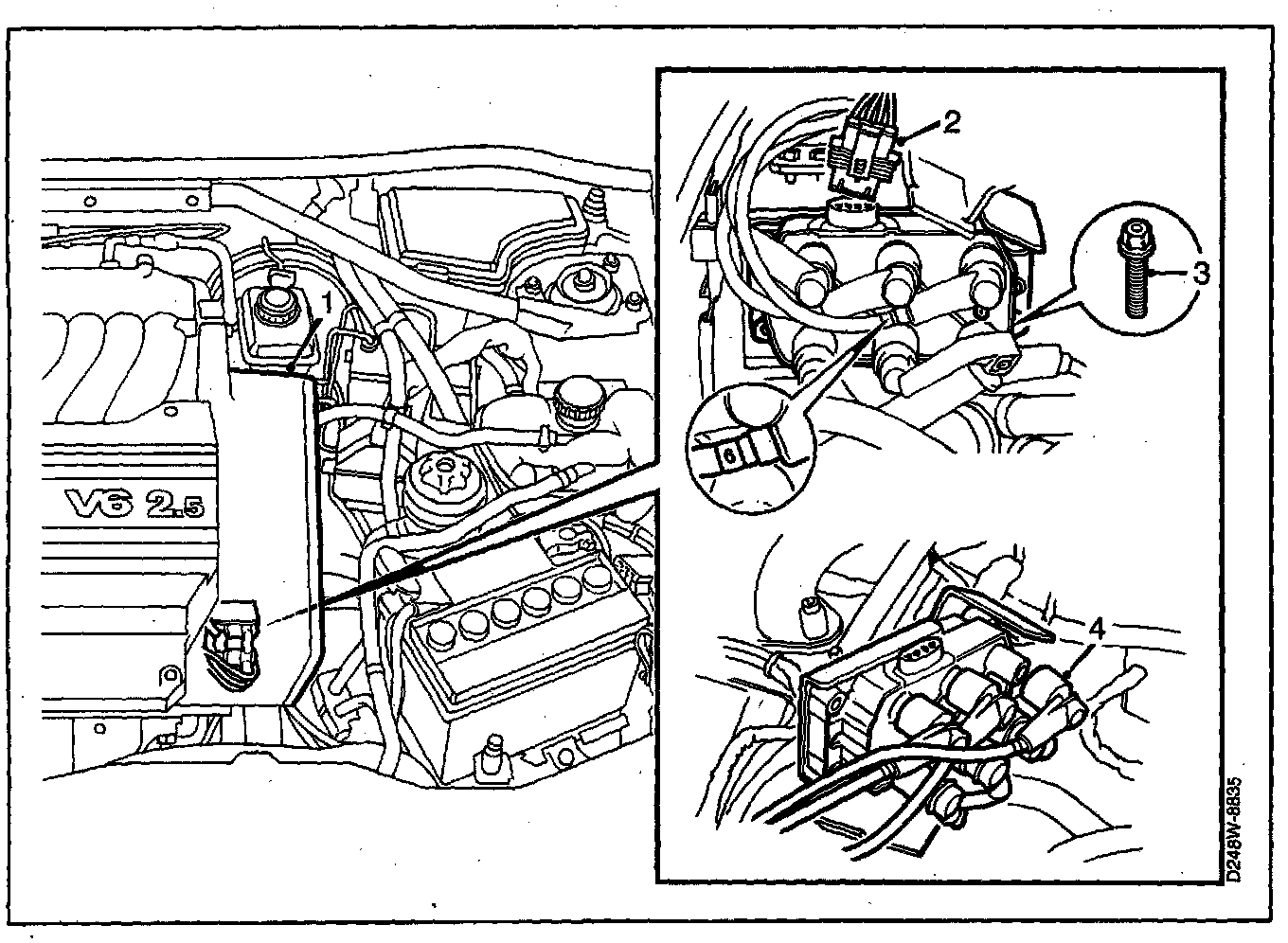

1. Remove the engine covers.
2. Unplug the connector at the top.
3. Remove the four bolts securing the ignition coil module and remove the module.
4. Disconnect the HT leads.

To Install
Install in reverse order.

IMPORTANT: Be sure to check the positions of the HT leads.
