Oil Pressure Relief Valve

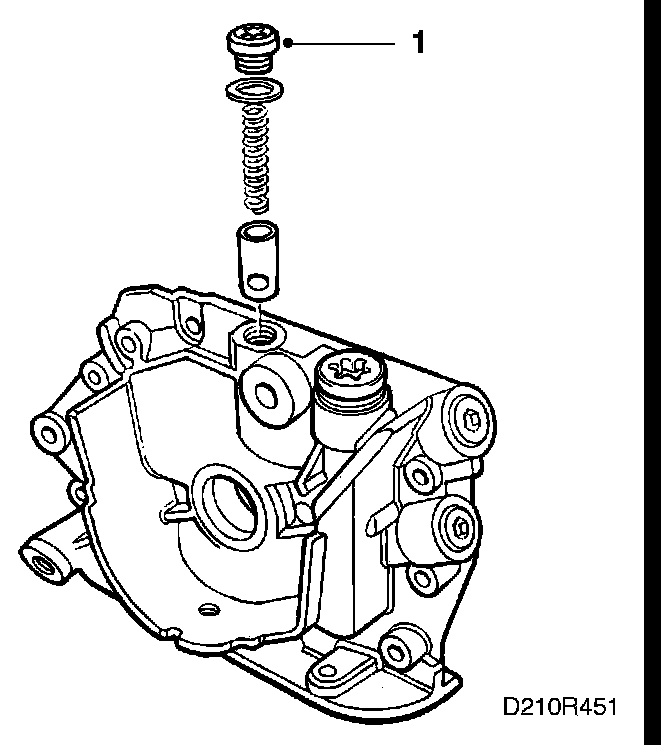

Oil pressure relief valve

(Oil pump removed)

To remove




1. Remove the bolt and lift up the spring and valve. Use magnetic tool 83 91 401.


To fit

1. Fit the valve and the spring and tighten the bolt.

Tightening torques
28 Nm (21 lbf ft) copper gasket
20 Nm (15 lbf ft) aluminium gasket.
