Extended Length Safety Belt - Availability

Category
Body

Section
8

Page
117

Issue
05/95-0585

Code
853

Subject:
Availability of Extended Length Safety Belts

** Changes are noted by double asterisks. **

Application:
1988-1993 only 900 Convertibles,
1988-9000 Models
** 1995-900 Models, 1995 Convertibles
above VIN Serial No. S7010000 **

Supersedes 12/92-0290

** For those customers whose body size results in their not being able to buckle the original equipment safety belt and reach the instrument panel controls while in their normal seating position, extended length safety belts are available for an expanded range of vehicles. See detailed information below. **

Note and advise the vehicle owner:
These safety belts should only be fitted when absolutely necessary and re quested for use only by a specific customer. The OE specified belt should be used in all other circumstances in order to provide the best protection for most occupants. Advise the owner to have the OE belt(s) reinstalled prior to selling the car. The owner must sign a special order form. See sample at the end of this bulletin.

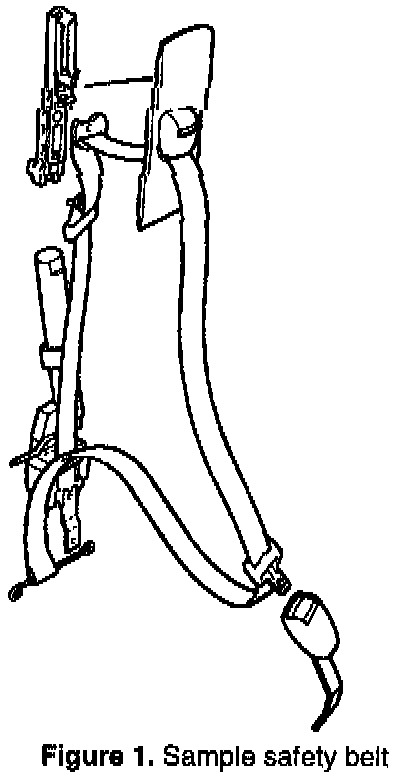

The extended length 9000 belts are only available with the pretensioner device. See Figure 1. 1989-91 9000's equipped with driver air bag are not provided with pretensioner circuitry for the left front seat. An extended length belt may be installed in such a vehicle, however, the pretensioner will not be connected and will not activate in a crash. In cases where the OE belt has a pretensioning device, the device in the replacement belt should always be connected to ensure proper function.

Cars Affected:
1988-1993 900 Convertibles Only
1988-9000 (All)
1995-900 models; 1995 900 Convertible models above VIN Serial No. S7010000

Parts for 1988-900 Convertible only, 1988-9000 (All):

9000 Pretensioner Belt, Elec. seat LH 42 91 878
9000 Pretensioner Belt, Elec. seat RH 42 91 886
Stalk* 40 32 454
9000 Pretensioner Belt, Man. seat LH 42 91 894
9000 Pretensioner Belt, Man. seat RH 42 91 902
Stalk* 40 32 439
900 Convertible Belt LH 96 99 752
900 Convertible Belt RH 96 99 760
Stalk LH* 40 77 616
Stalk RH* 40 77 632

* Required on 1988-89 cars to conform to later style buckle configuration on replacement belt.

** For 1995-900 models, 1995 900 Convertibles above VIN Serial No. S7010000:

Driver's side, 5-door 46 54 257
Passenger's side, 5-door 46 54 265
Driver's side, 3-door 46 54 273
Passenger's side, 3-door 46 54 281
Driver's side, Convertible 46 54 299
Passenger's side, Convertible 46 54 307

NOTE:
Due to the relatively small volume of 900 vehicles produced in 1994 with mechanical pre-tensioners, extended safety belts cannot be fitted to these models and will not be made available. **

Action:

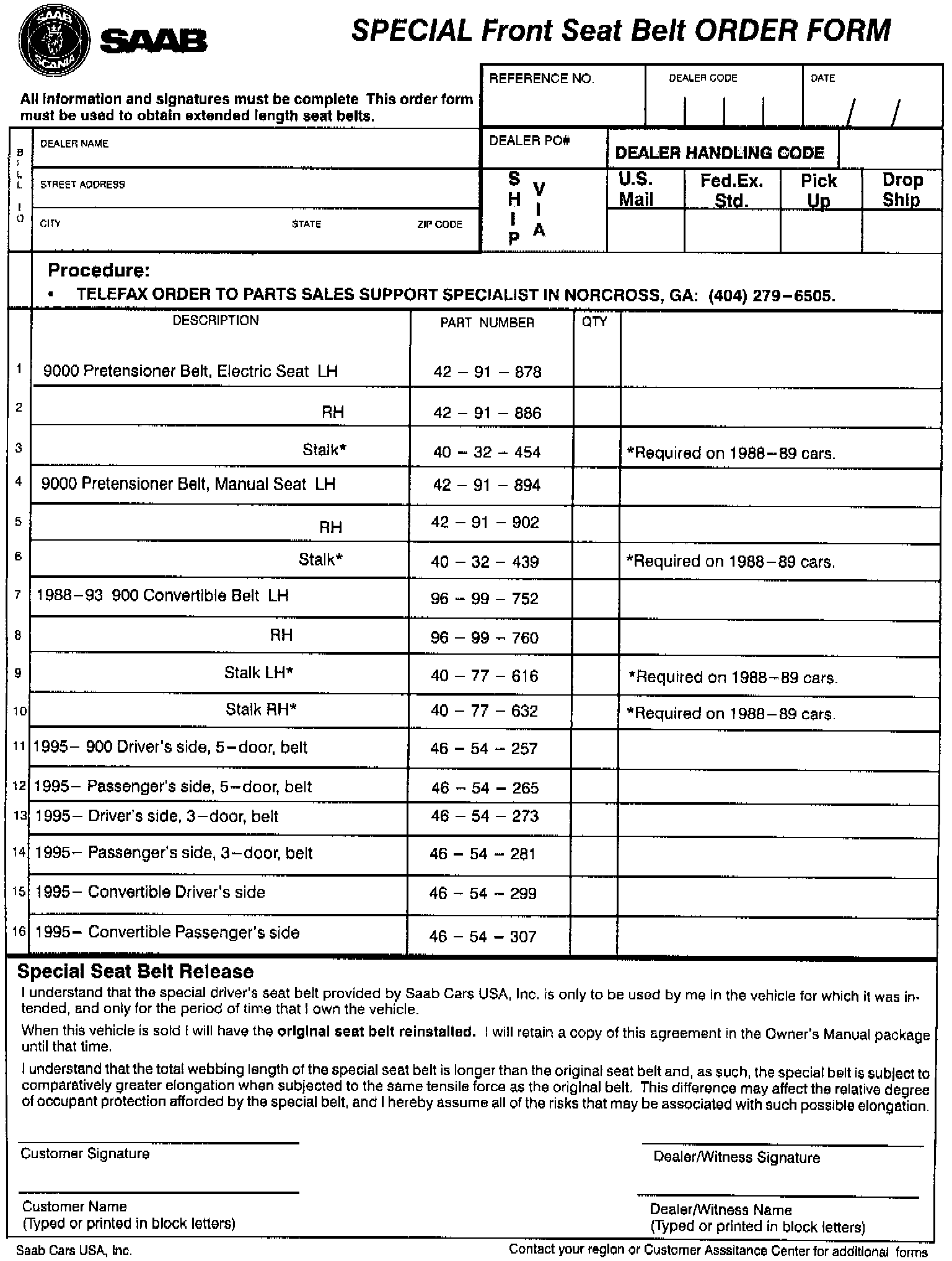

Replace original safety belt with extended belt following directions found in Service Manual 8:2 Interior equipment. See illustration for sample owner release/order form.
