Leak Detection Solenoid: Service and Repair

To Remove

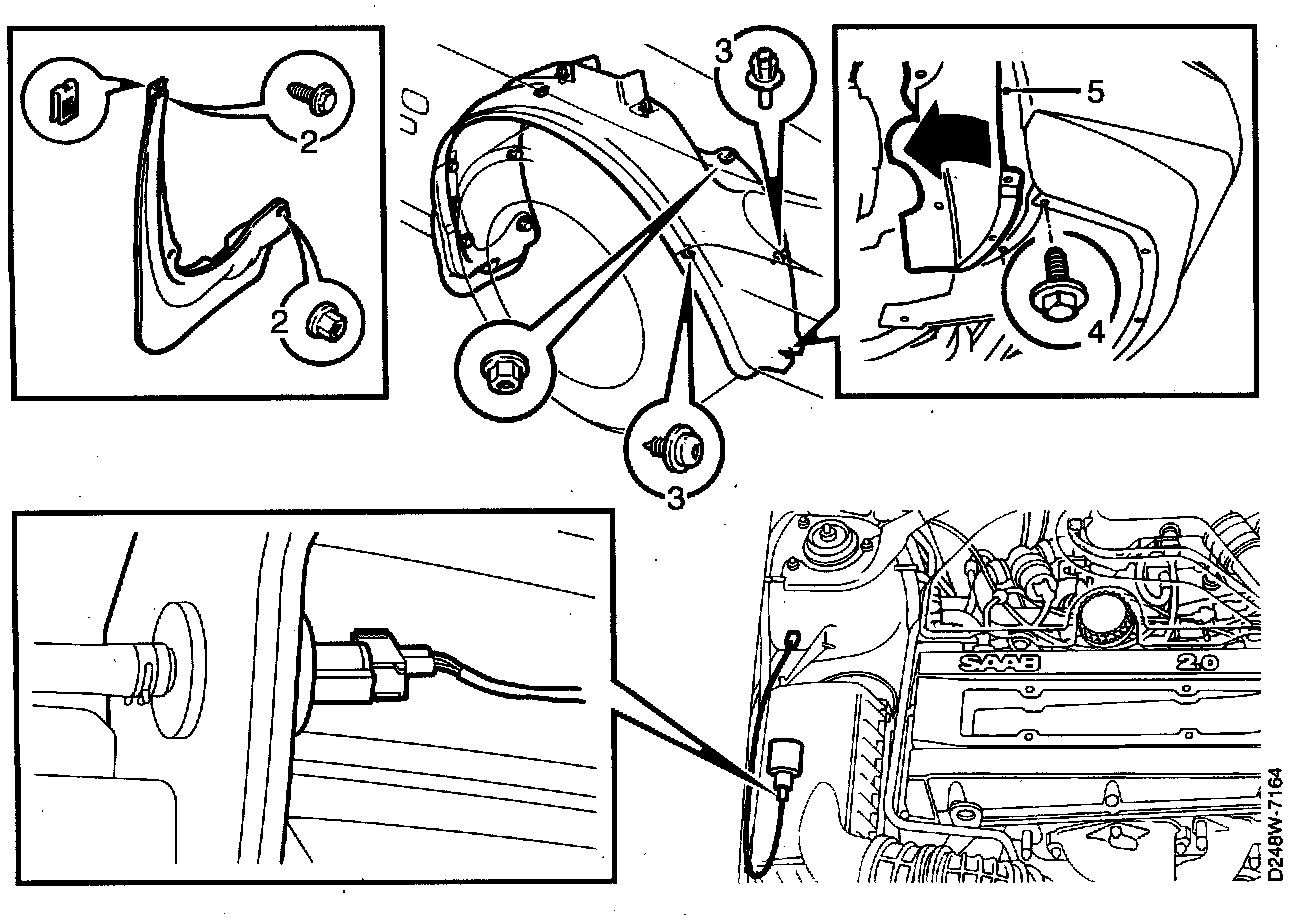

1. Raise the car and remove the RH front wheel.
2. Remove the splash guard.
3. Remove the wing liner.

NOTE: Remove the rivets by pressing in the centre pin, using a pin punch.

4. Remove the screw securing the front of the wing liner to the air deflector and the screw securing the wing liner to the bumper.
5. Remove the wing liner's snap fastener from the front wing by means of a screwdriver and remove the wing liner from the wheel housing.

IMPORTANT: Take care when removing the wing liner to avoid damaging the paint work.

6. Remove the shut-of valve.

To Install
Install in reverse order.
