Automatic Climate Control

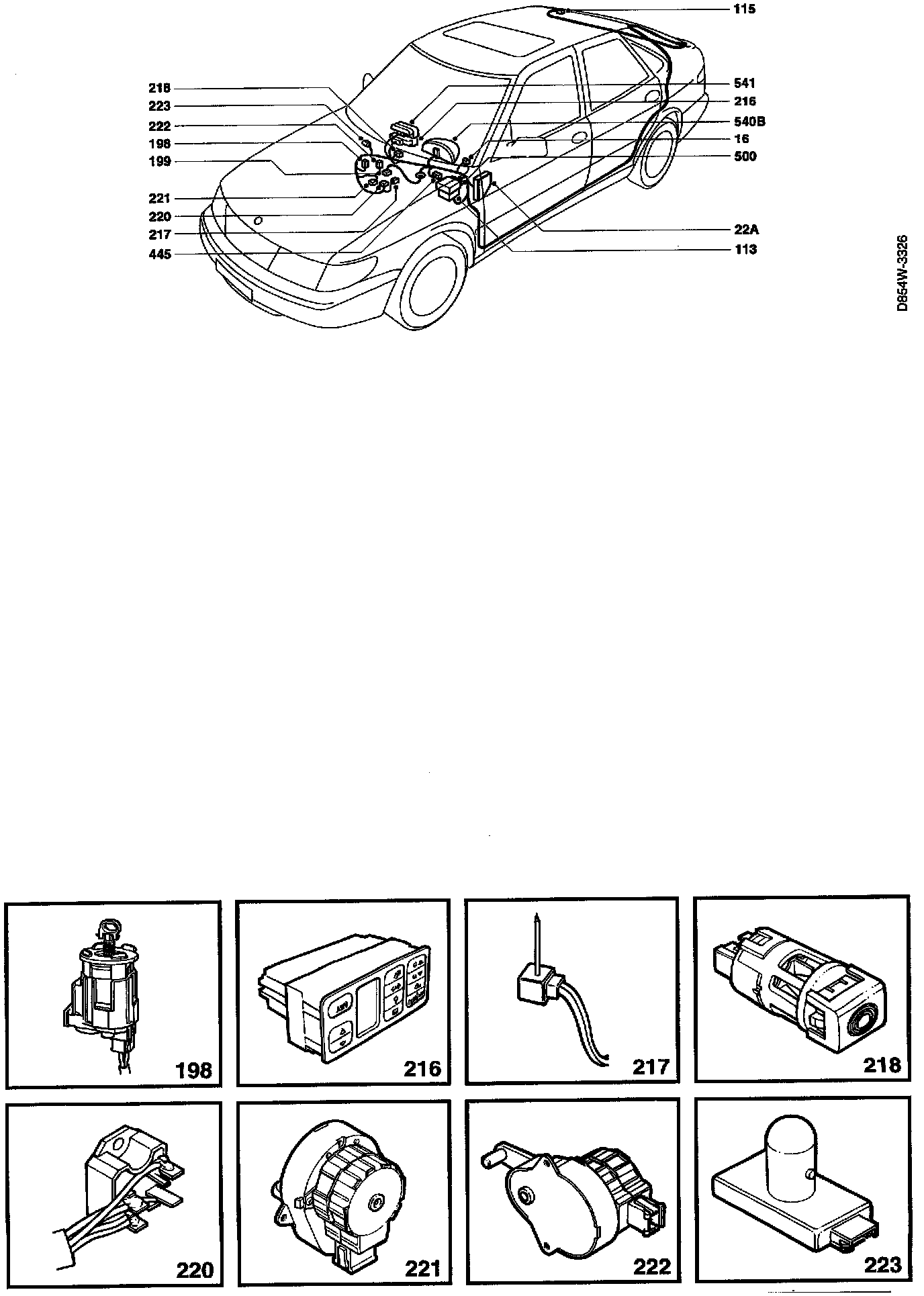

Automatic Climate Control, ACC - Component Location:

16 Instrument lighting rheostat, in switch assembly between the steering wheel and driver's door.
20 Ignition switch on centre console between the front seats.
22A Main fuse board in the dashboard.
113 Relay, electrically heated rear window, on main relay board in dashboard.
115 Electrically heated rear window
198 Motor, recirculation flap, on the evaporator housing behind the glove box.
199 Motor, ventilation fan, in the centre between the bulkhead partitions.
216 ACC control module in centre of dashboard.
217 Blended air temperature sensor on the heater housing's duct leading to the right-hand front floor vent.
218 Cabin temperature sensor in switch as- 219 assembly on centre console.
220 Ventilation fan speed control on right- hand side of evaporator.
221 Motor, air blending flap, on heating and ventilation unit behind the centre console.
222 Motor, air blending flap, on end of heating and ventilation unit behind the centre console side panel on the passenger side.
223 Solar sensor, on the top of the dashboard in the centre.
445 Data link connector under the dash board adjacent to the steering column.
(H16-1)
500 ICE control module
LHD:above main relay board in dashboard
RHD:behind main relay board in dashboard
540 Main instrument display panel on the dashboard.
541 SID unit in centre of dashboard.

8-pin connector
H8-1 Adjacent to the fan speed control.

10-pin connector
H10-5 On heater housing.

Grounding Points
G3 Grounding point, luggage compartment, below left-hand rear light cluster.
G33P Grounding point, control module bracket (Power) below the right-hand A pillar.
G34P Grounding point, control module bracket (Power) below the right-hand A pillar.
