Heater Housing, Installation

1. Position the heater box in place.

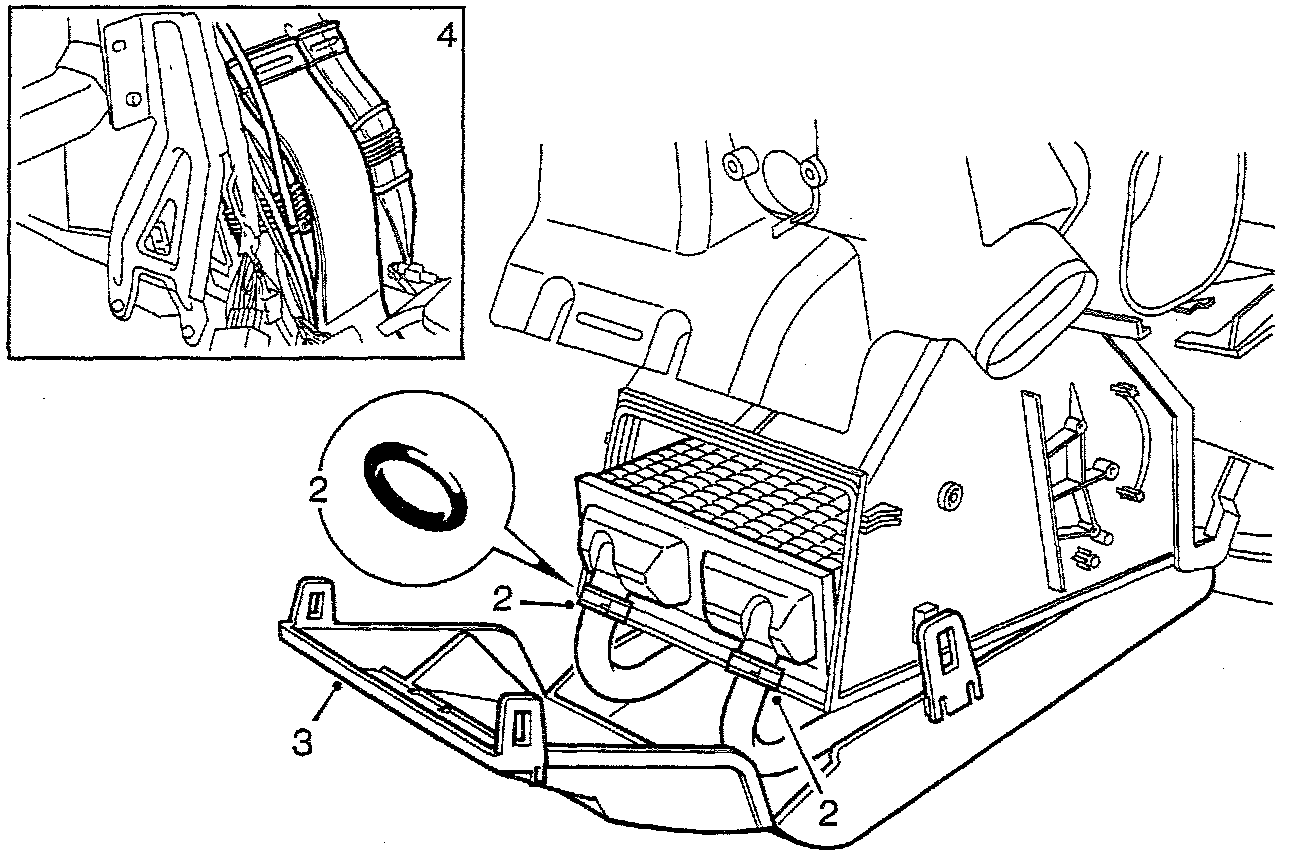

2. Check that the 0-rings are in place and that they are undamaged. Refit the hoses and secure them with the clips.
3. Close the heater-box housing enclosure.
4. Refit the rear air ducts on the floor and secure them with a cable tie. Carry out the following operations:
- Refit the center console.
- Refit the ACC control unit.
- Refit the switches for the window lifts.
- Refit the rear part of the center console.
- Refit the rear air vent and cover.
- Refit the rear ashtray.
- Refit the cover round the ignition switch.
- Refit the panels on both sides of the centre console.
- Refit the glove box.

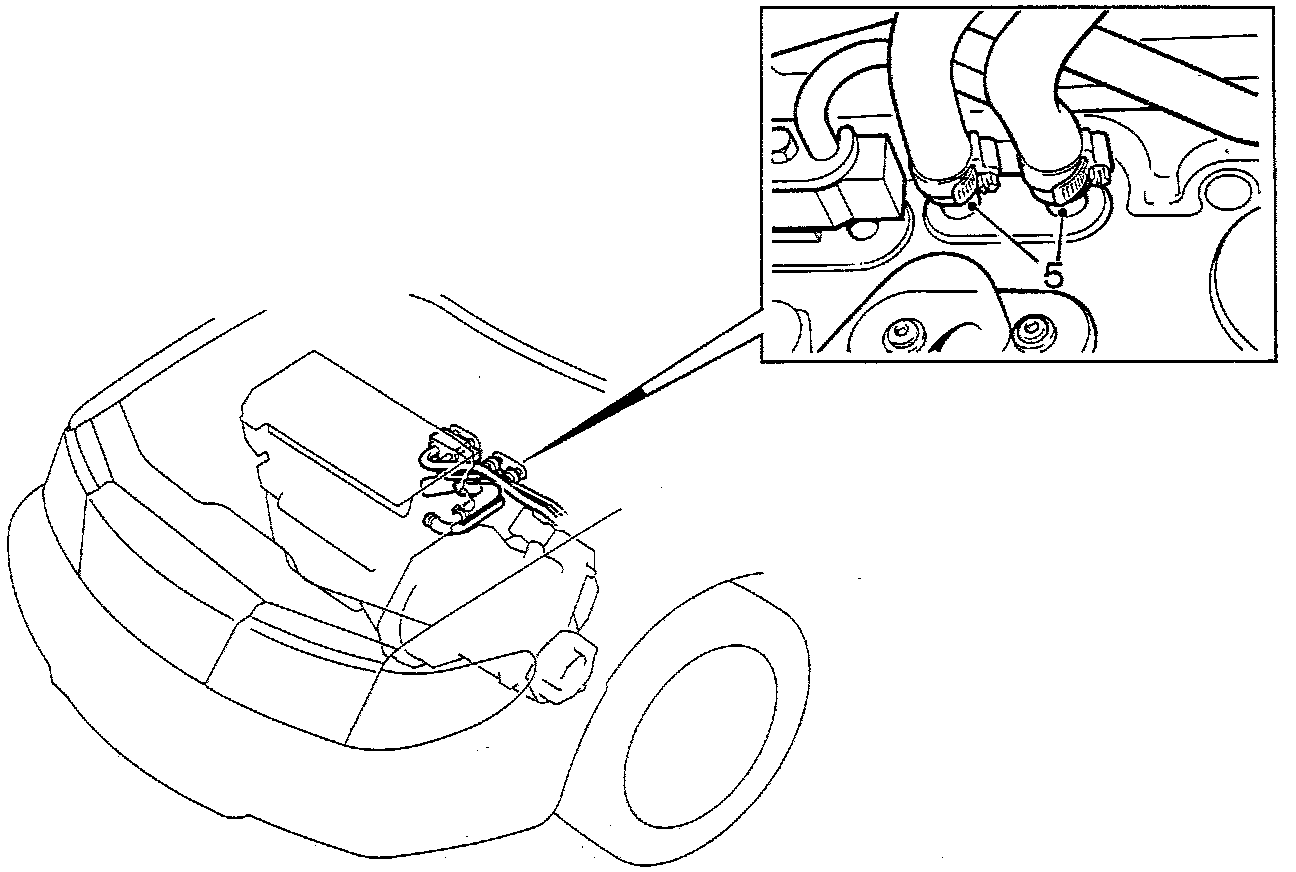

5. Refit the coolant hoses on the heater box and tighten the hose clips.
6. Fill up with coolant.
