Home >> Saab >> 1996 >> 900 SE Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Diagrams >> Splices >> Connection J29 to J44

Connection J29 to J44

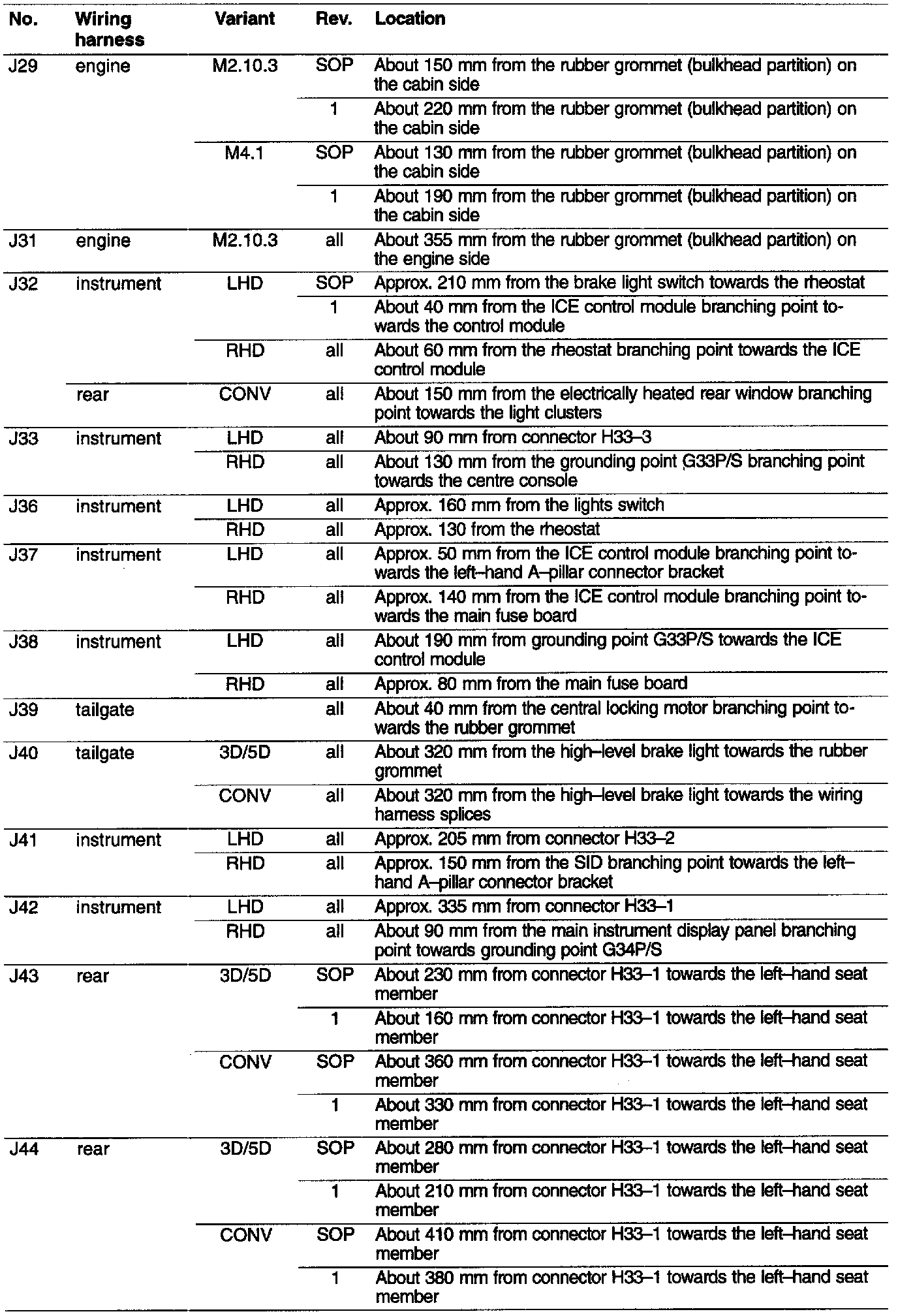

Crimp Connection Location:
