Home >> Saab >> 1996 >> 900 SE Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Diagrams >> Splices >> Connection H4-9 to H6-8

Connection H4-9 to H6-8

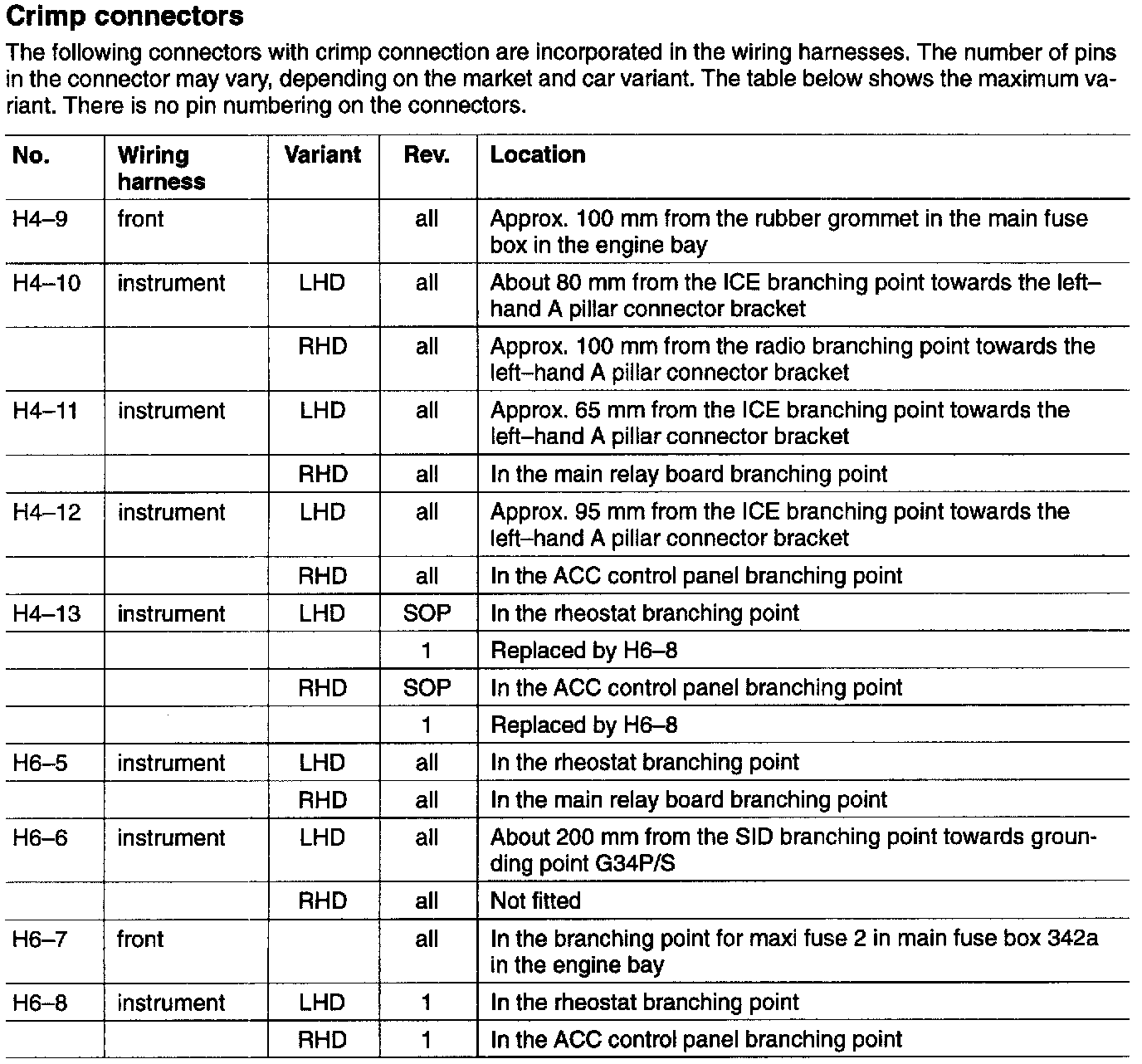

Crimp Connection Location:
