Power Mirror Motor: Service and Repair

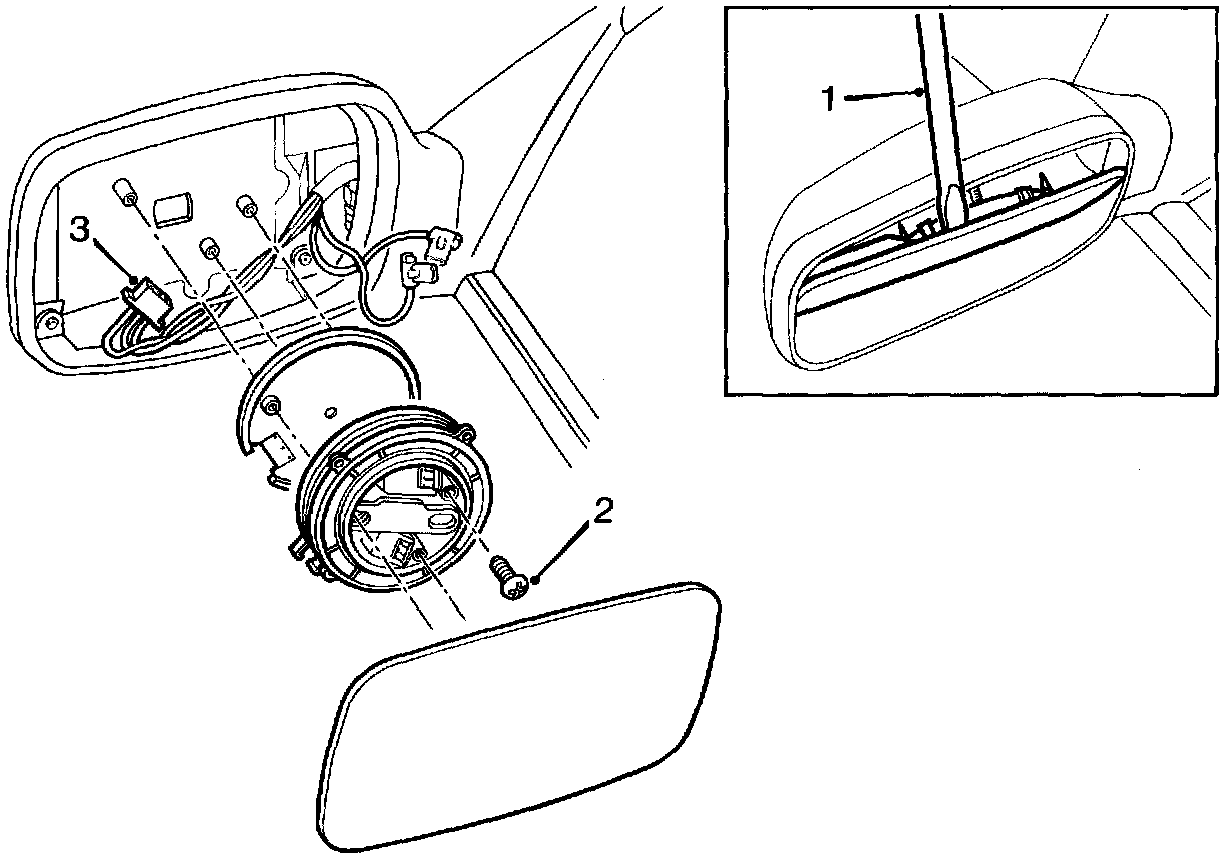

1 Pry the mirror glass loose, using a large screw-driver.
2 Remove the screws securing the electric motor.
3 Unplug the connector from the motor.
4 Install in reverse order.

Retractable door mirror
Cars for certain markets also have a switch for retracting the door mirrors.
- The relay is mounted on a bracket under the left-hand front seat.
- The switch is located on the driver's door beside the other switches for the door mirrors.
