900 SE Convertible L4-1985cc 2.0L DOHC Turbo EFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Radiator Cooling Fan Motor
>>
DTC 1417 & 1422
DTC 1417 & 1422

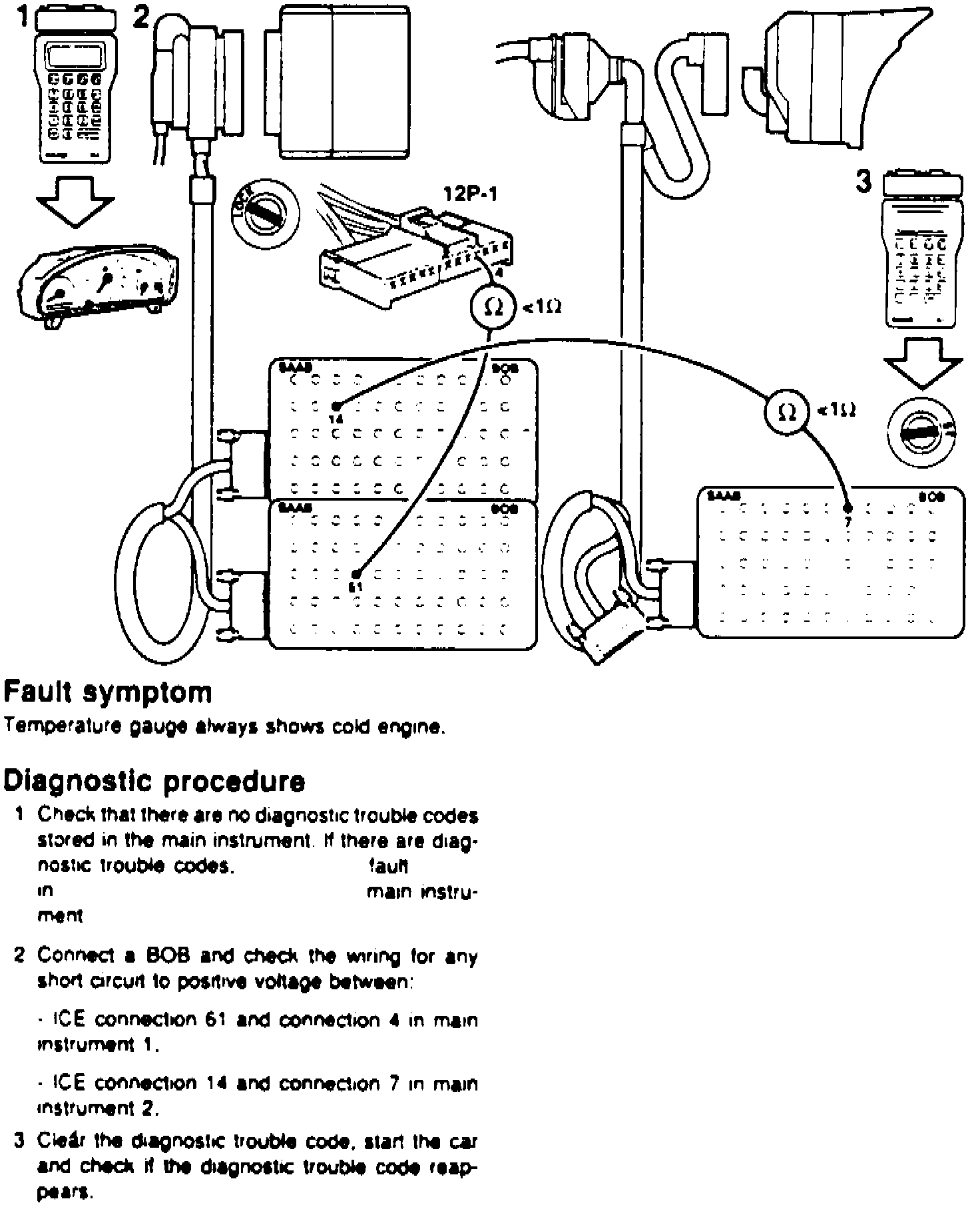

Fig. 12 Code B1317 & B1422: Short Circuit To Battery:
