900 SE Convertible L4-1985cc 2.0L DOHC Turbo EFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Radiator Cooling Fan Motor
>>
DTC 1102 - 1105
DTC 1102 - 1105

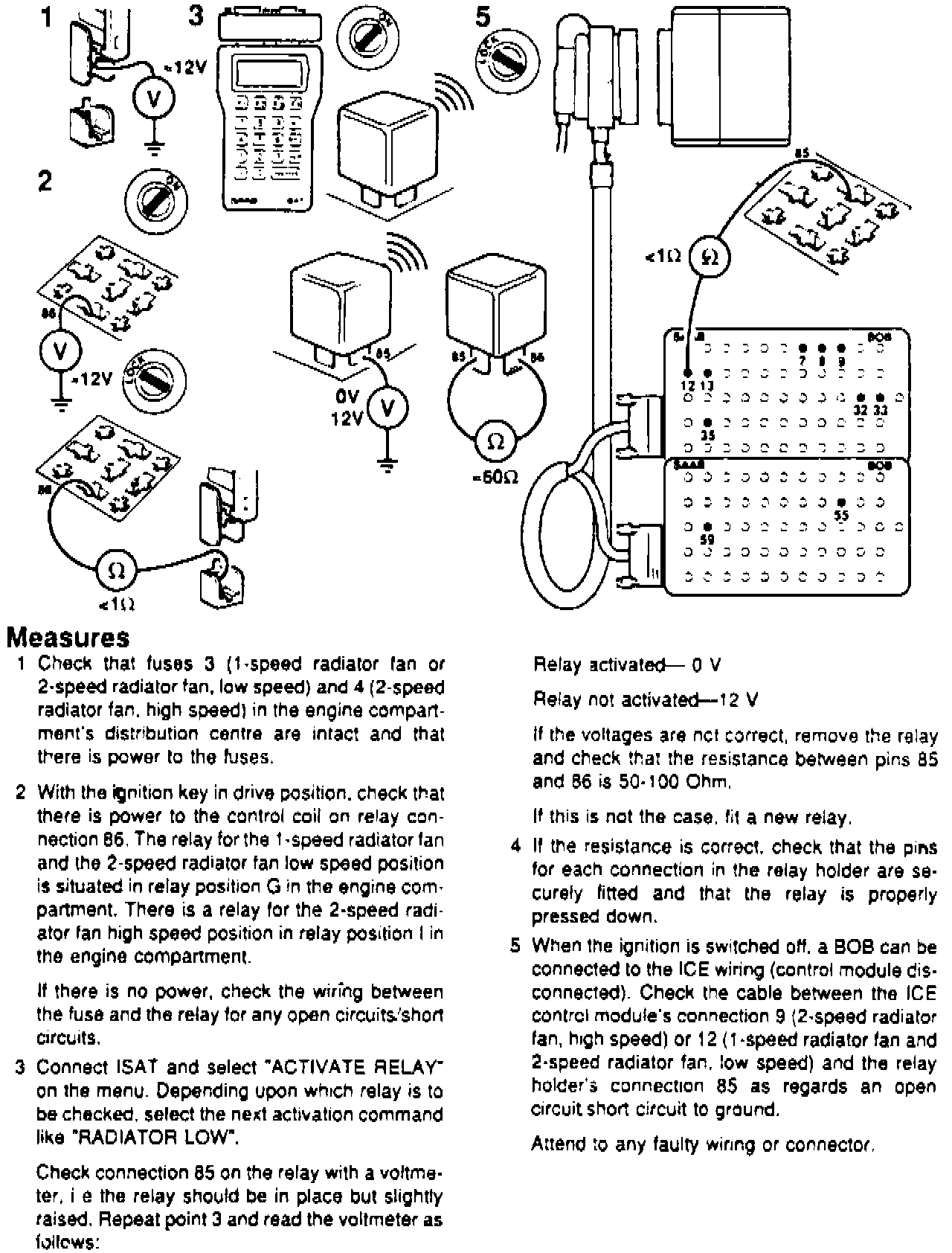

Fig. 9 Codes B1102 Through B1105: Radiator Fan Does Not Work Or Radiator Fan Is Running Continuously At High Or Low Speed When Ignition Is Switched Off:
