Piston Pin, Engine

DIMENSIONS
Diameter: 20.990-21.000 mm (0.8270-0.8274 inch)

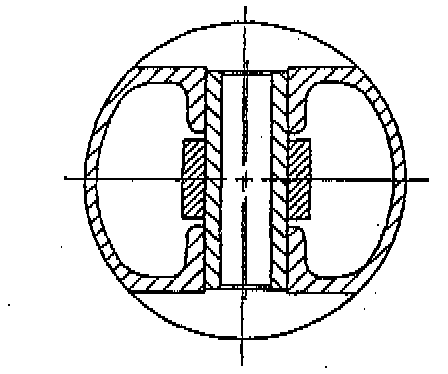

Axial Location Of Connecting Rod and Wrist Pin:
On Assembly: 0.005-0.014 mm (0.0002-0.0006 inch)
