Checking Manual Gear Shifting

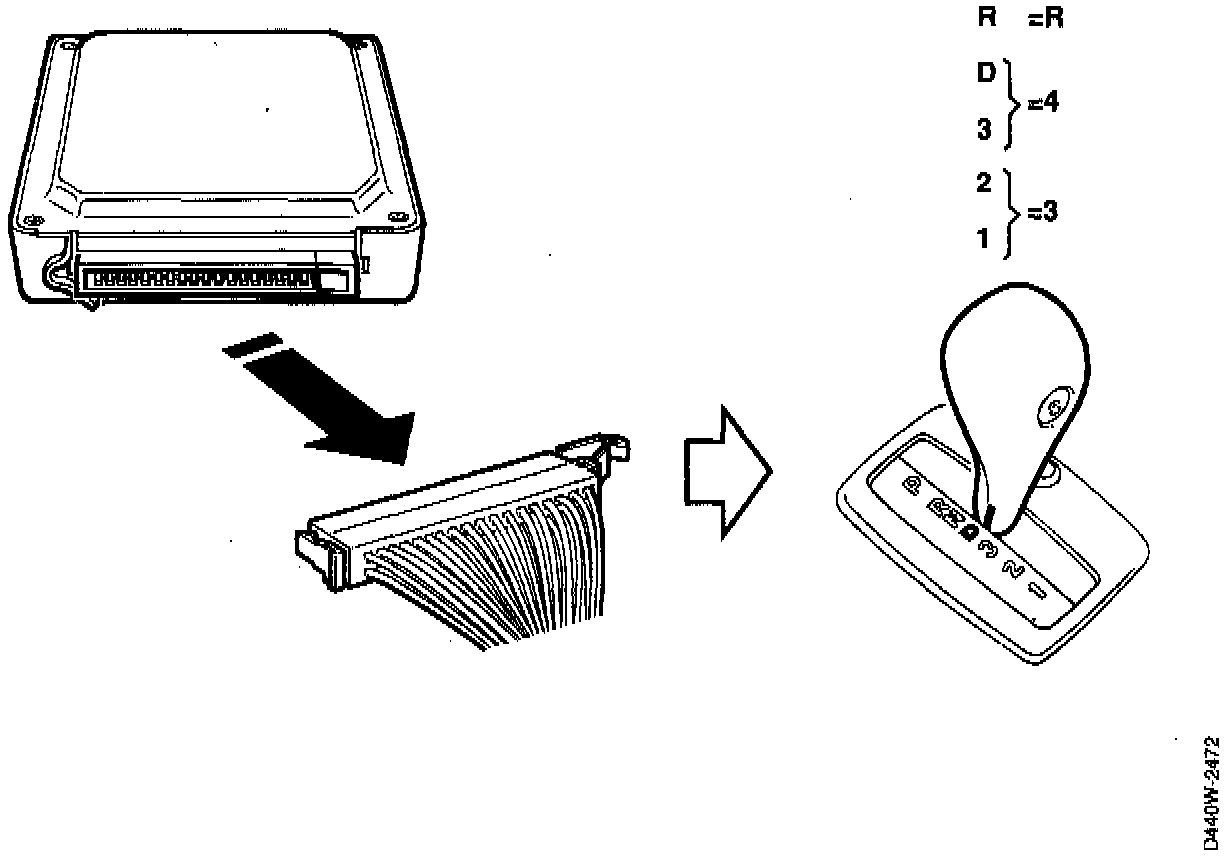

1. Disconnect the Transmission Control Module (TCM) connector.
2. Check while driving that the transmission shifts to each gear as specified by the position of the selector lever.
3. Check that the car does not move in position N.
4. Check that the P-lock locks in position P.

Selector lever position P R N D 3 2 1
Gear P R N 4 4 3 3
