Special Tools - For Convertibles & Turbos

CATEGORY
Tools

SECTION
1

PAGE
37

ISSUE
06/94-0469

CODE
102

Subject:
New Essential Special Tools

Application: 1994- 900 Models
(excluding Convertibles)

This service bulletin contains information about new special tools which have been designed to help repair 1995 900 Convertibles, 1994 900 Turbos and the V6.

Parts:

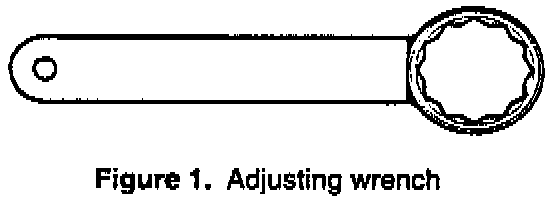

Adjusting wrench P/N 83 94 983
For adjusting the timing belt tensioning rollers in
1994- V6 engines. Cost $25.92

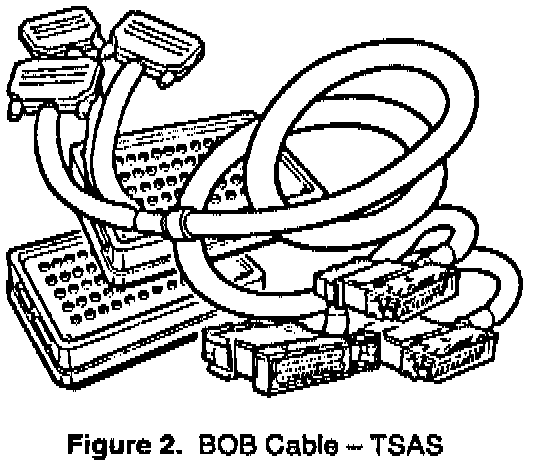

BOB cable for the top stack P/N 86 11 329
actuation system (TSAS)
For diagnosing the top stack on 1995 Convertibles.
Cost $196.75

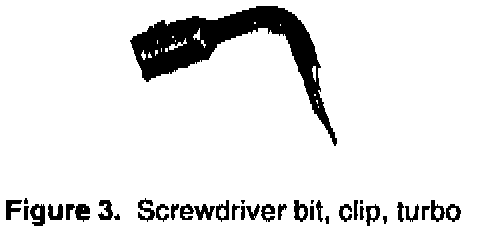

Screwdriver bit, turbocharger clip P/N 83 95 014
For tightening torx screws for turbo inlet pipe on
1994-Turbo models. Cost $10.05

Ordering Information:

The above tools are all considered essential tools. One of each will be automatically shipped from Kent-Moore in early June, 1994. Billing will be done on your Saab parts account the month following shipment.
