Essential Tools

CATEGORY: Tools

SECTION: 1

PAGE: 42

ISSUE: 10/94-0511

CODE: 000

Subject:
1995 Essential Tools

Application:
1995 900 and 9000 models

This service bulletin contains information about new special tools which have been designed to help repair 1995 900s and 9000s. Refer to the applicable service manuals and training handouts for the proper use of the following tools.

Parts:

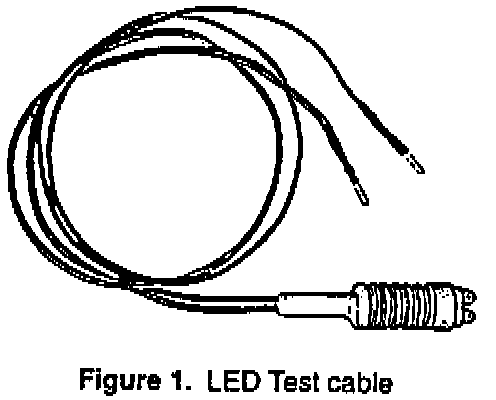

LED Test cable (or test lamp cable) P/N 86 11 857 1995 900s and 9000s.

Price: $8.45

Note:
This tool is also used in 1994 Trionic diagnostic procedures.

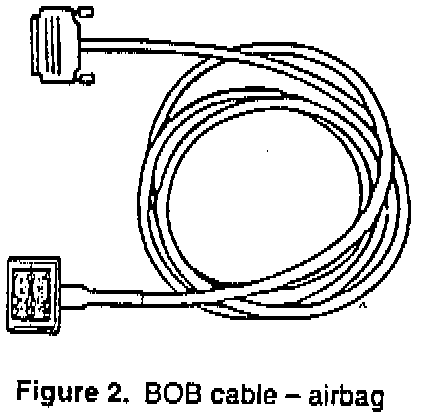

BOB Cable - Airbag P/N 86 11 865
For diagnosing the airbag on 1995 900s and 9000s.

Price: $41.20

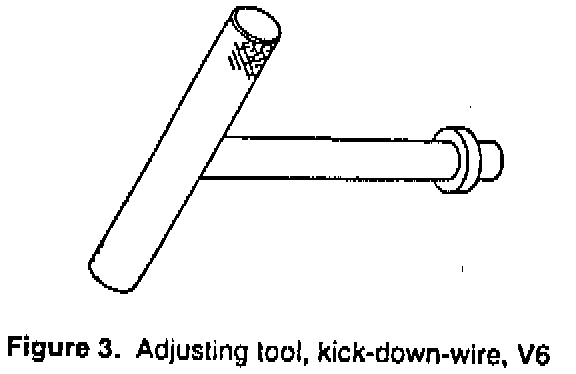

Adjusting tool, kick-down cable, V6 P/N 87 92 459
1995 9000 models

Price: $13.15

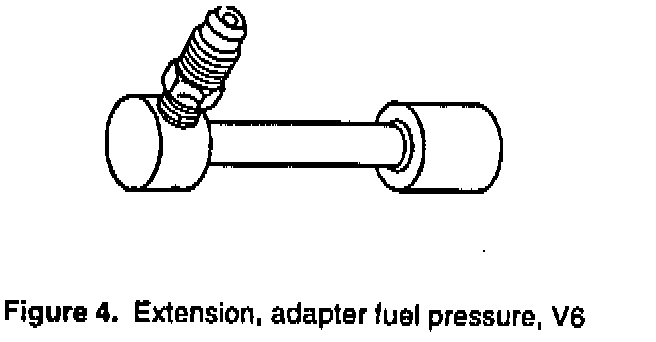

Extension, adapter fuel
pressure, V6 P/N 83 95 121
1995 9000 models

Price: $23.95

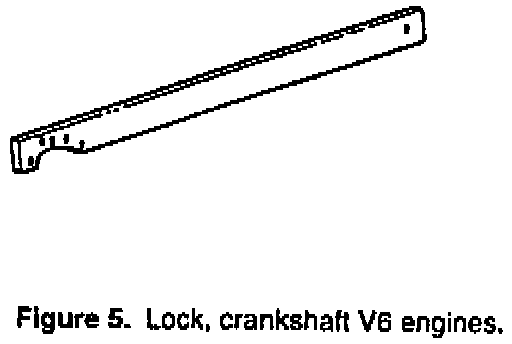

Crankshaft Lock P/N 83 95 063
All V6 engines, 1994 & 95 900 & 9000 models

Price: $52.20

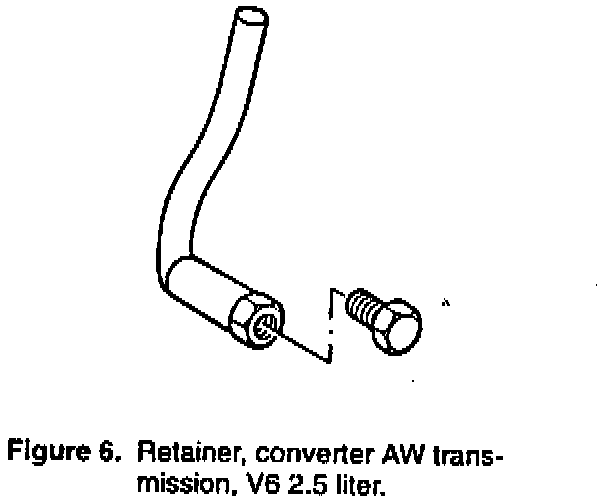

Torque Converter Retainer, AW trans-
missions P/N 87 92 285
V6 2.5 liter, 1994 & 95 900 models

Price: $16.90

Ordering Information:
The above tools are all considered essential tools. One of each will be automatically shipped from Kent-Moore (Phone no. 1-800-345-2233) in Mid-September, 1994. Billing will be done on your Saab parts account the month following the shipment.
