Home >> Saab >> 1995 >> 900 SE Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Splice Locations >> Connection J89-J112

Connection J89-J112

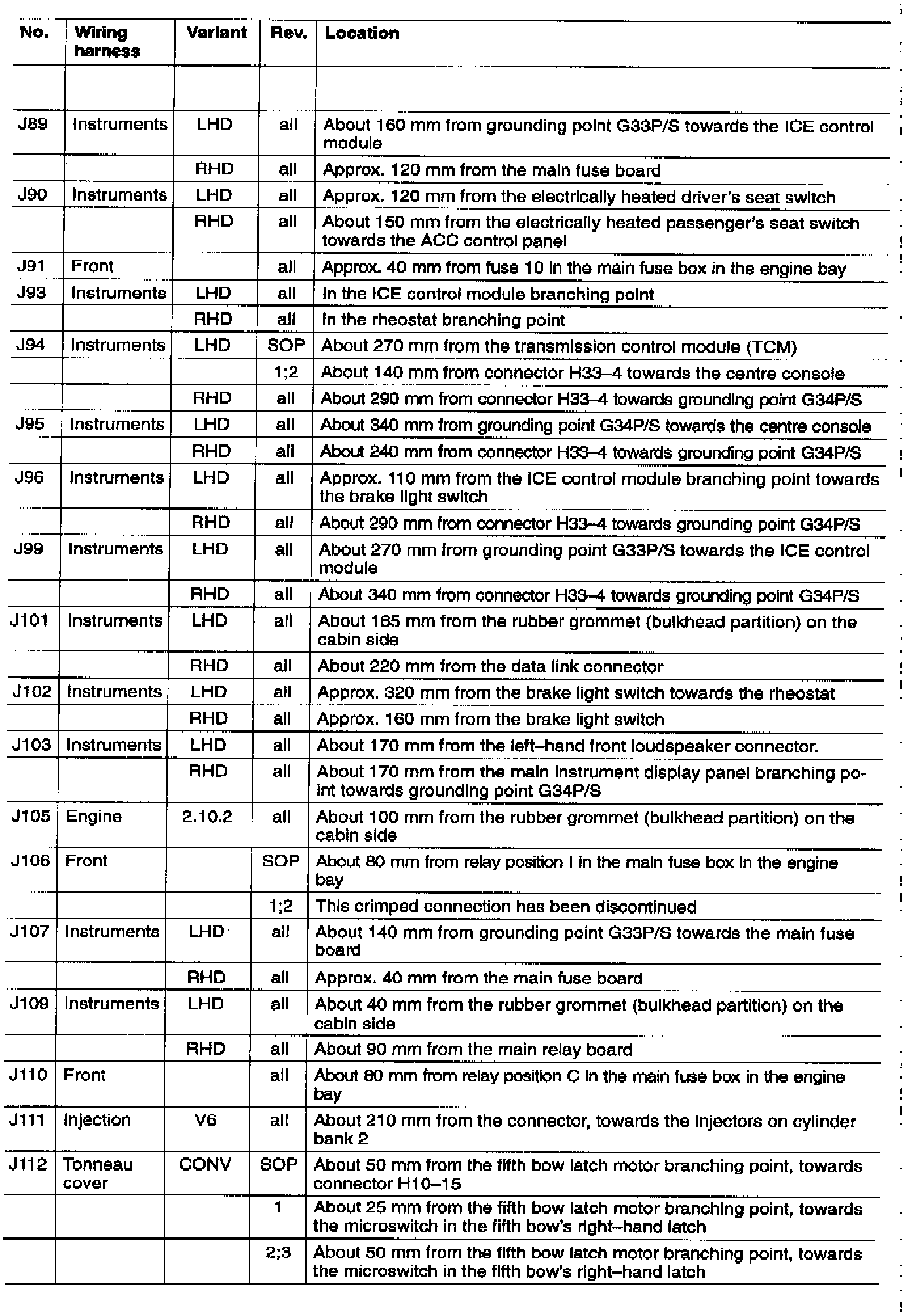

Crimped Connection Locations: J89-J112:
