Home >> Saab >> 1995 >> 900 SE Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Splice Locations >> Connection J37-J53

Connection J37-J53

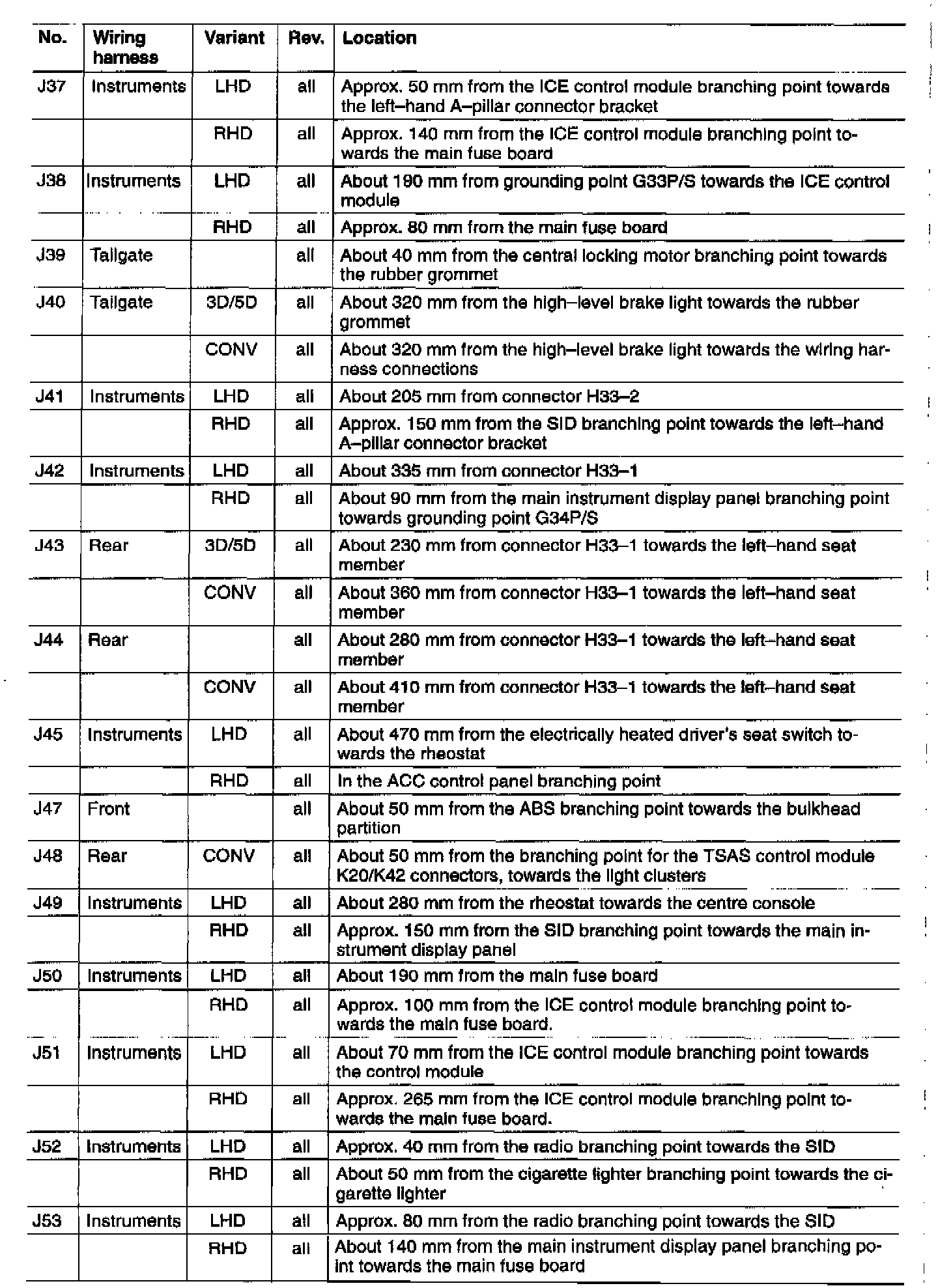

Crimped Connection Locations: J37-J53:
