Grounding Points G7P

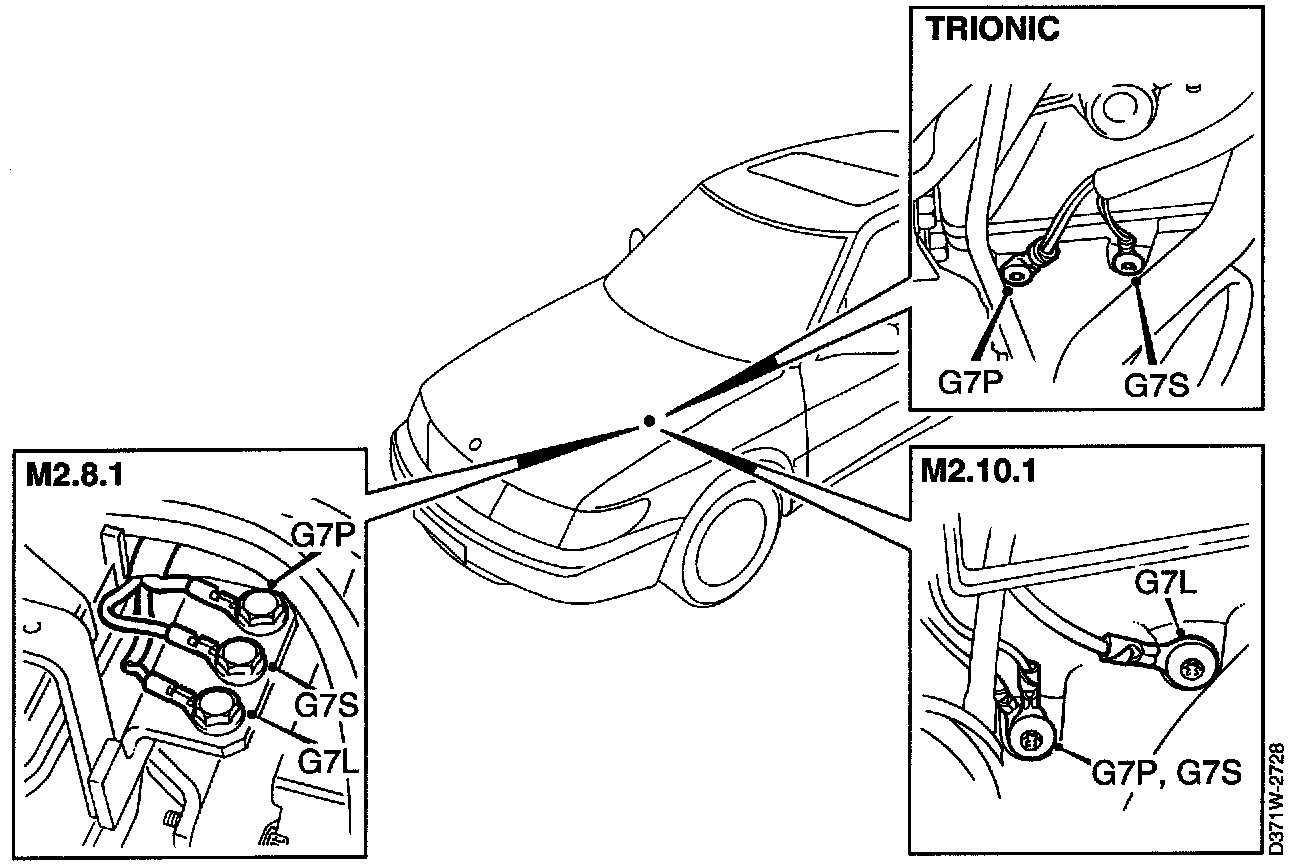

Grounding Points G7L, G7S & G7P:

Connected to grounding point G7P on a bracket on the engine are the following components:

205 Mass air flow sensor
271 Preheater, front heated oxygen sensor
271 Preheater, rear heated oxygen sensor
346 Ignition discharge module, DI
430 Trionic control module
505 M2.10.3 control module
510 M2.8.1 control module
