Grounding Points G34S

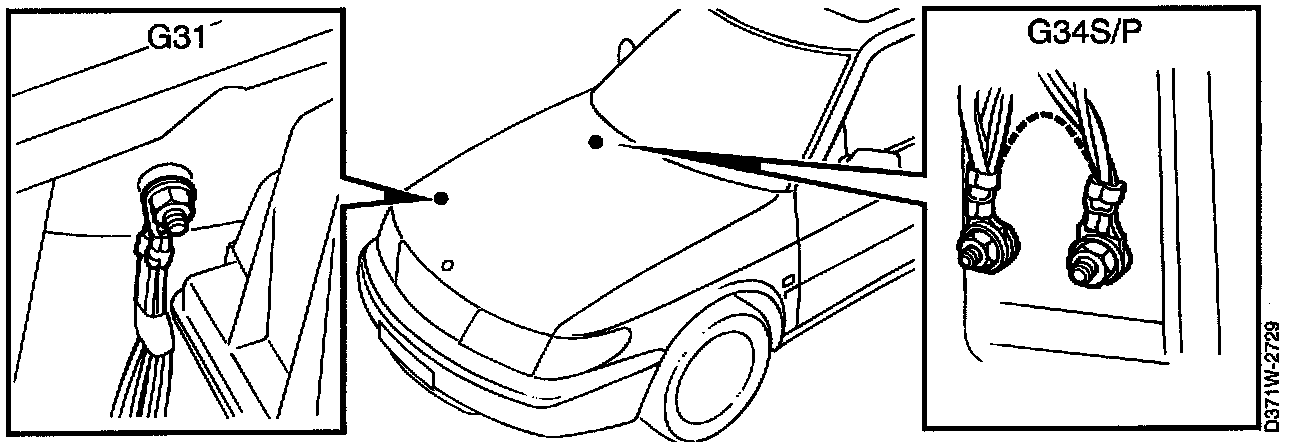

Grounding Points G31, G34P & G34S:

Connected to grounding point G34S in the cabin on the right-hand side below the A pillar are the following components:

38 Motor, recirculation flap
48 Cigarette lighter
154 Lighting, heater controls
252 Switch for electrically heated driver's seat
253 Switch for electrically heated passenger seat
305 Anti-theft alarm LED
504 Heating and ventilation control panel
541 SID unit
