Grounding Points G30

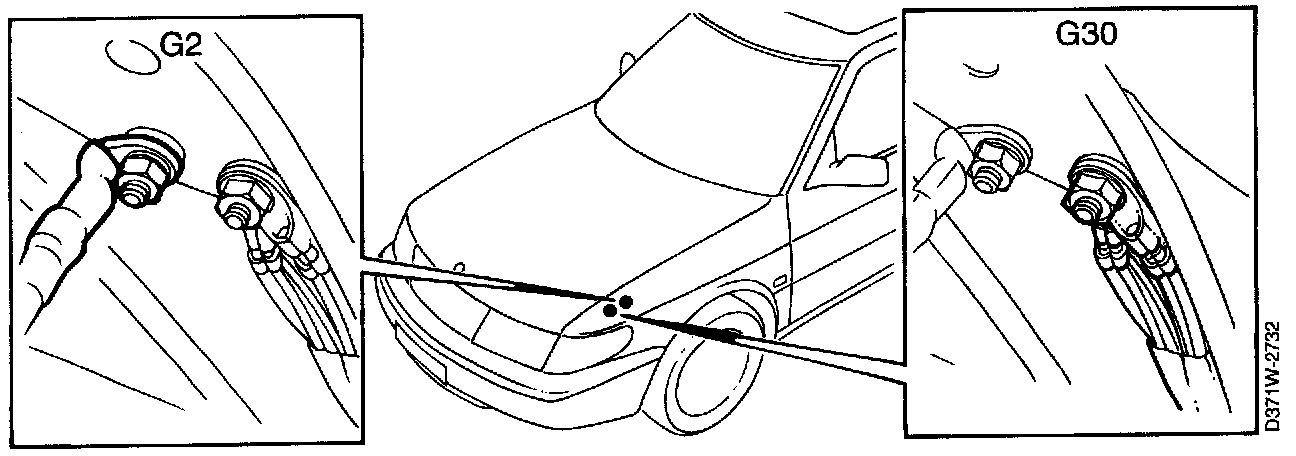

Grounding Points G2 & G30:

Connected to grounding point G30 located behind the battery on the structural member are the following components:

11 Main beam, LH
12 Dipped beam, LH
13 Parking light, LH
27 Left-hand front direction indicator
37 Radiator fan
40 Horn
66 Left-hand headlamp motor
85 Left-hand fog light
119 Left-hand side reversing light
134 Brake switch for Cruise Control
166 3-stage pressure switch, A/C
195 Washer fluid level sensor
228B Filament monitor
234 Side marker light, LH
280 Headlamp beam adjustment motor
547 ABS control module
548 Secondary air injection pump
549 Secondary air injection control valve
