Ground Point G4

Grounding Point G4:

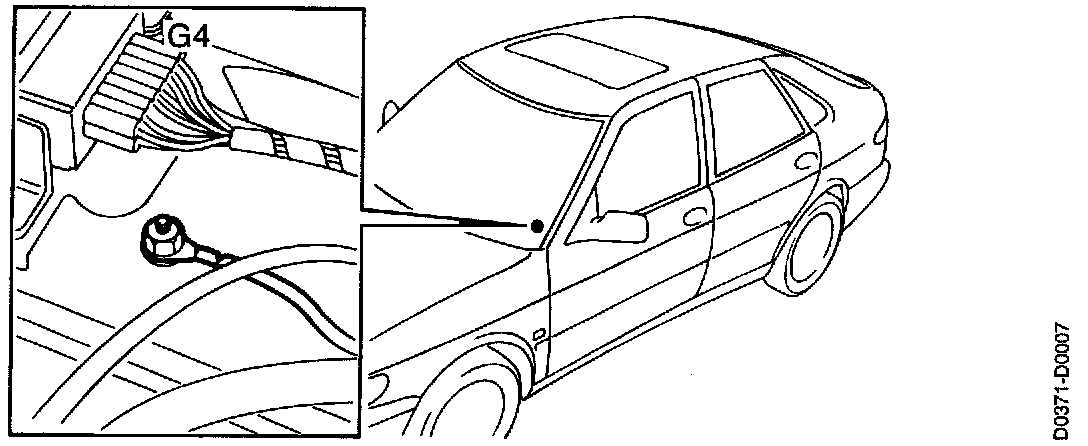

Connected to grounding point G4 on the centre console between the front seats are the following components:

91 Lighting, selector lever indicator
331 Airbag control module
439 Shift solenoid
503 Switch, electrically heated rear seat
506 WINTER switch
534 Kickdown switch
535 Transmission fluid temperature sensor
537 SPORT switch
