Main Fuse Board For Maxi Fuses (501)

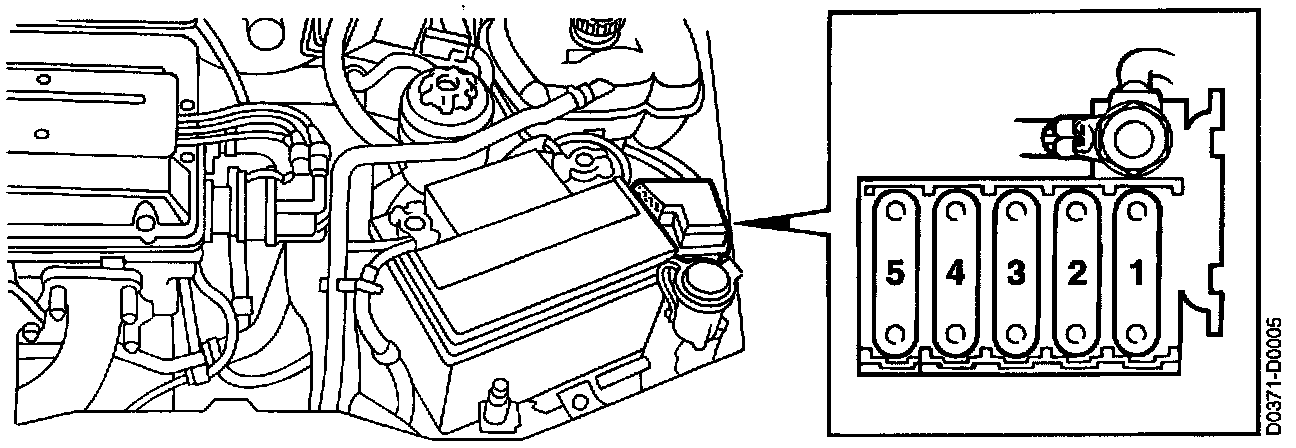

Main Fuse Box, Engine Bay - Main Fuse Board For Maxi Fuses (501):

No. Rating Function

1 60A Directly supplies the fuses in the dashboard:
1 4 11 13 23 24 25 26 34
2 60A Directly supplies the fuses in the dashboard:
2 5 10 12 16 27 28 35
Lights switch 10
Starter relay 517
3 60A Directly supplies ignition switch 20
4 60A Directly supplies ignition switch relay 21
5 60A Supplies the TSAS control module (Cabriolet)
