ECM - SRS Warning Light Illuminating

Category
Body

Section
8

Page
127

Issue
09/95-0614

Code
850

Subject:
SRS Warning Light Illuminating

Application:
Certain 1995 900 and 9000 Models
(See Below for specific VIN Information)

It is possible that on some cars the SRS warning light activates and fault codes are registered without any fault in the system. In these cases, the system is functionally unaffected and fault free. This is caused by a calibration error in the diagnostic routine within the ECM.

If one of the codes listed below is registered, and is of the intermittent (I) type, the airbag ECM must be replaced with an updated ECM. NOTE: If the fault is a permanent (P) one, follow the procedure found in Service Manual 8:6 Airbag.

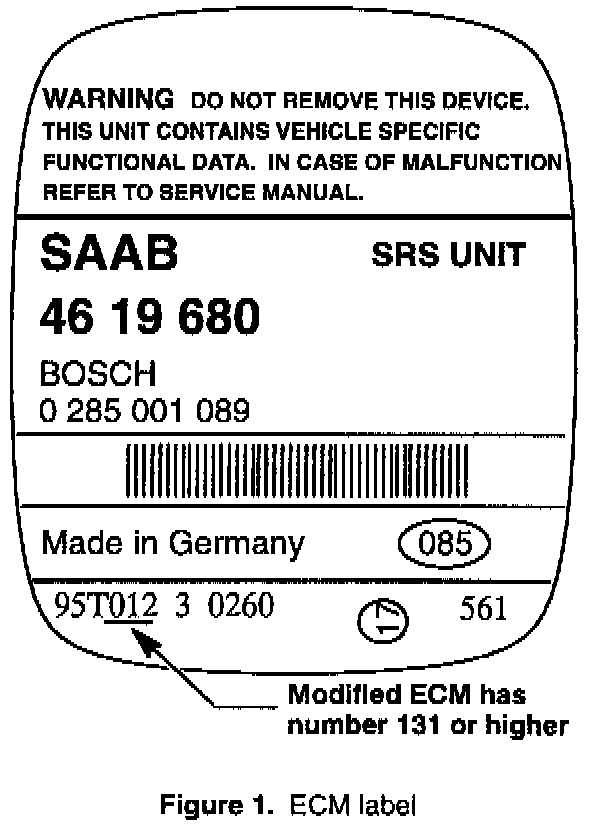

All ECM's in stock are updated with no change to the part number. An updated ECM has production number "95Txxx" on the label. The "xxx" should read "131" or higher. See Figure 1.

Cars Affected:

1995 900 models within VIN Serial No. Ranges: S2024309-S2044618

1995 900 Convertible models within VIN Serial No.

Ranges: S701769-S7024174

1995 9000 models within VIN Serial No. Ranges: S1015327-S1032510

Parts:

SRS ECM 46 19 680

Intermittent Fault Codes:

B1227 B1228 B1332 B1333
B1337 B1338 B2332 B2333
B2338 B2441 B2442 B2443
B2444 B2446 B2447 B2448
B2449

Warranty Information:

Based on a customer complaint for a vehicle in warranty, submit a claim using the following information:

Failure code: 85073-67-0-01/06-01
Labor operation: 12311 for 0.4 hr. (ALL models)
Labor operation: 85073 for 0.2 hr. (900 models)
Labor operation: 85078 for 0.5 hr. (9000 models)
