Connectors and Grounding Points

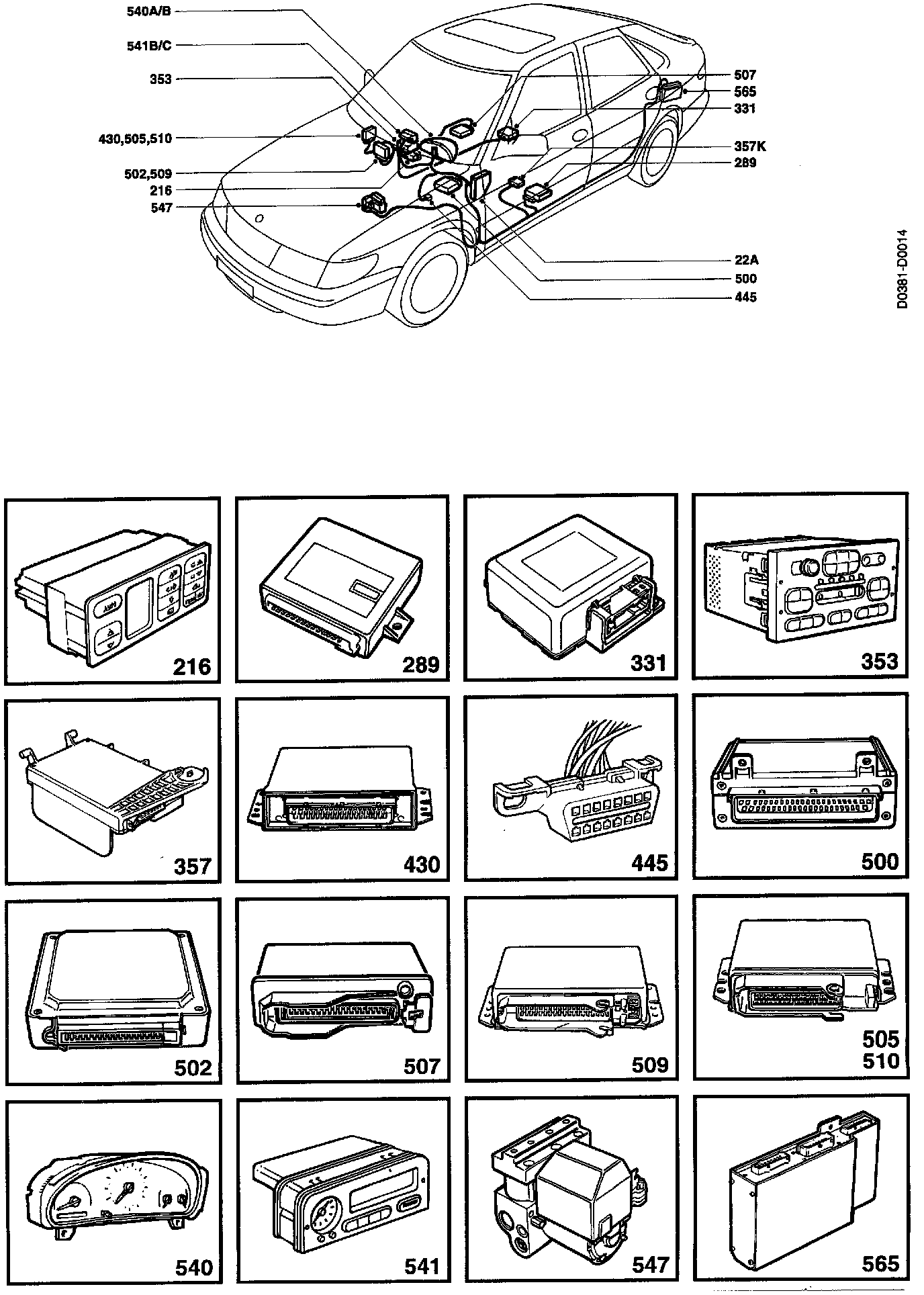

22A Main fuse board in the dashboard.
216 ACC control module in centre of dashboard.

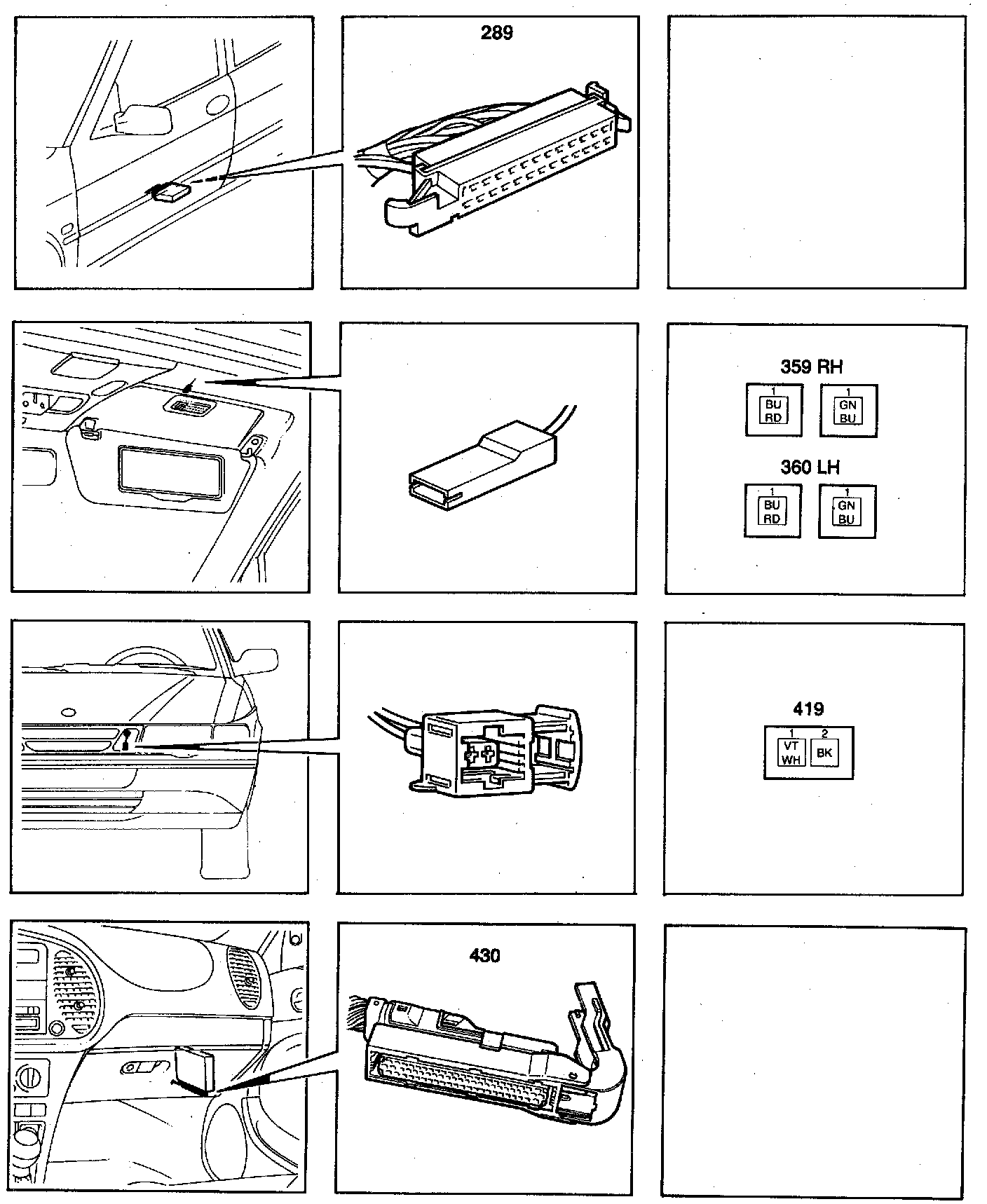

289 Anti-theft alarm control module under left-hand front seat.
331 Airbag control module under the centre console behind the Handbrake.
353 Radio/cassette player, in centre of dashboard.
357K Control module, electrically adjustable driver's seat with memory, under the seat.
430 Trionic control module behind side trim on right-hand side.

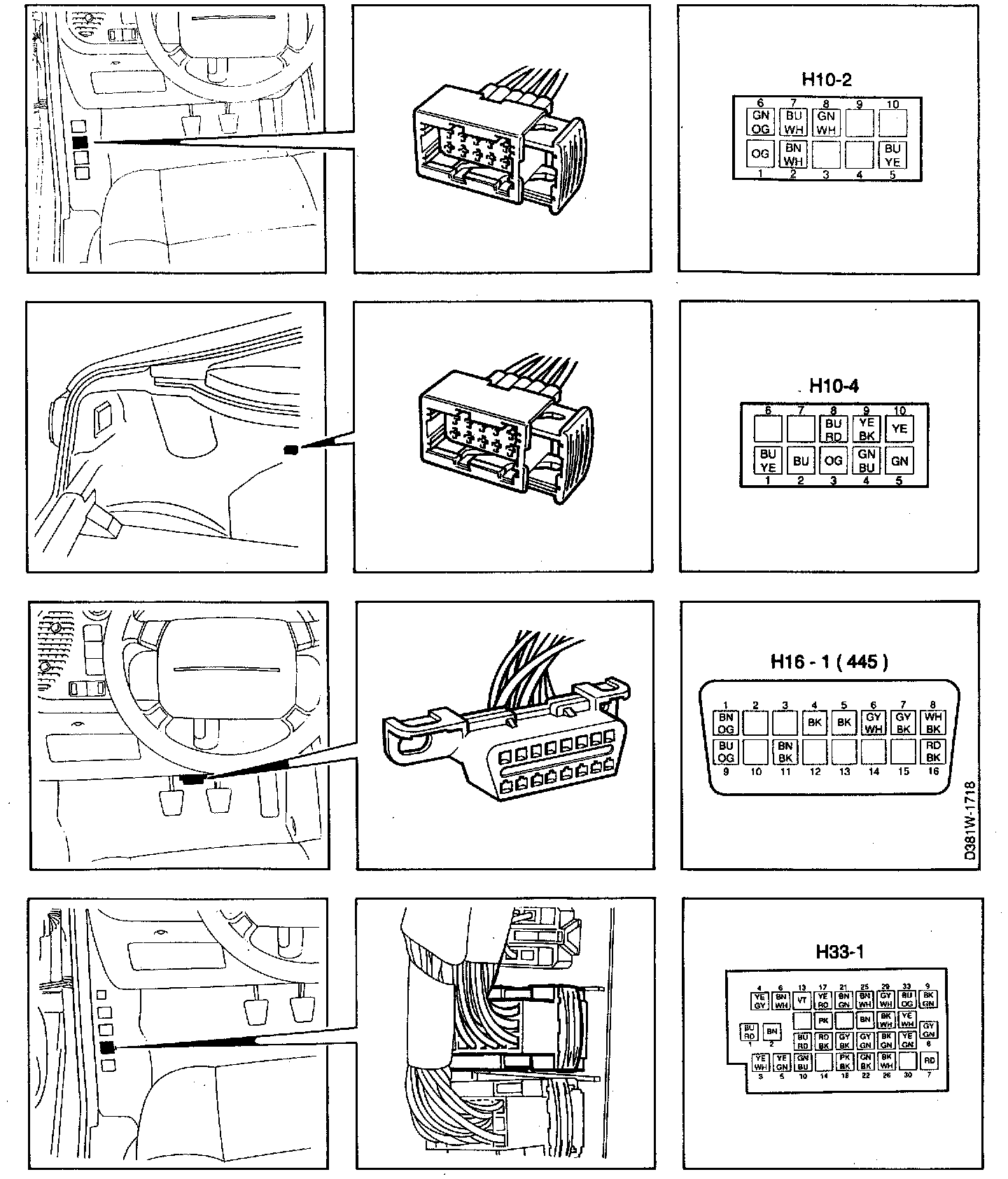

445 Data link connector (16-pin), under the dashboard adjacent to the steering wheel.
(H16-1)

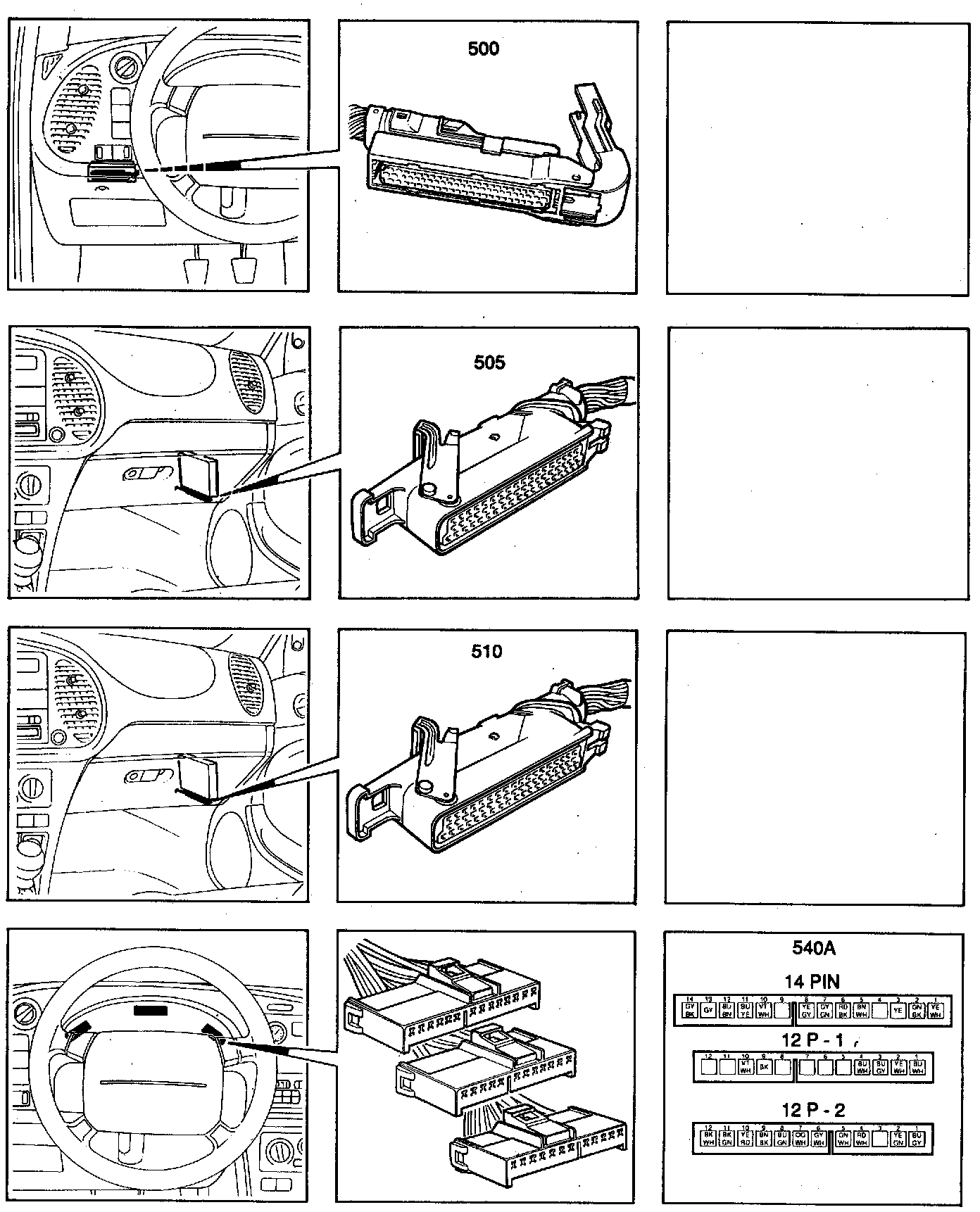

500 Integrated Central Electronics (ICE) control module
LHD:above main relay board in dashboard
RHD:behind main relay board in dashboard
502 Transmission control module (TCM) in cabin on right-hand side of bulkhead partition.
505 Control module, M2.10.3, behind the side trim on right-hand side.
507 TCS control module under the right- hand front seat.
509 Sensonic control module, in the cabin on right-hand side of the bulkhead partition.
510 Control module, M2.8.1, behind the side trim on right-hand side.

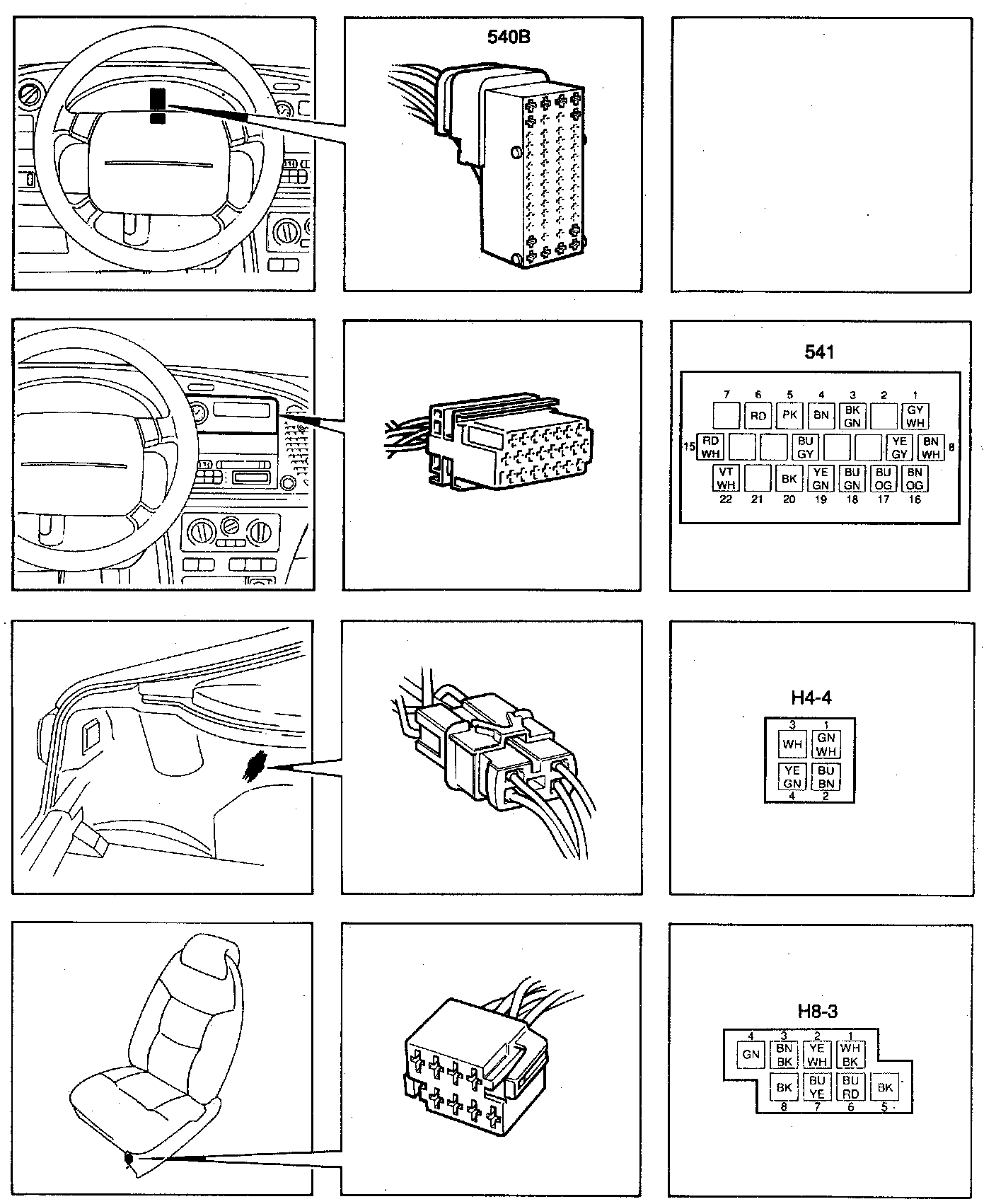

540B Main instrument display panel 2
541 SlDunit2or3
547 ABS control module integrated with the brake unit, behind the battery.
565 TSAS control module in the luggage compartment on the left-hand side.

33-pin connectors
H33-1 Grey connector on bracket below the left-hand A pillar.

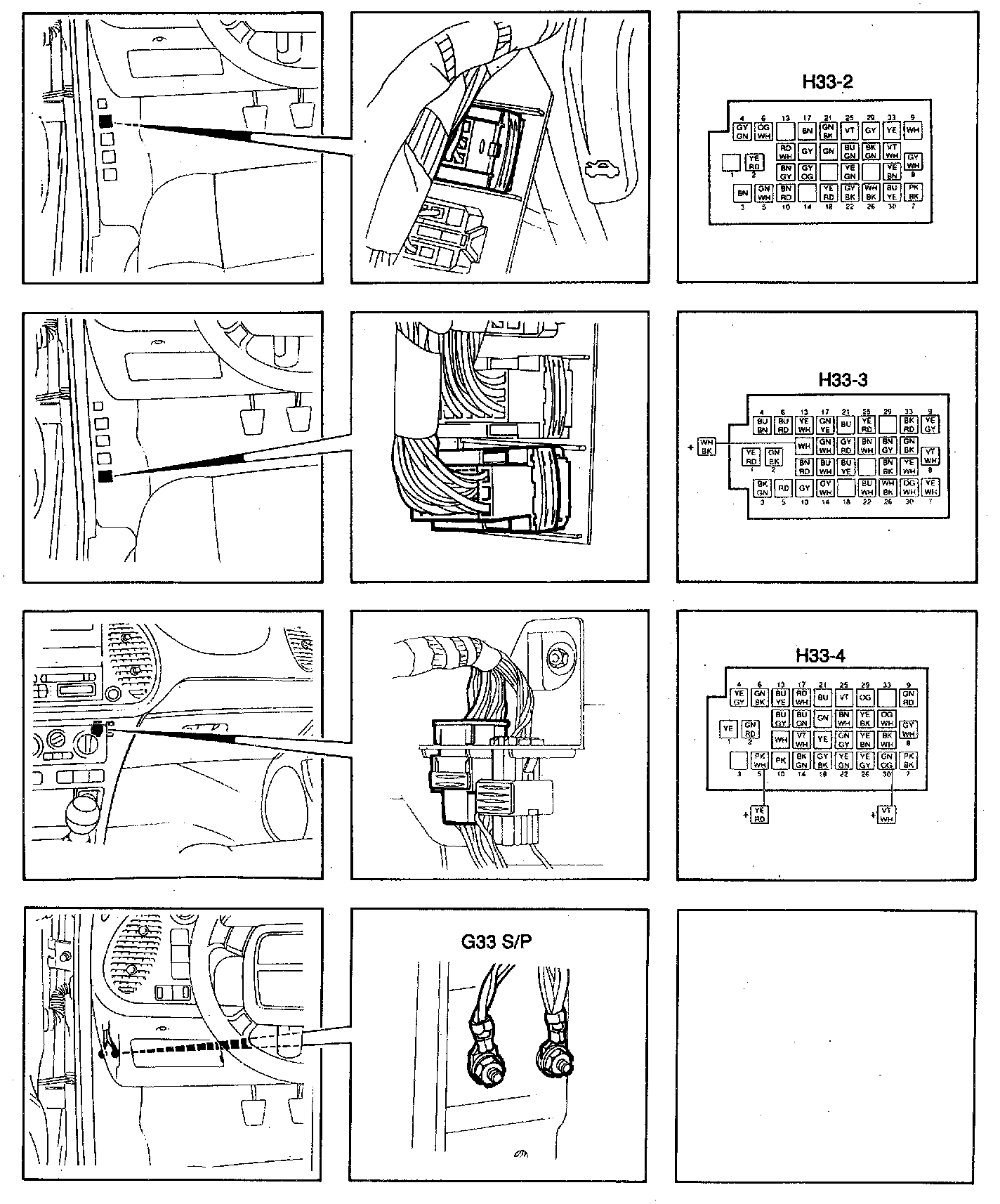

H33-2 Black connector on bracket below the left-hand A pillar.
H33-3 Blue connector on bracket below the left-hand A pillar.
H33-4 On the bulkhead partition behind the glove box.

GROUNDING POINTS
G33P Grounding point, connector bracket (Power) below the left-hand A pillar.
G33S Grounding point, connector bracket (Signal) below the left-hand A pillar.

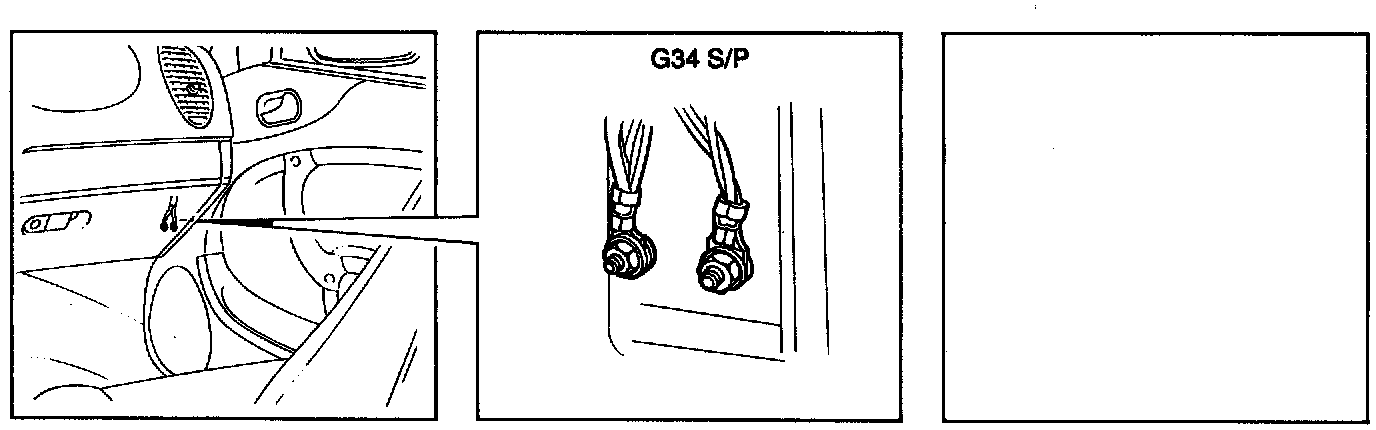

G34P Grounding point, control module bracket (Power) below the right-hand A pillar.
