Extra Fog Lights

��XExtra Fog Lights:

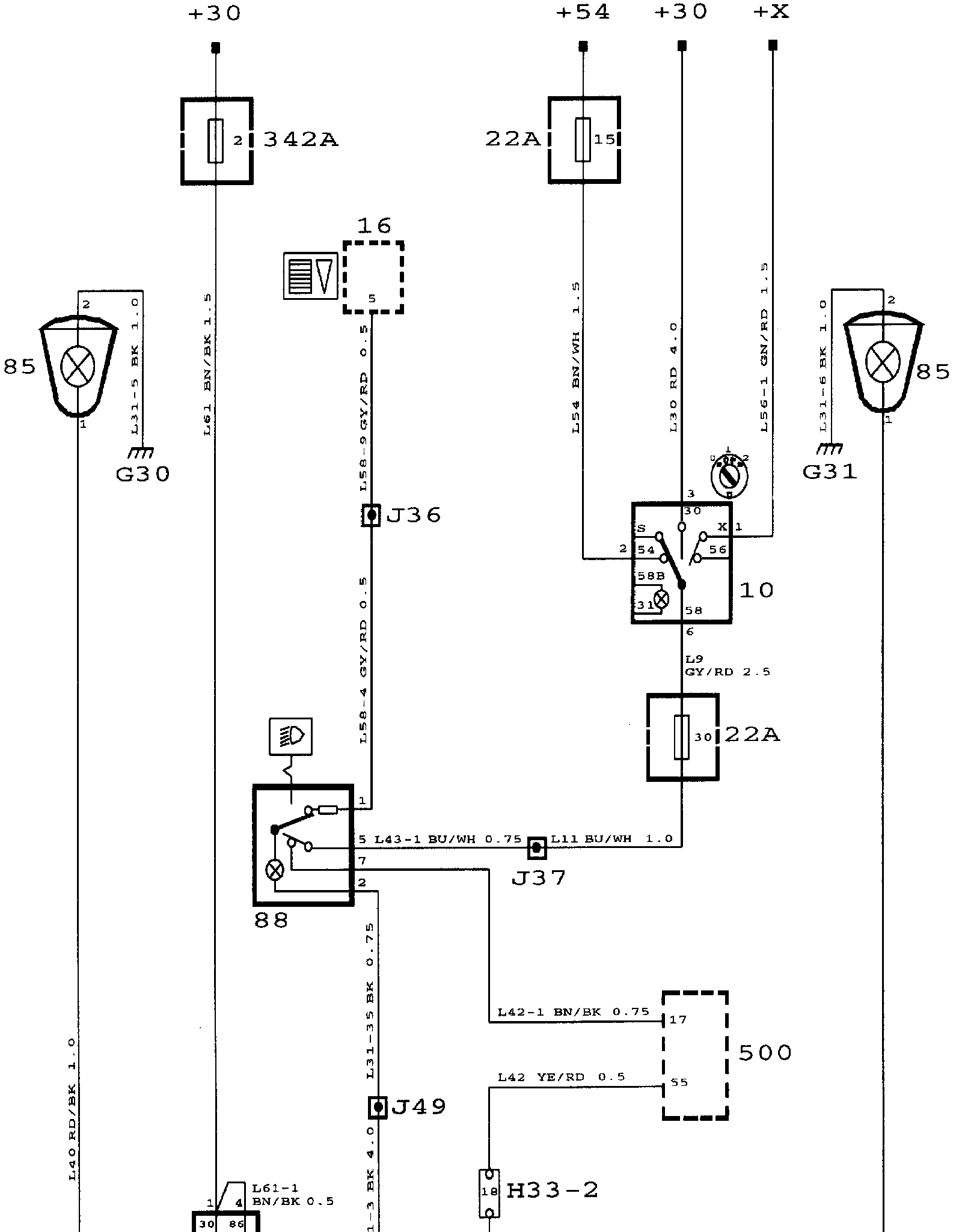

WIRING DIAGRAM

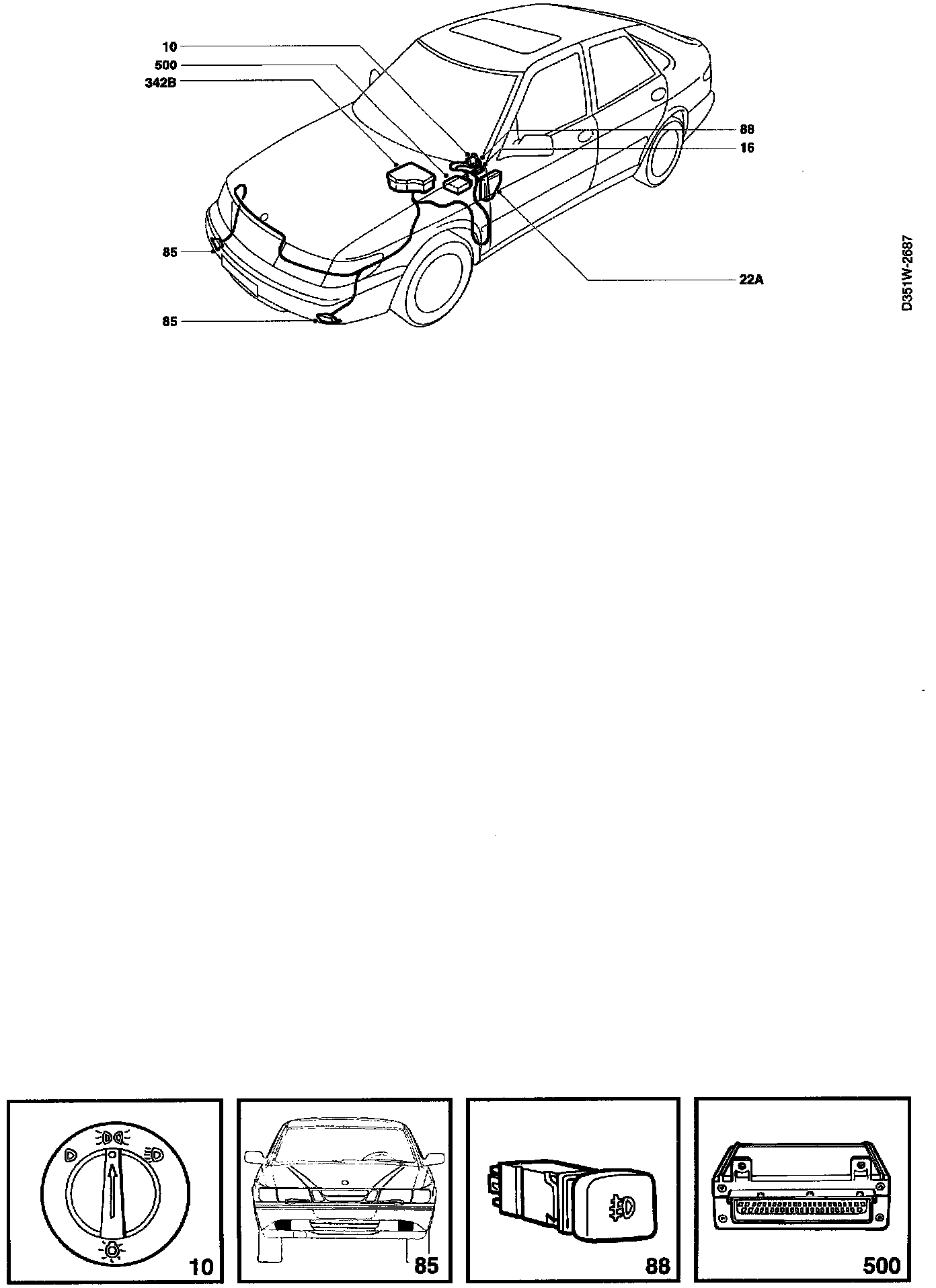

Extra Fog Lights - Component Location:

COMPONENT LOCATION
10 Lights switch on dashboard between steering wheel and driver's door.
16 Instrument lighting rheostat on dash- board between steering wheel and driver's door.
22A Main fuse board in the dashboard.
85 Extra fog lights in spoiler under front bumper.
88 Switch for extra fog lights in switch assembly between steering wheel and driver's door.
107 Relay, extra fog lights, on main relay board in the engine bay.
342A Main fuse board in the engine bay.
500 ICE control module
LHD:above main relay board in dashboard
RHD:behind main relay board in dashboard

33-pin connector
H33-2 Black connector on bracket below the left-hand A pillar.

Grounding Points
G30 Grounding point, left-hand structural member behind the battery.
G31 Grounding point, right-hand structural member, in the engine bay on the right- hand side.
G33S Grounding point, connector bracket (Signal) below the left-hand A pillar.


DESCRIPTION OF OPERATION
The Integrated Central Electronics (ICE) control module controls the front fog lights and depending on the market variant for which it is programmed, the ICE grounds the fog light relay via pin 55 when current is present on pin 17 of the ICE control module.

When lights switch 10 is in position 0 (daylight driving lights), position 1 (parking lights) or position 2 (main or dipped beam headlamps), a positive voltage is applied to pin 5 of switch 88 for the extra fog lights via fuse 30 (which also supplies the parking lights with current).

When switch 88 is pressed, the ICE control module grounds relay 107 and the lamp built into the switch lights up at full strength. When the switch is not activated the lamp is supplied with current from rheostat 16 for the instrument lighting.

When the relay is operated, both fog lights 85 are supplied with current via fuse 2 from the closed relay contacts.

FAULT DIAGNOSIS HINTS
The extra fog lights are switched on by pressing switch 88.
1. Check that fuses 2 and 30 are intact and supplied with current.
2. Check that each fog light bulb is OK and supplied with current.
3. Check the grounding of the lamp.
4. Check by taking readings at the connections that relay 107, lights switch 10 and switch 88 are in working order.
5. Check the connectors, wiring harness and ground connections.
