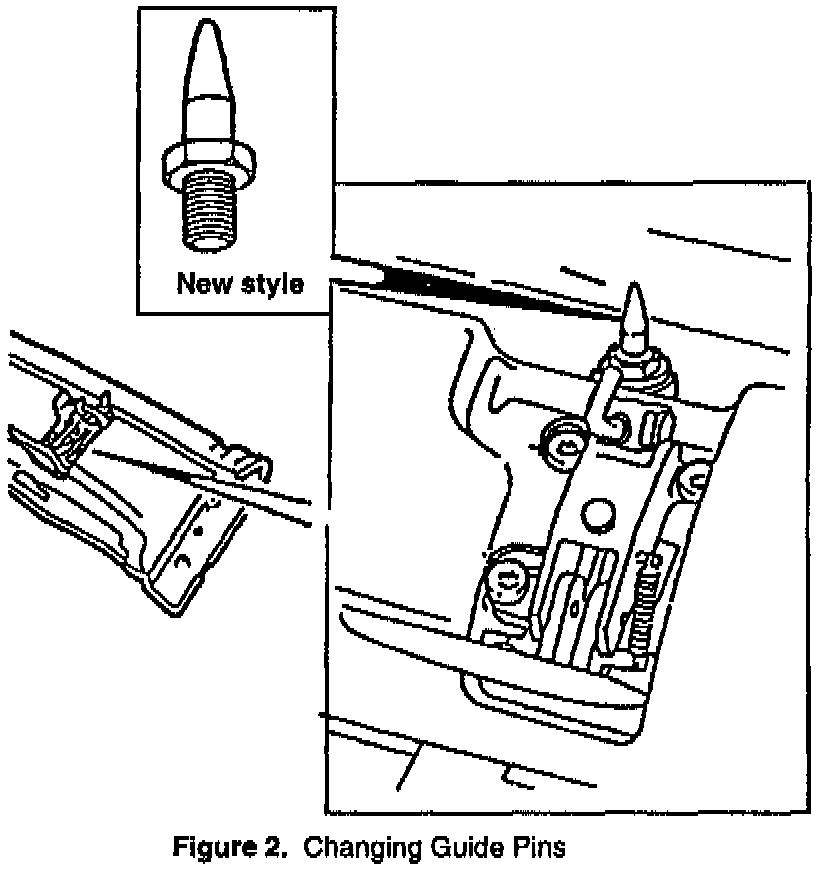

B. Replacing Guide Pins In First Bow

In some cars, compression of the header seal is insufficient (the guide pins are too long and bottom in the microswitch housings). For this reason, a shorter guide pin has been developed.

Parts:
Guide pins (2) 47 66 895

Action:
Change to guide pin P/N 47 66 895.

Important
Since the guide pin on the right-hand side is adjustable, mark its position before removing it.

Hold the loose nut to prevent it from dropping out of place.

If necessary, also adjust the J-hooks as described on page 132 of Service Manual 8:5.
