Electrically Operated Boot Lid Release

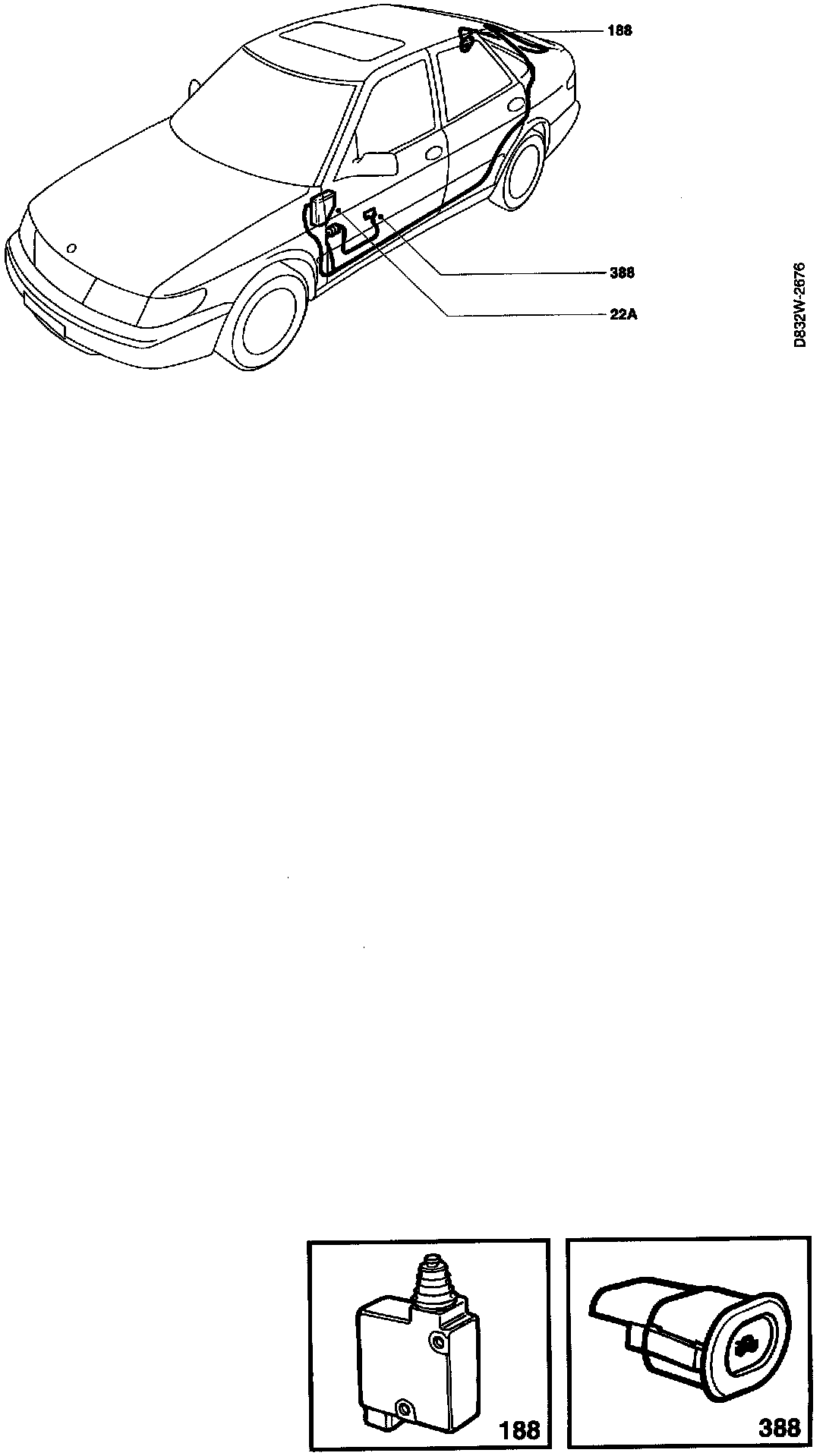

Electrically Operated Tailgate Release - Component Location:

22A Main fuse board in the dashboard.
188 Motor, central locking system, in the tailgate.
289 Anti-theft alarm control module under the left-hand seat.
388 Switch, electrically operated tailgate release, on the driver's door.
565 TSAS control module in the luggage compartment on the left-hand side.

2-pin connector
H2-1 On LH side of tailgate.

3-pin connector
H3-15 On LH side of tailgate.

4-pin connector
H4-5 In the luggage compartment behind the left-hand wheel housing.

26-pin connectors
H26-1 Connector, driver's door, LHD
H26-3 Connector, driver's door, RHD

33-pin connector
H33-1 Grey connector on the bracket below the left-hand A pillar.

Grounding Points
G3 Grounding point, luggage compartment, below left-hand rear light cluster.
G14 Grounding point, left-hand front seat member, under the seat.
G24 Grounding point, right-hand front seat member, under the seat.
G35 Grounding point, dashboard, behind the connector bracket below the left-hand A pillar.
