Alarm Signal, Country-Specific/Own Alternative/Siren

The theft alarm is pre-programmed for the requirements of 4 different countries on how an alarm is given. The operation thus fulfills the laws and insurance requirements that apply in these countries. For countries with other requirements, and for different customer requirements, individual programming is available under "OWN ALTERNATIVE" in the menu.

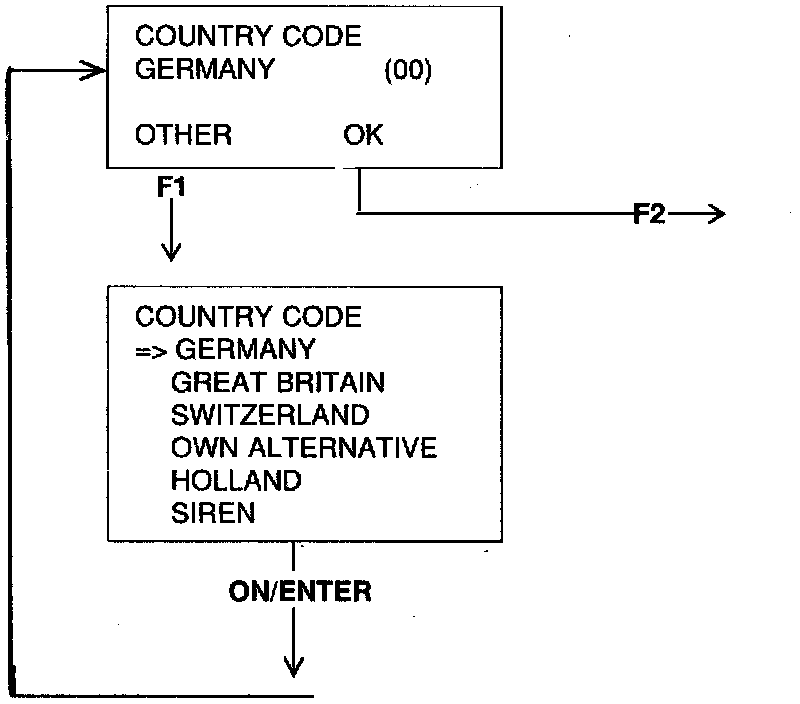

Programming

Country-specific
1 Connect the Intelligent Saab Tester (ISAT) scan tool.
Select "PROGRAMMING"
2 Select "COUNTRY CODE".
3 Select country.
The values that apply for each country are given in the table to the right.
For "OWN ALTERNATIVE" or "SIREN", see the description below.

Country Sound time Flash time
Germany 30 sec(* 5 min
Great Britain 30 sec(* does not flash
Switzerland 30 sec(** does not flash
Own alternative
Holland 30 sec(** 5 min
Siren

*) Sound repeated at intervals.
**) Sound repeated continuously.

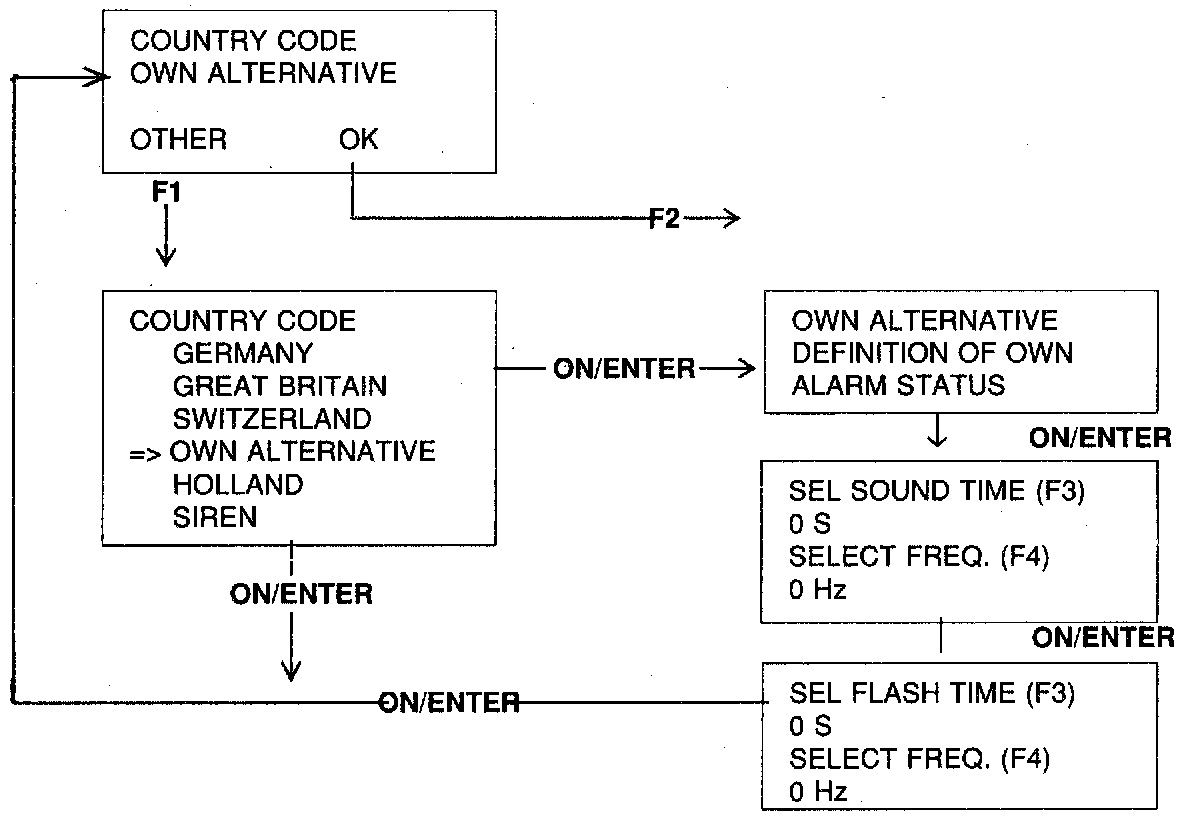

Programming
Own alternative
1 Select "COUNTRY CODE".
Select "OWN ALTERNATIVE".
2 Select the desired value for the alarm signal (sound and/or flash) according to the table below.
Sound time: 0-3O-60-90-120-180-240-300 sec
Sound frequency: 0-0.5-1-2 signals/sec
Flash time: 0-60-120-180-240-300 sec
Flash frequency: 0-0.5-1-2-4 signals/sec

Siren
If a siren with battery back-up is fitted, this must be selected in the country code menu. The "SIREN" command, last in the programming menu is also selected "ON". Continue in Programming for Siren.


Important: The alarm horn must be disconnected when a siren with battery back-up is fitted.
