Drive Belt Tensioner: Service and Repair

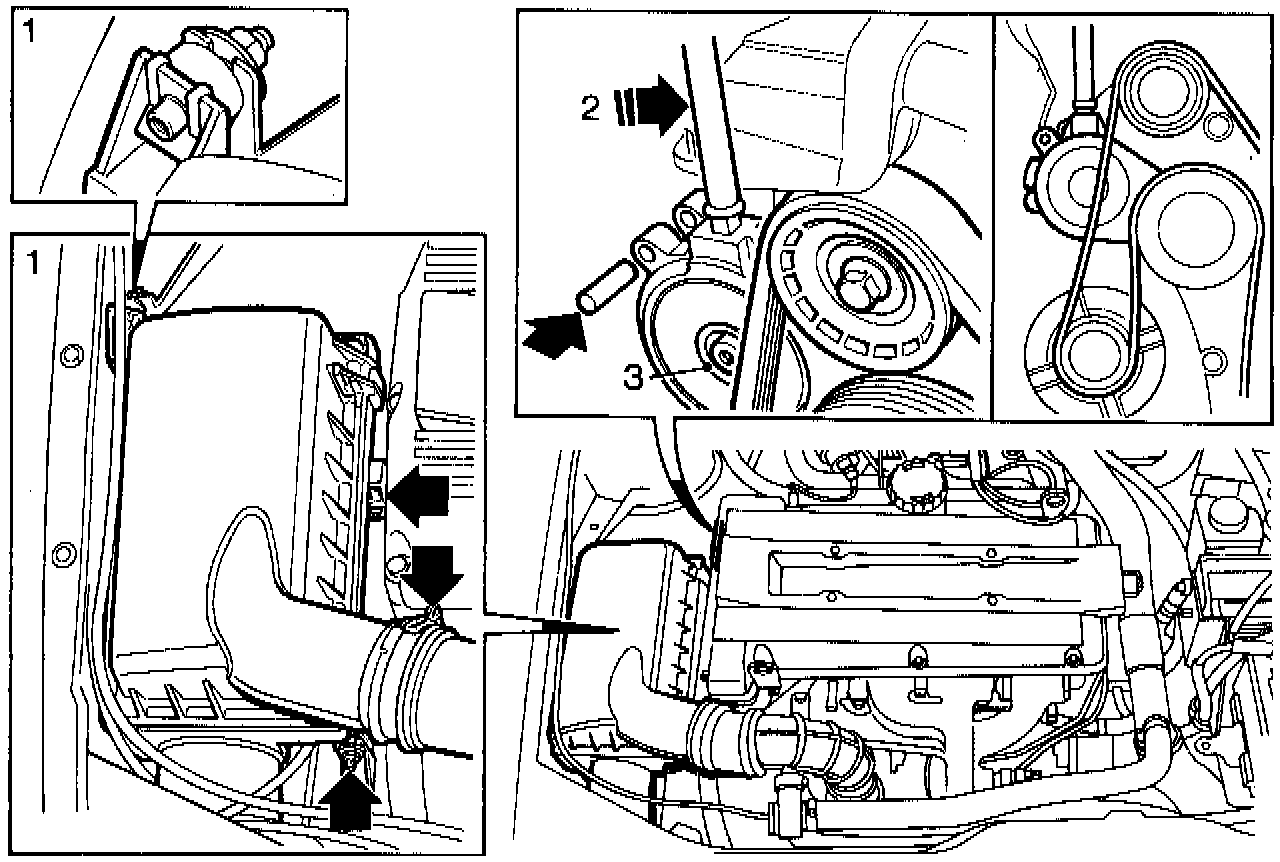

1 Remove the air cleaner and air induction hose from between the lower part of the air cleaner and the throttle body.
2 Take the strain off the belt tensioner and pry off the alternator's poly-V belt.
3 Remove the belt tensioner, using an 8 mm Allen key about 30 mm long.
Install in reverse order.
