Windshield Washer Pump: Service and Repair

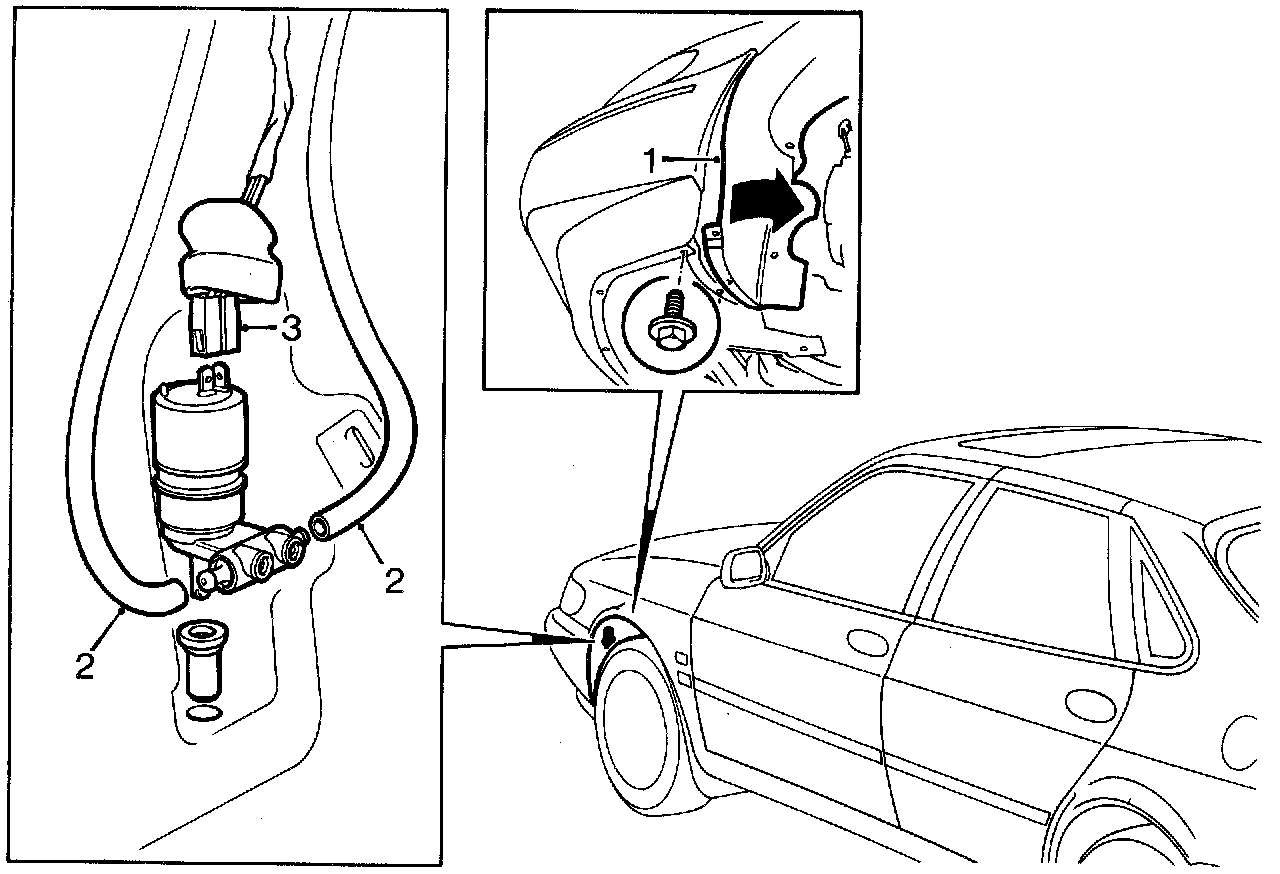

To remove
1 Raise the car, undo the wing liner (at front only) in the front left-hand wheel housing and bend it out.
2 Disconnect the hoses from the pump motor and ease up the pump to remove it from the washer fluid reservoir.
3 Unplug the connector.

To install


NOTE: When fitting a new washer pump, transfer the strainer from the old pump to the new one.


In other respects, install in reverse order.
