Windshield

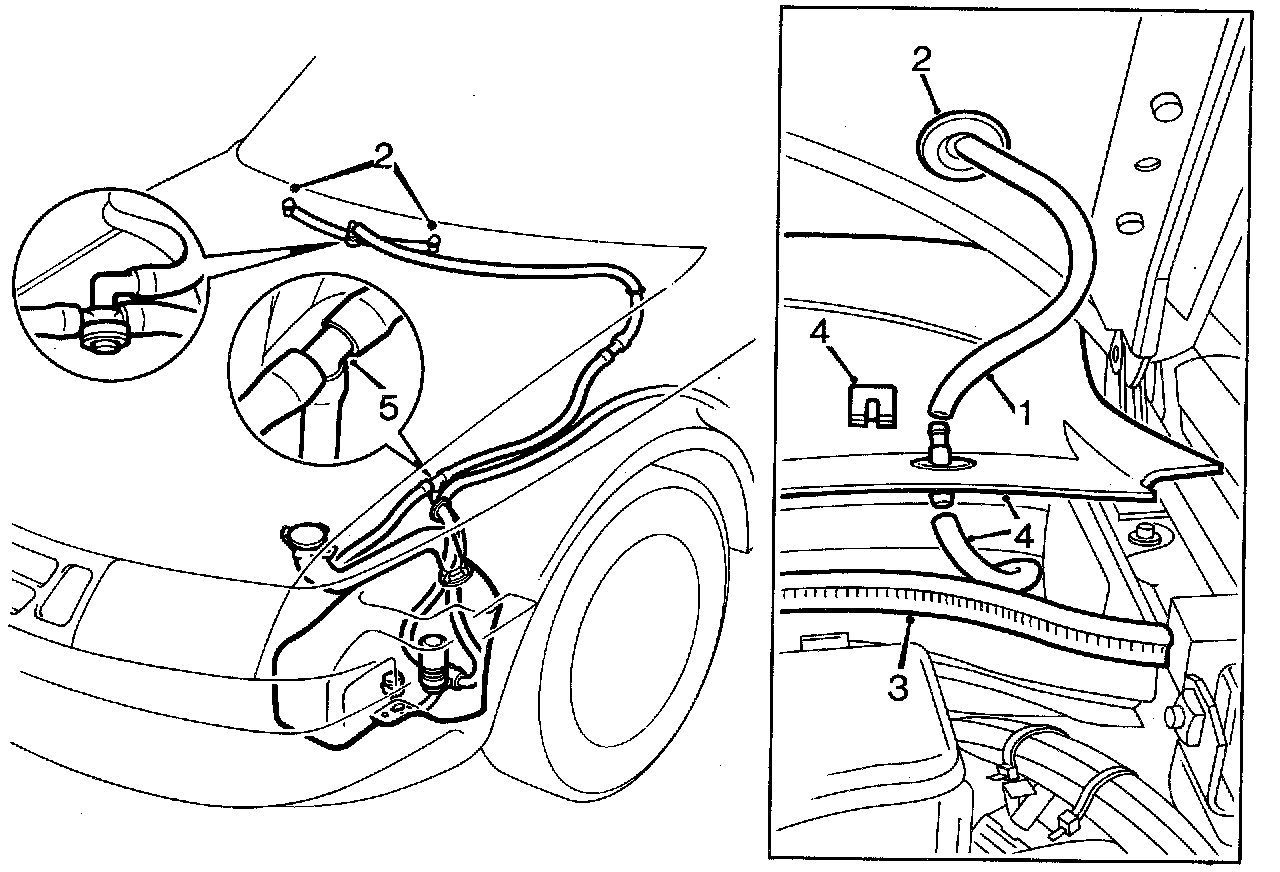

1 Open the top and disconnect the washer hose from the protective cover over the space between the bulkhead partitions.
2 Detach the hose from the nozzles on the top and withdraw the hose and rubber bushes from the top.
3 Remove the rubber sealing strip from the protective cover.
4 Remove the clip for the protective cover over the space between the bulkhead partitions.
Raise the cover slightly and detach the washer hose from the underside.
5 Pull the hose through the partition and disconnect it from the T-piece behind the battery.

Install in reverse order.
