Rear Window

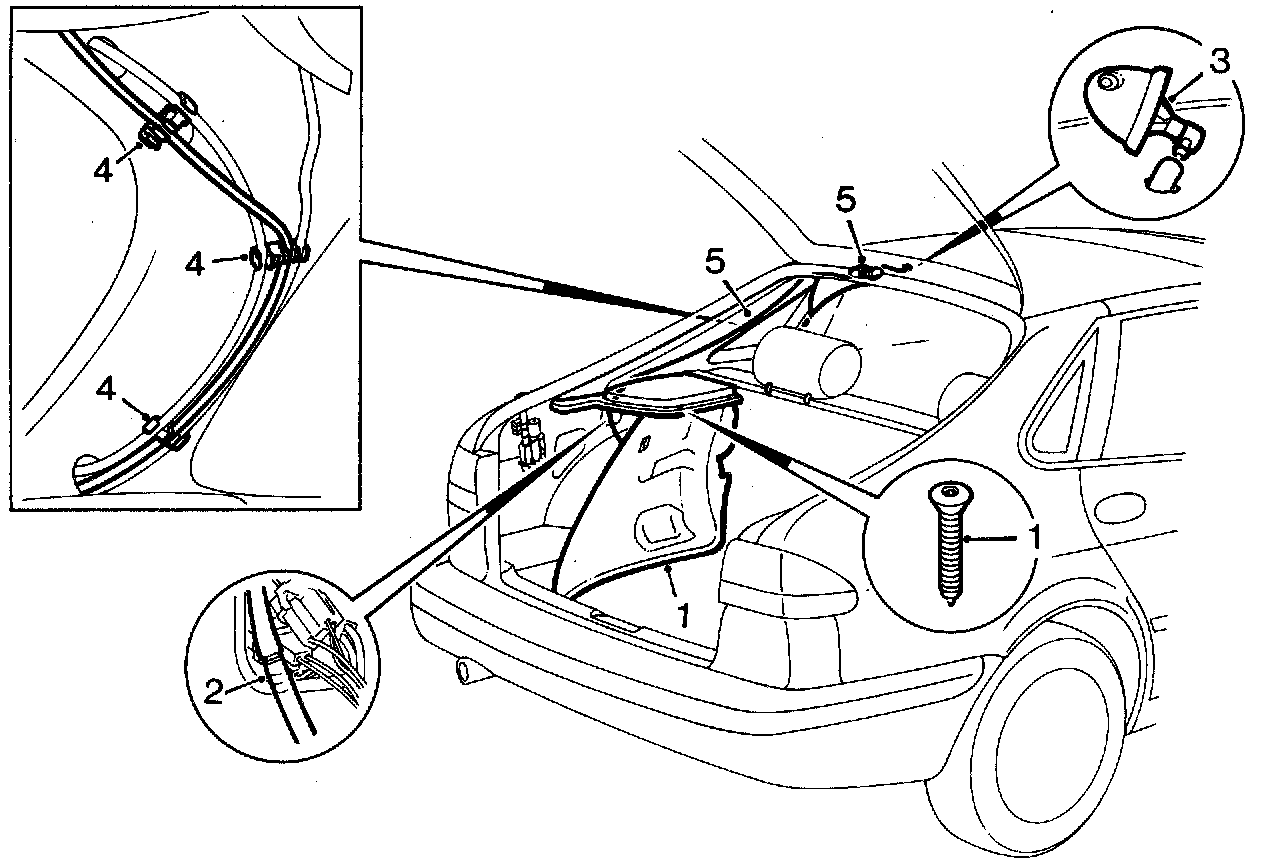

To remove
1 Remove the screws securing the speaker grille and luggage compartment side trim as well as the C-pillar trim.
2 Detach the soft hose from the hard hose.
3 Turn the washer nozzle on the tailgate a quarter-turn to remove it.
4 Remove the hose from the clips on the C pillar.
5 Remove the rubber grommet in the tailgate and withdraw the hose.

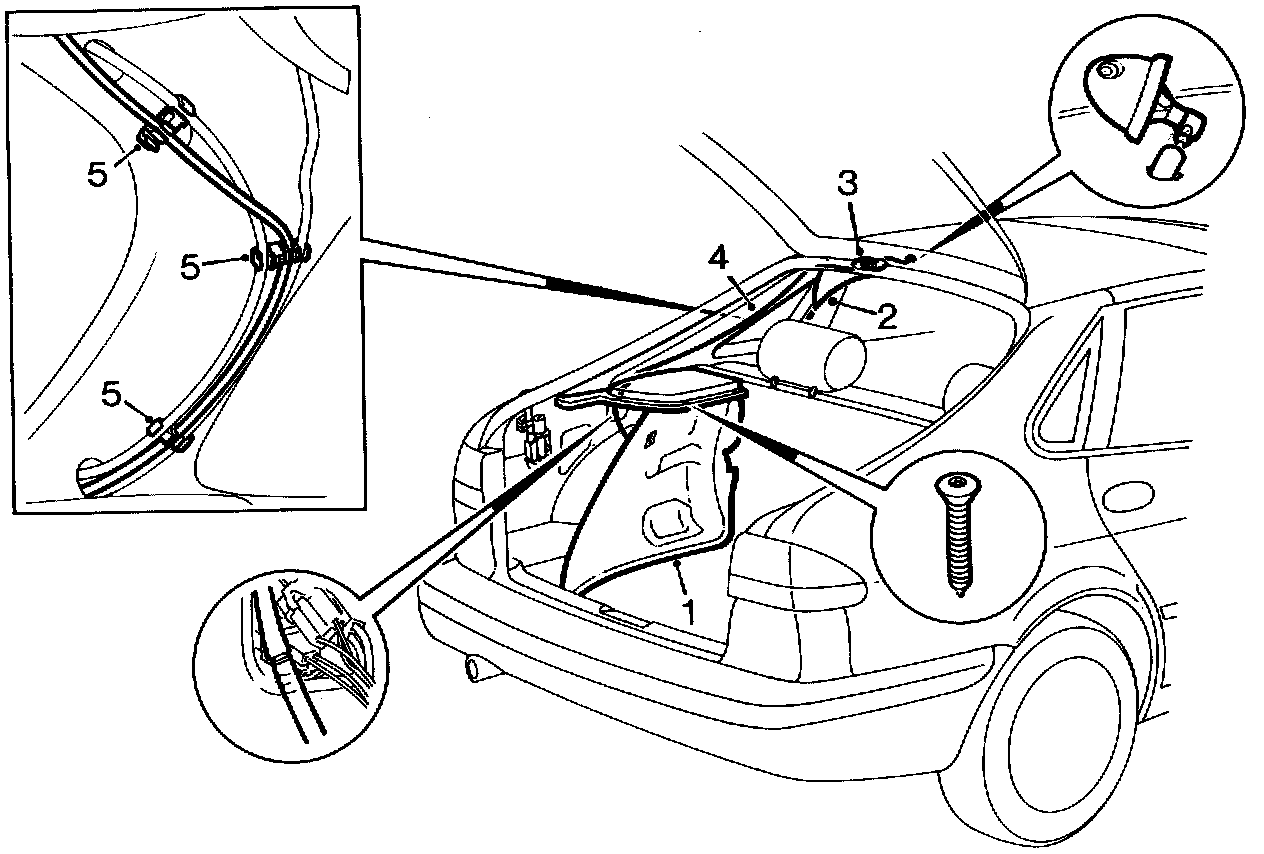

To install
1 Start by running the hose from the luggage compartment out to the tailgate.
2 insert the hose through the rear roof mounting and then out through the rubber grommet.
3 Insert the hose into the tailgate.
Use a pair of long-nose pliers to withdraw the hose and then install it onto the nozzle.
4 Make sure the hose is run neatly and evenly up to the tailgate without any tautness.
5 Install the hose in the clips on the C pillar.

Then install in reverse order.
