Windows: Locations

Electric Window Lifts: Component Location:

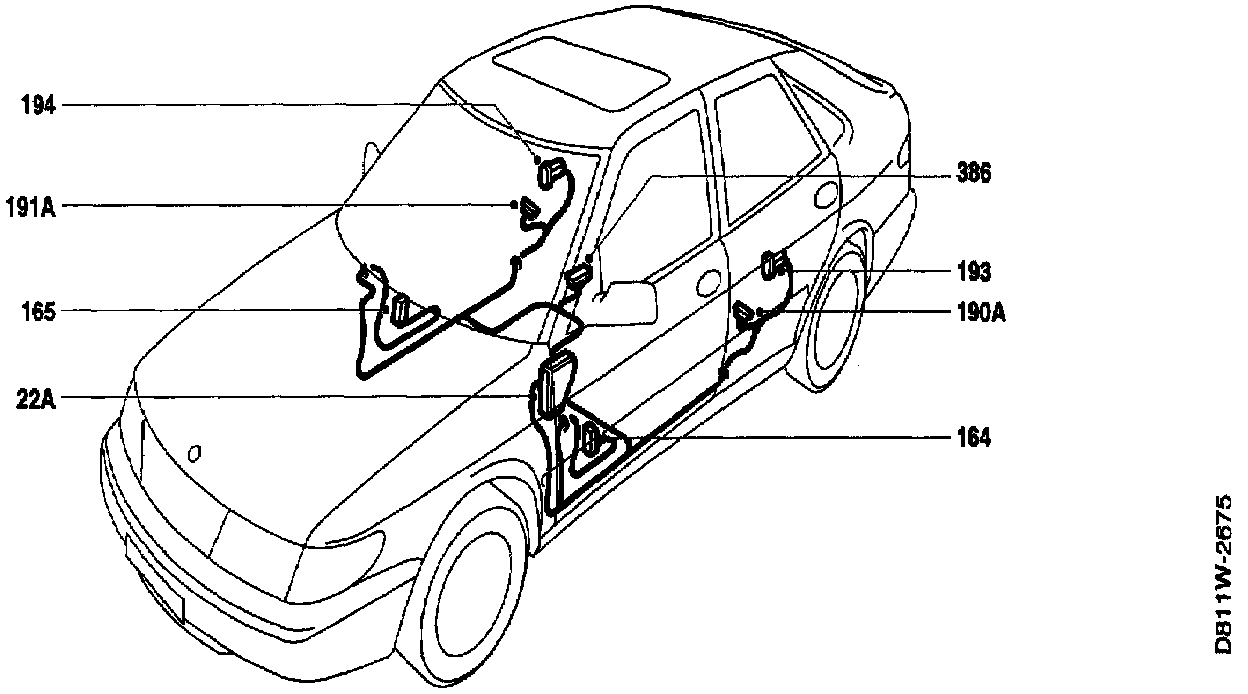

COMPONENT LOCATION VIEW

Electric Window Lifts: Component ID:

COMPONENT ID
16 Rheostat, lighting for instruments and controls, in switch assembly between steering wheel and driver's door.
22A Main fuse board in the dashboard.
164 Motor, left-hand front door electric window lift, in the left-hand front door.
165 Motor, right-hand front door electric window lift, in the right-hand front door.
190A Switch, left-hand rear door electric window lift, on the left-hand rear door.
191A Switch, right-hand rear door electric window lift, on the right-hand rear door.
193 Motor, left-hand rear door electric window lift, in the left-hand rear door.
194 Motor, right-hand rear door electric window lift, in the right-hand rear door.
386 Switch, electric window lifts/electric sunroof, on centre console between the front seats.
10-Pin Connectors
H10-6 In left-hand B pillar.
H10-7 In right-hand B pillar.
26-Pin Connectors
H26-1 Connection, driver's door, LHD
H26-2 Connection, passenger's door, LHD
H26-3 Connection, driver's door, RHD
H26-4 Connection, passenger's door, RHD
33-Pin Connectors
H33-1 Grey connector on the bracket below the left-hand A pillar.
H33-3 Blue connector on the bracket below the left-hand A pillar.
G14 Grounding point, left-hand front seat member, under the seat.
G24 Grounding point, right-hand front seat member, under the seat.
