Drive Shaft Seal - Special Tool

CATEGORY
Tools

SECTION
1

ISSUE
09/96-0711

PAGE
57

CODE
104

Subject:
New Available Tool: Protective Sleeve for Drive Shaft Seal

Application:
1994- 900 with Manual Transmission





A new special tool has been developed for use when installing or adjusting the drive shafts on a manual transmission. This tool is used to make sure the drive shaft seals in the transmission differential are not damaged or displaced.

Cars Affected:

1994- 900 with manual transmission

Parts:

Protective sleeve 83 95 162

Price: $2.75

This item is available for ordering directly from Kent-Moore at 1-800-345-2233.

Action:

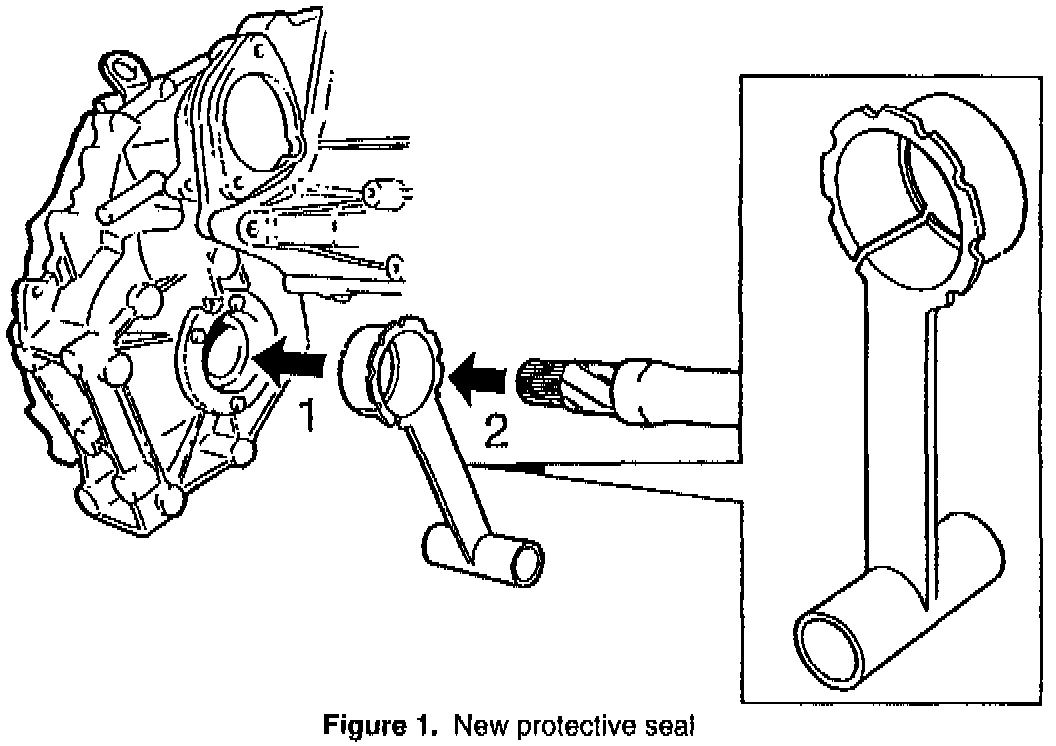

Use the tools as follows:

1. Fit the tool in the hole for the drive shaft.

2. Insert the drive shaft in the tool and press the shaft slightly into the differential housing.

3. Withdraw the tool.

4. Press the drive shaft fully home.
