Support Sleeve

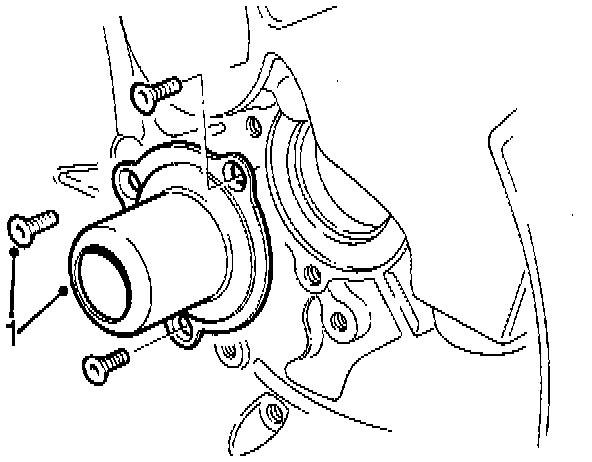

NOTE: Component identifier numbers used in the following illustrations relate to specific steps in the procedures below.





REPLACEMENT

NOTE: Precondition: clutch shaft and arm removed.

1. Remove the three screws and remove the support sleeve.
- Put the three screws in a safe place.
2. Fill the sealing ring with grease, Shell Grease LIEP II, or equivalent lubricant.
3. Install a new support sleeve.
4. Install the three screws with thread sealing agent.
Tightening torque: 10-14 Nm (84-120 inch lbs.)

CAUTION:

- Do not forget thread sealing agent on the through screws on the support sleeve.
- Risk of oil leakage.
