Home
>>
Saab
>>
1994
>>
900 Turbo Convertible L4-1985cc 2.0L DOHC Turbo EFI
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Service and Repair
>>
Unit Overhaul
>>
Servicing Transmission Components
>>
Clutch Case
>>
Sealing Ring For Selector Rod
Sealing Ring For Selector Rod
Removal
-

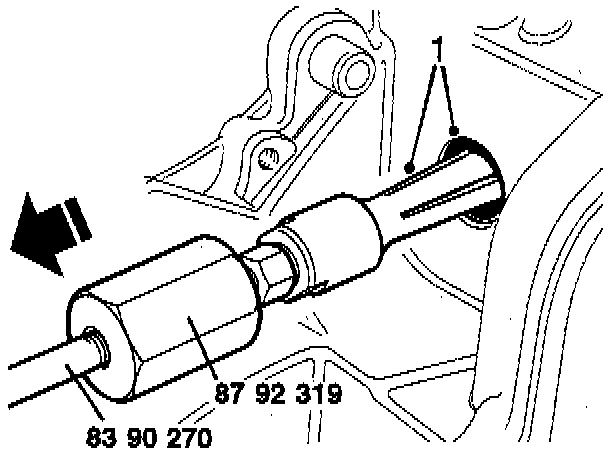

Remove selector lever and the sealing ring with slide hammer and puller tool No. 87 92 111, or equivalent.
NOTE
-

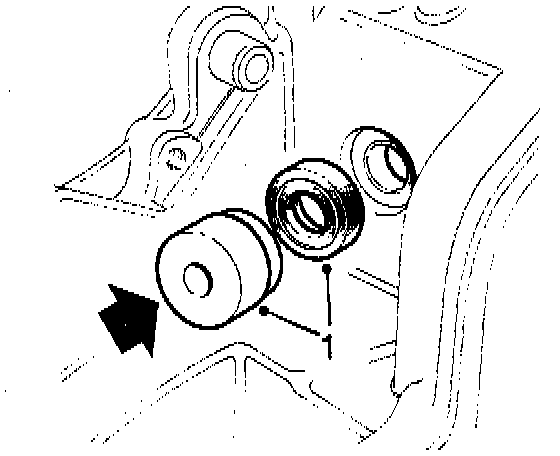

Lubricate and tap in a new sealing ring with driver tool No. 87 92 210, or equivalent.
