Clutch Arm Bush

NOTE: Component identifier numbers used in the following illustrations relate to specific steps in the procedures below.

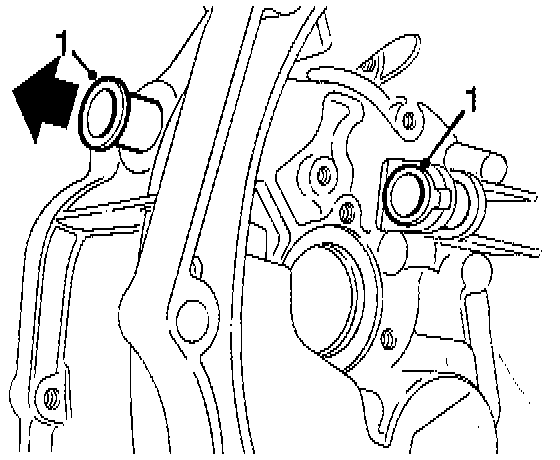

Removal
1. Remove clutch arm and shaft.
2. Carefully tap out the plastic bushes from their seats with a drift.

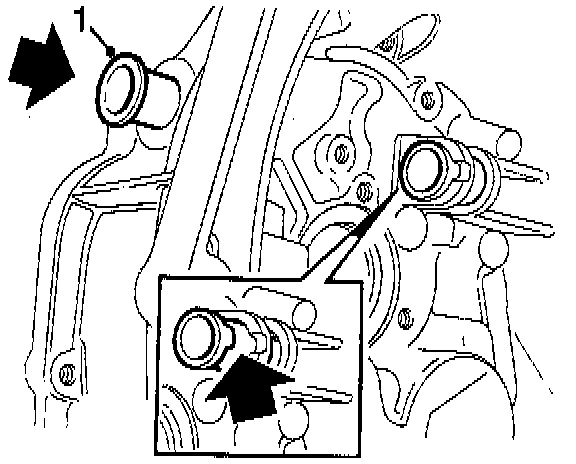

Installation
- Grease the bushes with Molycote X5-7521, or equivalent lubricant, and tap in.
- Note the position.

NOTE:

- There is an inner and an outer bush
- Both bushes have a pin which should go into a groove.
