Ring Gear: Service and Repair

Removal

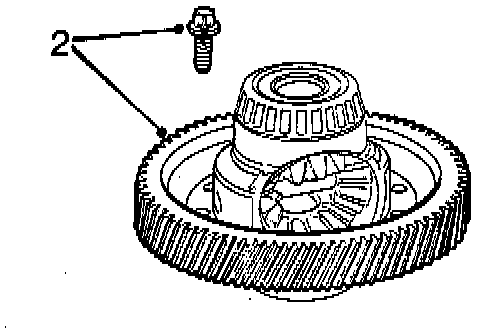

- Place the differential housing in a screw vice with jaw protectors.
- Remove the final gear wheel's screws with external torx and tap out the final gear wheel with a plastic hammer.

Installation

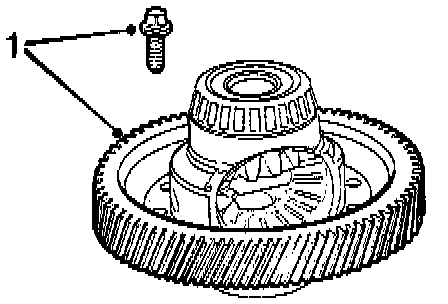

1. Before reinstalling the final gear wheel, place it in water at a temperature of 50° C for about 10 minutes.
- Tap the final gear wheel on to the differential housing with a plastic hammer.





2. Turn the final gear wheel so that the milled surface faces the flange of the differential housing.
- Install new screws and tighten alternately.
- Tightening torque: 60-70 Nm (47-55 ft. lbs.)
