Transmission Cooler: Description and Operation

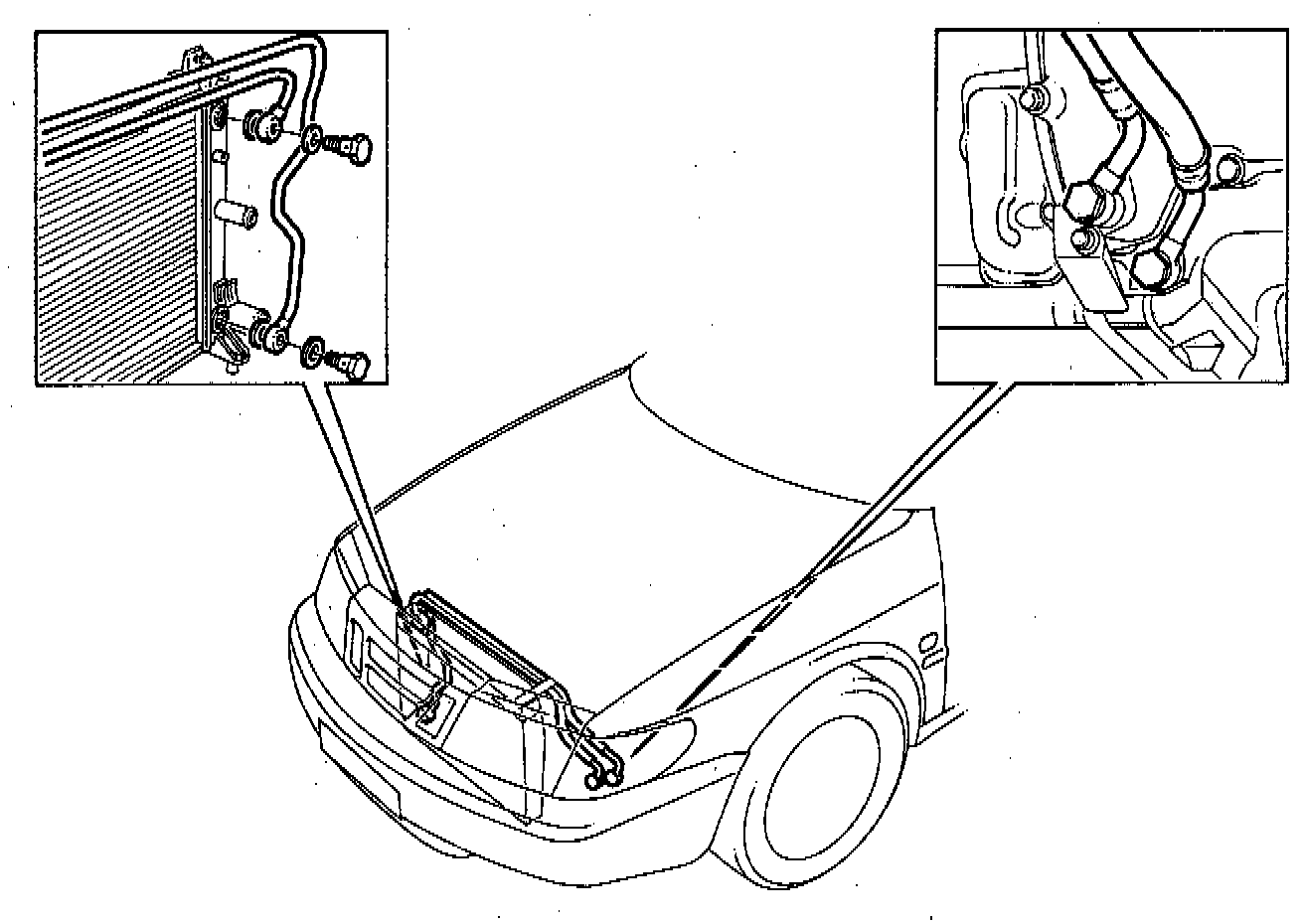

The automatic transmission is equipped with an oil cooler which is incorporated in the car's radiator, constituting a complete unit.

Fluid is circulated by the transmission fluid pump and is led, via hydraulic hoses, to the radiator and back to the transmission.
