Sport Indicator Lamp

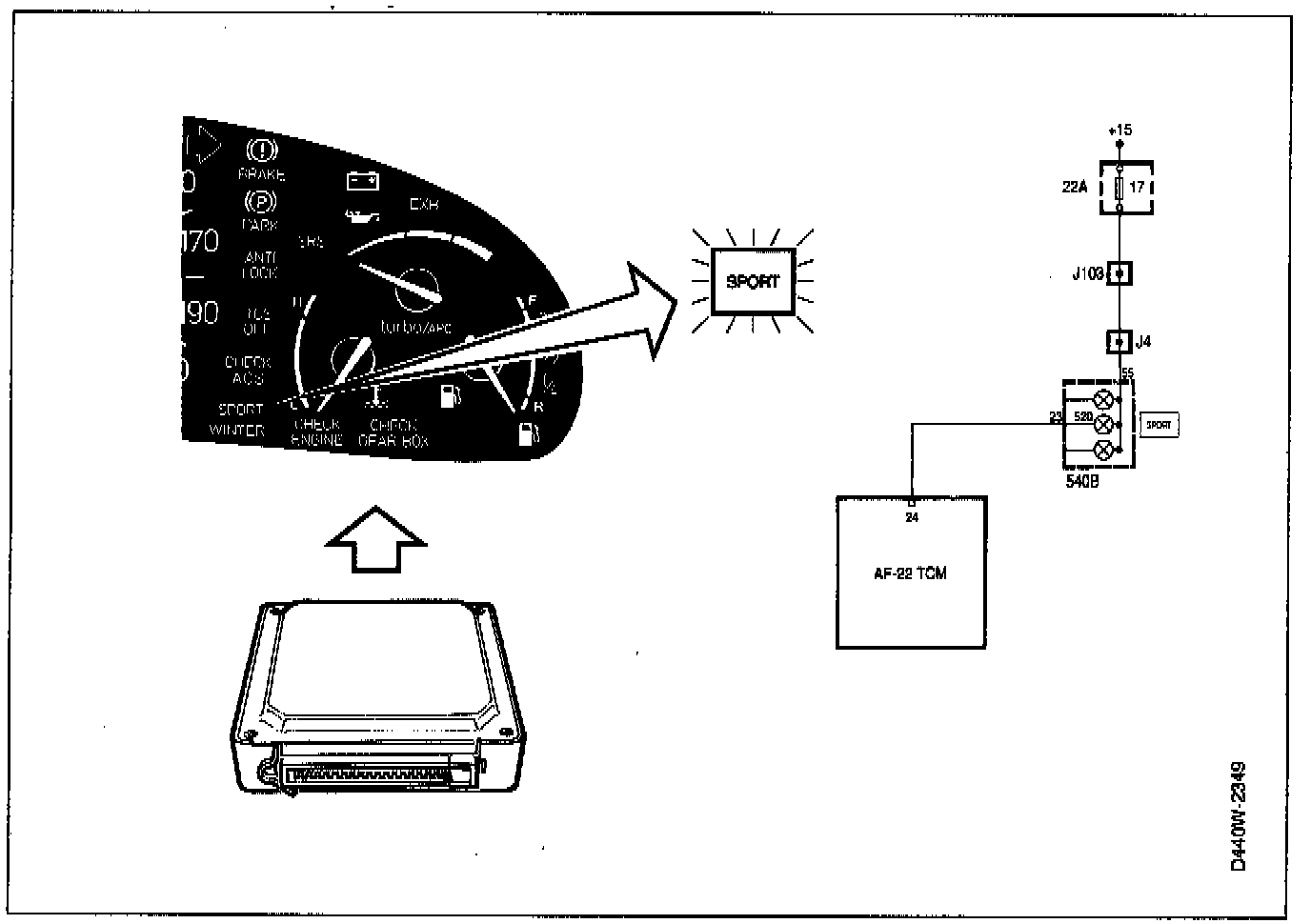

SPORT indicator lamp
When the SPORT gear shifting program is activated, the SPORT indicator lamp in the main instrument comes on.

The lamp is grounded by the TCM via pin 24 and powered via the main instrument.
