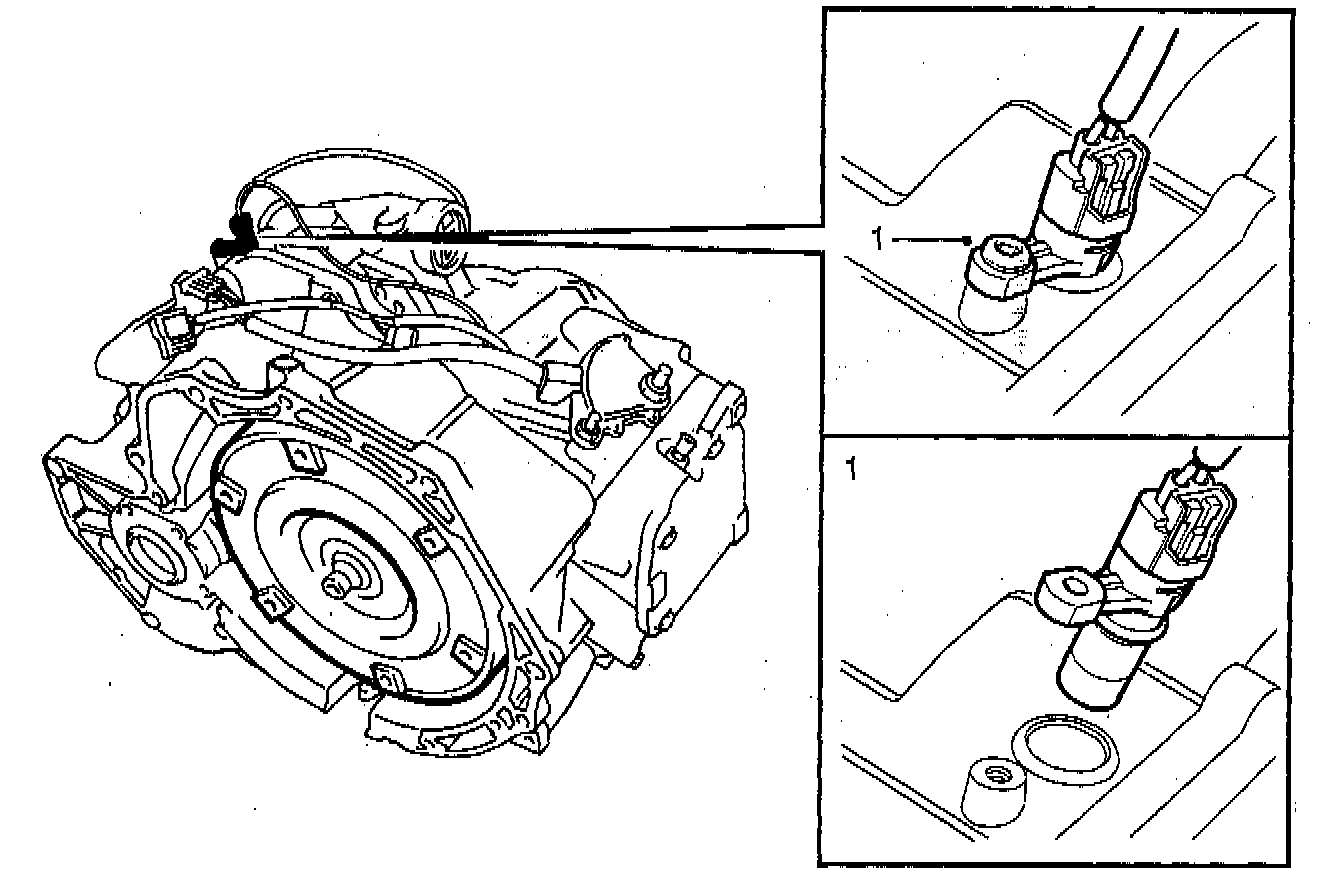

Output Shaft Speed Sensor

Removal
1. Remove the retaining screw and withdraw the sensor.
2. Unplug the sensor's electrical connector.

Installation
1. Plug in the sensor's electrical connector.
2. Install the sensor in place and tighten the retaining screw.
Tightening torque: 6 Nm (54 inch lbs.)
