Drive Shaft Seal

Removal
1. Right-hand side:
Remove the intermediate shaft.
Left-hand side:
Swing out the drive shaft.

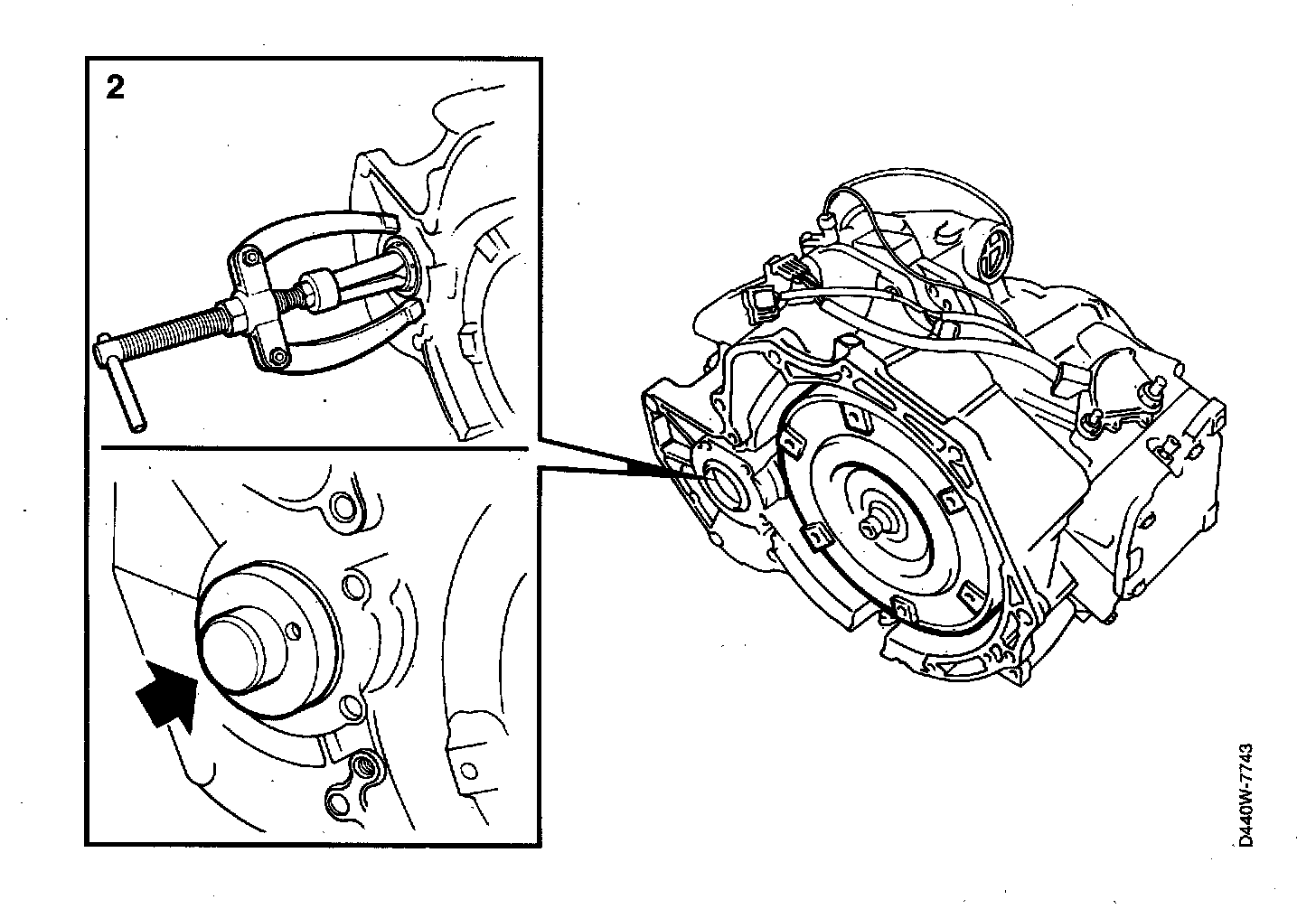

2. Remove the seal using puller 87 92 350 and support 87 91 683.

Installing
1. Install the new seal using special tool 83 90 122.
2. Right-hand side:
Install the intermediate shaft.
Left-hand side:
Refit the drive shaft.
